033 - Front Subframe and Steering Box

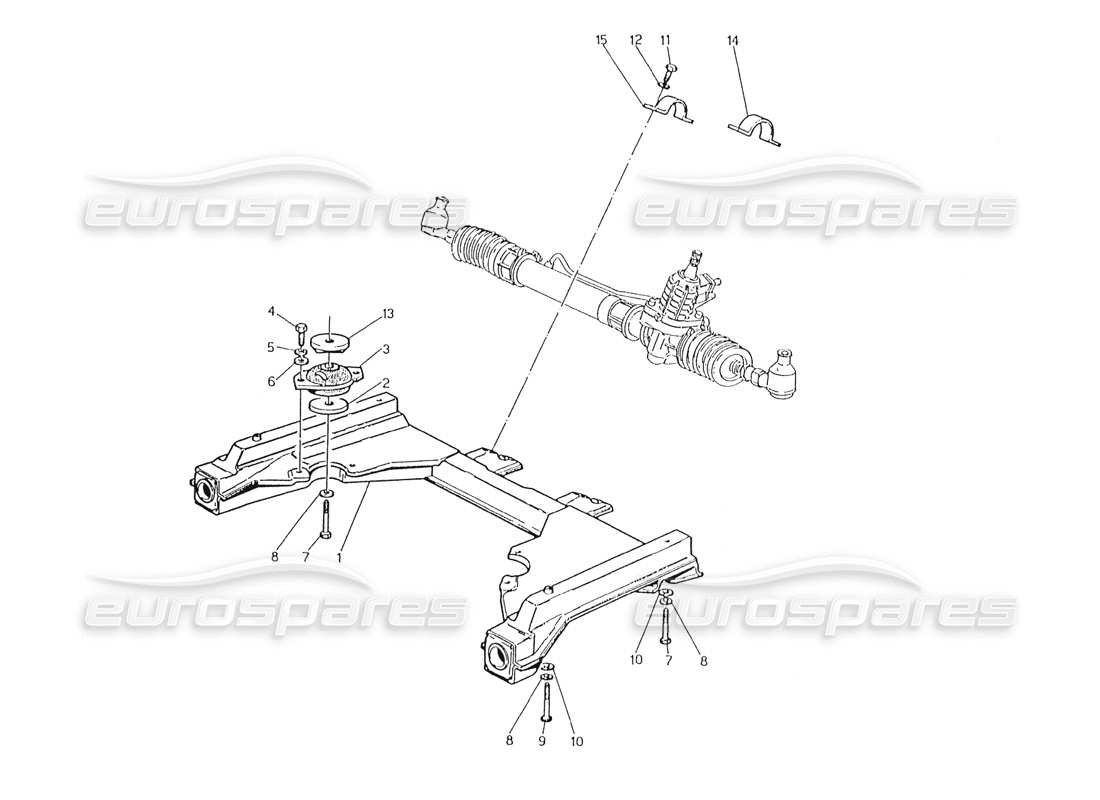

Maserati Karif 2.8 Front Subframe and Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 312750100
                        FRONT FRAME
                        Valid for Version 00 and 02
                        Supersession
                        Supersession
                        # 001
                        MPN: 362704102
                        FRONT FRAME
                        Valid for Version 20 and 24
                        from £6,354.60
                        from £6,354.60
                        This part replaces part number 312753102
                        # 002
                        MPN: 314220312
                        WASHER
                        from £2.17
                        from £2.17
                        # 003
                        MPN: 314220100
                        ENGINE SILENTBLOC
                        from £48.93
                        from £48.93
                        # 006
                        MPN: 314220314
                        WASHER
                        from £1.08
                        from £1.08
                        # 008
                        MPN: 138200120
                        SPRING WASHER
                        from £0.78
                        from £0.78
                        # 011
                        MPN: 100710035
                        SCREW
                        Valid for Version 20 and 24 - *Quantity 2 after modif.
                        # 011
                        MPN: 101210025
                        SCREW
                        Valid for Version 00 and 02 - *Quantity 4 pre modif. Quantity 2 after modif.
                        # 013
                        MPN: 316220312
                        WASHER
                        from £1.08
                        from £1.08
                        # 014
                        MPN: 327856343
                        LH RETAINER
                        Valid for Version 00 and 02
                        from £1.55
                        from £1.55
                        # 014
                        MPN: 327870345
                        RH RETAINER
                        Valid for Version 20 and 24
                        from £0.70
                        from £0.70
                        # 015
                        MPN: 327856344
                        RETAINER (SEE NOTE)
                        RH retainer / LH retainer
                        from £1.93
                        from £1.93
                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
