028 - Transmission - Main Shaft

Maserati Karif 2.8 Transmission - Main Shaft Parts Diagram

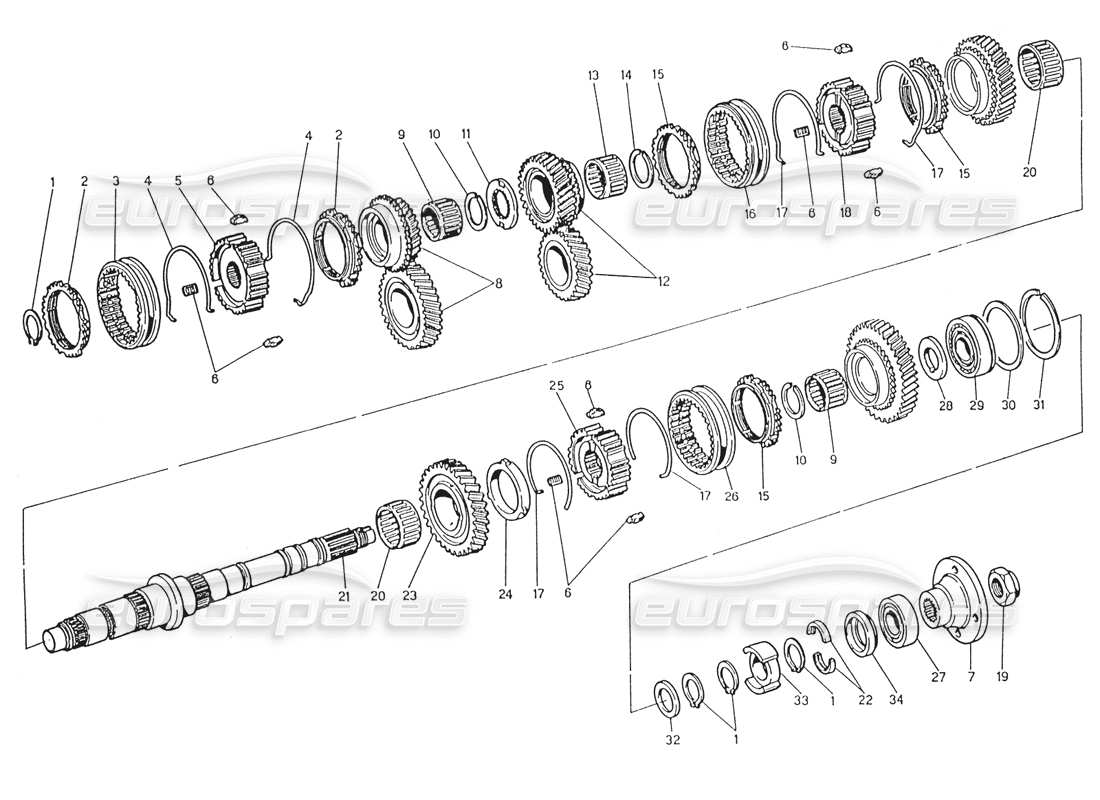

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 315020301
                                                                    RETAINING RING (1,8)
                                                                    from £2.31
                                                                    from £2.31
                                                                    # 001
                                                                    MPN: 315020302
                                                                    RETAINING RING (1,9)
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 001
                                                                    MPN: 315020303
                                                                    RETAINING RING (2)
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 002
                                                                    MPN: 315020470
                                                                    SYNCHRONIZING GEAR
                                                                    from £35.01
                                                                    from £35.01
                                                                    # 003
                                                                    MPN: 315020306
                                                                    SLEEVE
                                                                    from £63.97
                                                                    from £63.97
                                                                    # 004
                                                                    MPN: 315020305
                                                                    SPRING
                                                                    from £1.41
                                                                    from £1.41
                                                                    # 005
                                                                    MPN: 315020312
                                                                    SYNCHRONIZING GEAR
                                                                    from £28.96
                                                                    from £28.96
                                                                    # 006
                                                                    MPN: 315020311
                                                                    BRACE
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 007
                                                                    MPN: 315020315
                                                                    FLANGE
                                                                    from £47.91
                                                                    from £47.91
                                                                    # 008
                                                                    MPN: 315020003
                                                                    5TH GEAR SET
                                                                    Valid for Version 02 and 20 and 24
                                                                    from £219.06
                                                                    from £219.06
                                                                    # 008
                                                                    MPN: 315020004
                                                                    5TH GEAR SET
                                                                    Valid for Versions 00 and 02 and 20 and 24
                                                                    from £136.39
                                                                    from £136.39
                                                                    # 009
                                                                    MPN: 315020100
                                                                    BEARING
                                                                    from £3.59
                                                                    from £3.59
                                                                    # 010
                                                                    MPN: 315020347
                                                                    RETAINING RING (2,0)
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 010
                                                                    MPN: 315020348
                                                                    RETAINING RING (1,9)
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 010
                                                                    MPN: 315020349
                                                                    RETAINING RING (1,8 )
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 011
                                                                    MPN: 315020319
                                                                    WASHER
                                                                    from £9.28
                                                                    from £9.28
                                                                    # 012
                                                                    MPN: 315020005
                                                                    3RD GEAR SET
                                                                    from £128.65
                                                                    from £128.65
                                                                    # 013
                                                                    MPN: 315020102
                                                                    BEARING
                                                                    from £6.34
                                                                    from £6.34
                                                                    # 014
                                                                    MPN: 315020354
                                                                    RETAINING RING 2,0
                                                                    from £1.55
                                                                    from £1.55
                                                                    # 014
                                                                    MPN: 315020355
                                                                    RETAINING RING 1,9
                                                                    from £1.55
                                                                    from £1.55
                                                                    # 014
                                                                    MPN: 315020356
                                                                    RETAINING RING 1,8
                                                                    from £1.55
                                                                    from £1.55
                                                                    # 015
                                                                    MPN: 315020321
                                                                    SYNCHRONIZING RING
                                                                    from £288.66
                                                                    from £288.66
                                                                    # 016
                                                                    MPN: 315020322
                                                                    2ND AND 3RD SLEEVE
                                                                    from £198.72
                                                                    from £198.72
                                                                    # 017
                                                                    MPN: 315020326
                                                                    SYNCHRONIZING SPRING
                                                                    from £1.77
                                                                    from £1.77
                                                                    # 018
                                                                    MPN: 315020327
                                                                    SYNCHRONIZING GEAR
                                                                    from £28.27
                                                                    from £28.27
                                                                    # 019
                                                                    MPN: 315020325
                                                                    NUT
                                                                    from £40.95
                                                                    from £40.95
                                                                    # 020
                                                                    MPN: 315020105
                                                                    BEARING
                                                                    from £15.29
                                                                    from £15.29
                                                                    # 021
                                                                    MPN: 315020329
                                                                    Main Shaft
                                                                    from £260.84
                                                                    from £260.84
                                                                    # 022
                                                                    MPN: 315020331
                                                                    RING
                                                                    from £11.82
                                                                    from £11.82
                                                                    # 023
                                                                    MPN: 315020337
                                                                    GEAR
                                                                    from £206.61
                                                                    from £206.61
                                                                    # 024
                                                                    MPN: 315020333
                                                                    GUIDE RING
                                                                    from £12.21
                                                                    from £12.21
                                                                    # 025
                                                                    MPN: 315020338
                                                                    REVERSE AND 1ST SYNCHRONIZING
                                                                    from £202.98
                                                                    from £202.98
                                                                    # 026
                                                                    MPN: 315020335
                                                                    REVERSE AND 1ST SLEEVE
                                                                    from £194.54
                                                                    from £194.54
                                                                    # 027
                                                                    MPN: 315020106
                                                                    BEARING
                                                                    from £30.79
                                                                    from £30.79
                                                                    # 028
                                                                    MPN: 315020336
                                                                    WASHER
                                                                    from £9.28
                                                                    from £9.28
                                                                    # 029
                                                                    MPN: 315020110
                                                                    BEARING
                                                                    from £41.28
                                                                    from £41.28
                                                                    # 030
                                                                    MPN: 315020360
                                                                    WASHER 1,4
                                                                    from £3.17
                                                                    from £3.17
                                                                    # 030
                                                                    MPN: 315020361
                                                                    WASHER 1,2
                                                                    from £3.56
                                                                    from £3.56
                                                                    # 030
                                                                    MPN: 315020362
                                                                    WASHER 1,0
                                                                    from £3.56
                                                                    from £3.56
                                                                    # 030
                                                                    MPN: 315020363
                                                                    Washer 0 8
                                                                    from £3.17
                                                                    from £3.17
                                                                    # 030
                                                                    MPN: 315020364
                                                                    WASHER 0,6
                                                                    from £3.17
                                                                    from £3.17
                                                                    # 031
                                                                    MPN: 315020341
                                                                    SPRING
                                                                    from £1.55
                                                                    from £1.55
                                                                    # 032
                                                                    MPN: 315020370
                                                                    THRUST RING (3,5)
                                                                    from £12.75
                                                                    from £12.75
                                                                    # 032
                                                                    MPN: 315020371
                                                                    THRUST RING (3,4)
                                                                    from £12.75
                                                                    from £12.75
                                                                    # 032
                                                                    MPN: 315020372
                                                                    THRUST RING (3,2)
                                                                    from £12.75
                                                                    from £12.75
                                                                    # 032
                                                                    MPN: 315020373
                                                                    THRUST RING (3,0)
                                                                    from £12.75
                                                                    from £12.75
                                                                    # 032
                                                                    MPN: 315020374
                                                                    THRUST RING (3,3)
                                                                    from £12.75
                                                                    from £12.75
                                                                    # 032
                                                                    MPN: 315020375
                                                                    THRUST RING (3,1)
                                                                    from £12.75
                                                                    from £12.75
                                                                    # 033
                                                                    MPN: 315020344
                                                                    SLEEVE
                                                                    from £2.68
                                                                    from £2.68
                                                                    # 034
                                                                    MPN: 315020345
                                                                    SEAL RING
                                                                    from £18.47
                                                                    from £18.47
