Maserati Karif 2.8 Marelli Starter Motor Parts Diagram

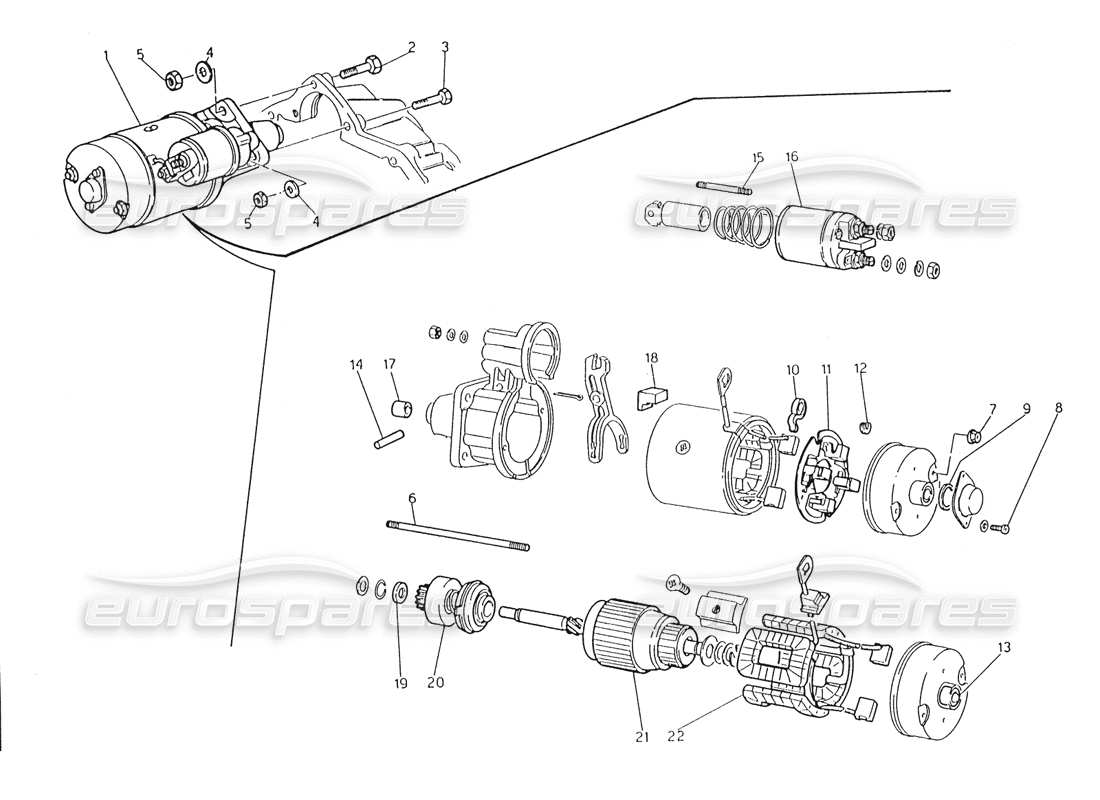

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 571082400
                                              STARTER MOTOR, ASSY
                                              from £379.40
                                              from £379.40
                                              This part replaces part number 313453201
                                              # 002
                                              MPN: 313420300
                                              SCREW
                                              from £3.17
                                              from £3.17
                                              # 006
                                              MPN: 313420401
                                              TIE-ROD
                                              # 007
                                              MPN: 313420402
                                              SAG-LOCKING NUT
                                              # 008
                                              MPN: 313420403
                                              SCREW
                                              # 009
                                              MPN: 313420404
                                              GASKET
                                              from £0.70
                                              from £0.70
                                              # 010
                                              MPN: 313420405
                                              SPRING
                                              # 011
                                              MPN: 313420202
                                              BRUSH HOLDING PLATE
                                              from £11.43
                                              from £11.43
                                              # 012
                                              MPN: 313420406
                                              GUARD
                                              # 013
                                              MPN: 313420407
                                              BUSH
                                              from £1.93
                                              from £1.93
                                              # 014
                                              MPN: 313420408
                                              Lover pin
                                              # 015
                                              MPN: 313420409
                                              TIE-ROD
                                              # 016
                                              MPN: 313420203
                                              SOLENOID
                                              from £16.69
                                              from £16.69
                                              # 017
                                              MPN: 313420410
                                              BUSH (PINION SIDE)
                                              from £1.55
                                              from £1.55
                                              # 018
                                              MPN: 313420411
                                              PLUG FOR SUPPORT (PINION SIDE)
                                              # 019
                                              MPN: 313420412
                                              RETAINING RING
                                              # 020
                                              MPN: 313420204
                                              PINION AND BARREL
                                              from £26.51
                                              from £26.51
                                              # 021
                                              MPN: 313420205
                                              ARMATURE
                                              from £79.82
                                              from £79.82
                                              # 022
                                              MPN: 313420206
                                              COIL WITH BRUSHES
                                              from £65.61
                                              from £65.61
