maserati karif 2.8 air conditioning system lh steering (pro modif.) parts diagram

018 - Air Conditioning System LH Steering (Pro Modif.)

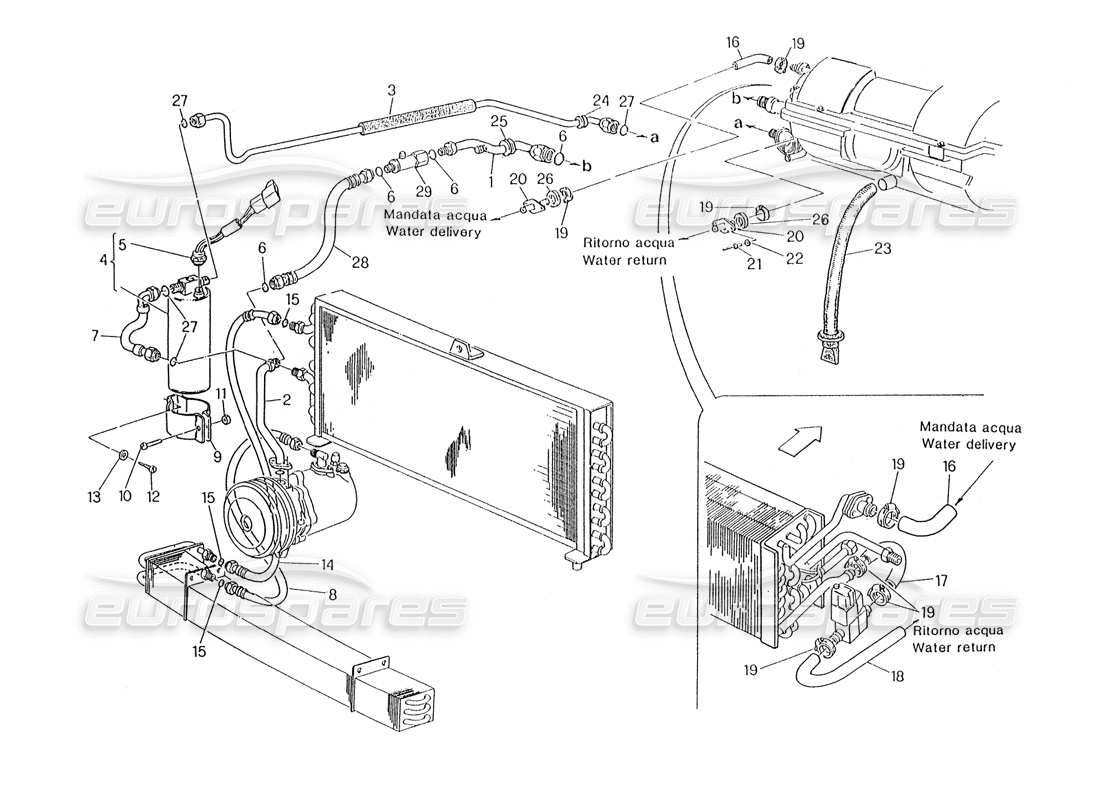

Maserati Karif 2.8 Air Conditioning System L.H. Steering (Pro Modif.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 315520211
    UPPER FREON RETURN LINE
    Valid for Version 00 and 02
    Supersession
    Supersession
    This part replaces part number 315522202
    # 002
    MPN: 345500185
    FREON RETURN LINE
    Valid for Version 00 and 02
    Supersession
    Supersession
    # 003
    MPN: 315521182
    FREON DELIVERY LINE
    Valid for Version 00 and 02
    from £10.01
    from £10.01
    # 004
    MPN: 365502174
    FREON FILTER
    from £103.98
    from £103.98
    This part replaces part number 315520174
    # 005
    MPN: 315520175
    MAX. AND MIN. CAPACITY PRESSURE SWITCH
    Valid for Version 00 and 02
    Supersession
    Supersession
    # 006
    MPN: 315520445
    O-RING 1/2 FREON LINE
    Valid for Version 00 and 02
    from £0.70
    from £0.70
    # 007
    MPN: 315521181
    FREON DELIVERY LINE
    Valid for Version 00 and 02
    Supersession
    Supersession
    # 008
    MPN: 315521179
    FREON DELIVERY LINE
    Valid for Version 00 and 02
    from £25.50
    from £25.50
    # 009
    MPN: 315520301
    CLAMP
    Valid for Version 00 and 02
    from £17.15
    from £17.15
    # 010
    MPN: 101206025
    SCREW
    Valid for Version 00 and 02
    # 011
    MPN: 128300060
    NUT
    Valid for Version 00 and 02
    Supersession
    Supersession
    # 012
    MPN: 119148160
    SCREW
    Valid for Version 00 and 02
    # 013
    MPN: 169020005
    SCREW
    Valid for Version 00 and 02
    from £1.08
    from £1.08
    # 014
    MPN: 315521180
    FREON DELIVERY LINE
    Valid for Version 00 and 02
    from £7.55
    from £7.55
    # 015
    MPN: 315520444
    O-RING 5/8 FREON LINE
    Valid for Version 00 and 02
    from £0.70
    from £0.70
    # 016
    MPN: 315520479
    WATER LINE
    Valid for Version 00 and 02
    from £8.17
    from £8.17
    # 017
    MPN: 315520480
    WATER LINE
    Valid for Version 00 and 02
    from £2.04
    from £2.04
    # 018
    MPN: 315520481
    WATER LINE
    Valid for Version 00 and 02
    from £7.82
    from £7.82
    # 019
    MPN: 186402028
    CLAMP
    Valid for Version 00 and 02
    from £1.55
    from £1.55
    # 020
    MPN: 315520370
    CONNECTION
    Valid for Version 00 and 02
    from £0.71
    from £0.71
    # 021
    MPN: 164323413
    POP RIVET
    Valid for Version 00 and 02
    # 022
    MPN: 169020005
    WASHER
    Valid for Version 00 and 02
    from £1.08
    from £1.08
    # 023
    MPN: 315520017
    EXHAUST LINE
    Valid for Version 00 and 02
    from £1.77
    from £1.77
    # 024
    MPN: 31331303
    GROMMET
    Valid for Version 00 and 02
    from £1.05
    from £1.05
    # 025
    MPN: 315520371
    GROMMET
    Valid for Version 00 and 02
    from £0.64
    from £0.64
    # 026
    MPN: 315520372
    GASKET
    Valid for Version 00 and 02
    from £0.70
    from £0.70
    # 027
    MPN: 315520443
    O-RING 3/8 FREON LINE
    Valid for Version 00 and 02
    from £1.05
    from £1.05
    # 028
    MPN: 315520212
    FREON RETURN LINE
    Valid for Version 00 and 02
    # 029
    MPN: 315520186
    VALVE
    Valid for Version 00 and 02
