maserati karif 2.8 radiator and cooling tans parts diagram

014 - Radiator and Cooling Tans

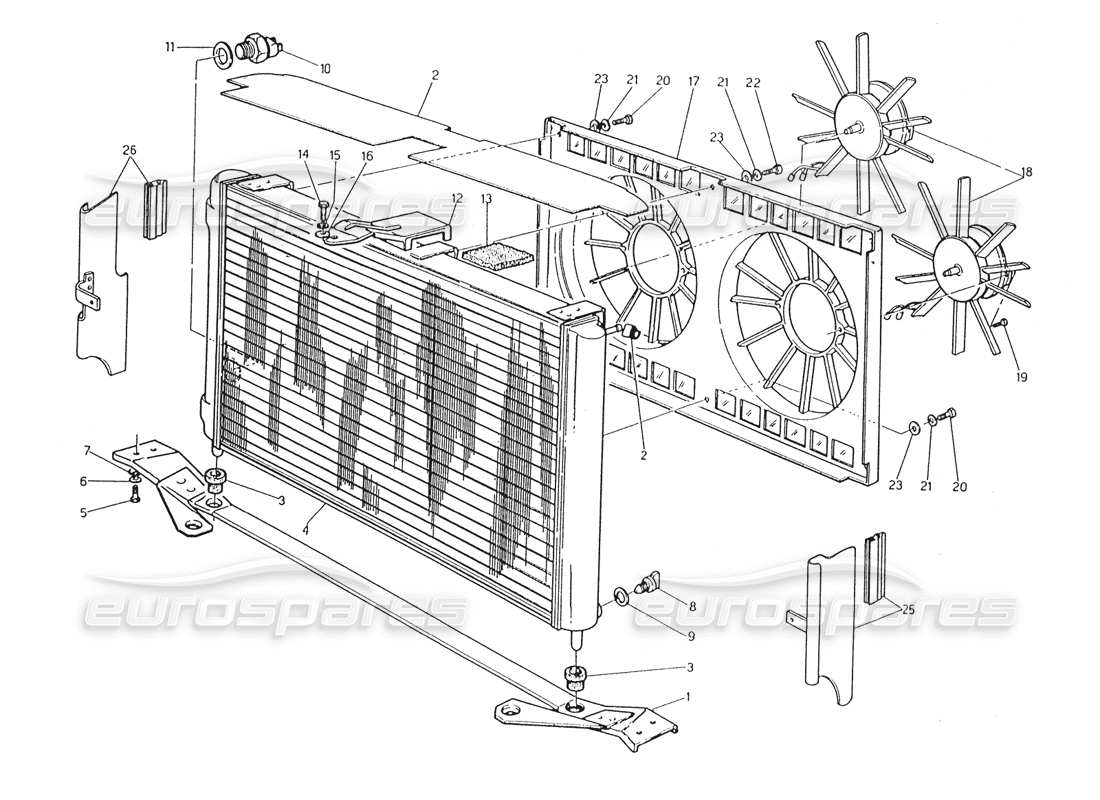

Maserati Karif 2.8 Radiator and Cooling Tans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 314053108
                                                      SUPPORT AFTER MODIF.
                                                      from £32.51
                                                      from £32.51
                                                      This part replaces part number 314020103 - and 1 more. Click to view details
                                                      # 001
                                                      MPN: 324056101
                                                      SUPPORT PRE MODIF.
                                                      Supersession
                                                      Supersession
                                                      # 002
                                                      MPN: 314037360
                                                      CONVEYOR
                                                      from £24.44
                                                      from £24.44
                                                      This part replaces part number 314053018 - and 2 more. Click to view details
                                                      # 002
                                                      MPN: 324056018
                                                      CONVEYOR AFTER MODIF.
                                                      Supersession
                                                      Supersession
                                                      # 003
                                                      MPN: 189453
                                                      BUSH
                                                      from £1.08
                                                      from £1.08
                                                      This part replaces part number 374030312
                                                      # 004
                                                      MPN: 314037100
                                                      WATER RADIATOR (COPPER)
                                                      from £646.00
                                                      from £646.00
                                                      # 004
                                                      MPN: 344001100
                                                      WATER RADIATOR (ALUMINIUM)
                                                      from £321.48
                                                      from £321.48
                                                      # 007
                                                      MPN: 163020080
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 008
                                                      MPN: 314037326
                                                      DRAIN COCK
                                                      from £10.09
                                                      from £10.09
                                                      # 009
                                                      MPN: 314020327
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 010
                                                      MPN: 313320172
                                                      SWITCH
                                                      from £2.20
                                                      from £2.20
                                                      # 011
                                                      MPN: 53331300
                                                      SWITCH WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 012
                                                      MPN: 314037106
                                                      UPPER RETAINER PRE MODIF.
                                                      from £3.26
                                                      from £3.26
                                                      This part replaces part number 324056106
                                                      # 012
                                                      MPN: 324056106
                                                      UPPER RETAINER AFTER MODIF
                                                      Supersession
                                                      Supersession
                                                      # 013
                                                      MPN: 314037308
                                                      BUFFER PRE MODIF.
                                                      from £9.70
                                                      from £9.70
                                                      This part replaces part number 324056308
                                                      # 013
                                                      MPN: 324056308
                                                      Buffer after modif.
                                                      Supersession
                                                      Supersession
                                                      # 017
                                                      MPN: 313354105
                                                      FAN BLADE SHROUD, ASSY AFTER MODIF.
                                                      from £211.32
                                                      from £211.32
                                                      This part replaces part number 323356105
                                                      # 017
                                                      MPN: 323356105
                                                      FAN BLADE SHROUD, ASSY PRE MODIF.
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 313330105 - and 1 more. Click to view details
                                                      # 018
                                                      MPN: 313354102
                                                      ELECTRIC FAN MOTOR WITH FAN AFTER MODIF.
                                                      Supersession
                                                      Supersession
                                                      # 018
                                                      MPN: 323332102
                                                      ELECTRIC FAN MOTOR WITH FAN PRE MODIF.
                                                      from £51.60
                                                      from £51.60
                                                      # 023
                                                      MPN: 169020406
                                                      WASHER
                                                      from £0.78
                                                      from £0.78
                                                      # 024
                                                      MPN: 313320333
                                                      SPRING CLAMP
                                                      from £0.70
                                                      from £0.70
                                                      # 025
                                                      MPN: 324050128
                                                      LH SIDE BULKHEAD, ASSY
                                                      from £54.55
                                                      from £54.55
                                                      # 026
                                                      MPN: 324050129
                                                      RH SIDE BULKHEAD, ASSY
                                                      from £60.68
                                                      from £60.68
