012 - Split Exhaust System Without Catalys Paint (2800 C.C.)

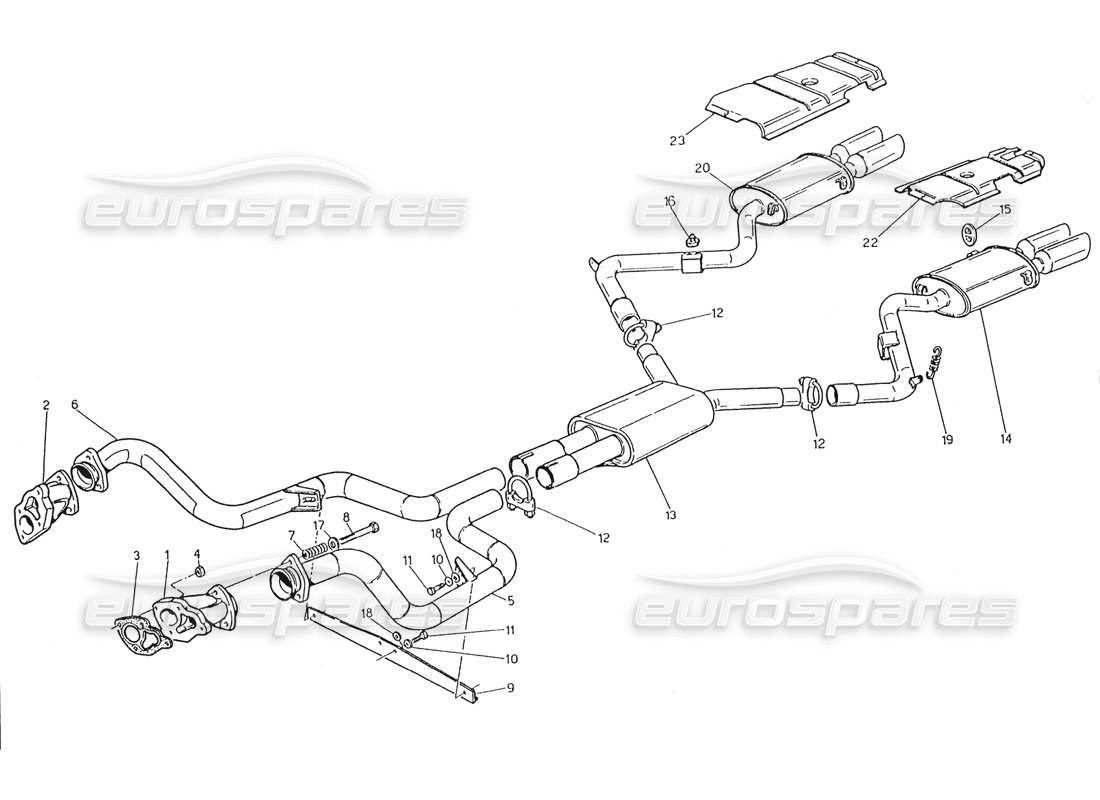

Maserati Karif 2.8 Split Exhaust System Without Catalys Paint (2800 C.C.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 342000201
LH MANIFOLD
Valid for Version 00 and 20
# 002
MPN: 467361801
RH MANIFOLD
Valid for Version 00 and 20
from £98.97
from £98.97
# 003
MPN: 580362400
GASKET
Valid for Version 00 and 20
from £9.45
from £9.45
This part replaces part number 342000303
# 004
MPN: 312020309
NUT
Valid for Version 00 and 20
# 005
MPN: 329071101
LH FRONT TUBE AFTER MOD.
Valid for Version 00 and 20
from £21.91
from £21.91
# 005
MPN: 349000101
LH FRONT TUBE PRE MOD.
Valid for Version 00 and 20
from £20.01
from £20.01
# 006
MPN: 329071102
RH FRONT TUBE AFTER MOD.
Valid for Version 00 and 20
from £75.88
from £75.88
# 006
MPN: 349000102
RH FRONT TUBE PRE MOD.
Valid for Version 00 and 20
from £59.80
from £59.80
# 007
MPN: 319020303
SPRING
Valid for Version 00 and 20
from £2.96
from £2.96
# 008
MPN: 349000301
SCREW
Valid for Version 00 and 20
from £3.17
from £3.17
# 009
MPN: 319020107
BRACKET (FOR MANUAL TRANSM. AND 3 HP AUT. TRANSM.)
Valid for Version 00 and 20
from £1.41
from £1.41
# 010
MPN: 138200080
WASHER
Valid for Version 00 and 20
# 011
MPN: 101208016
SCREW
Valid for Version 00 and 20
# 012
MPN: 329056007
CLIP
Valid for Version 00 and 20
from £1.16
from £1.16
# 013
MPN: 399000105
CENTRAL PIPE, ASSY
Valid for Version 00 and 20
from £79.82
from £79.82
# 014
MPN: 399000109
REAR PIPE LH
Valid for Version 00 and 20
from £176.05
from £176.05
# 015
MPN: 319020300
RING
Valid for Version 00 and 20
from £1.61
from £1.61
# 016
MPN: 312120300
BUFFER
Valid for Version 00 and 20
from £2.09
from £2.09
# 017
MPN: 135900084
WASHER
Valid for Version 00 and 20
# 018
MPN: 163020080
WASHER
Valid for Version 00 and 20
from £1.08
from £1.08
# 019
MPN: 319030312
SPRING
Valid for Version 00 and 20
from £1.41
from £1.41
# 020
MPN: 369012110
REAR PIPE RH
Valid for Version 00 and 20 - USE PART NUMBER : 369005110
from £521.23
from £521.23
This part replaces part number 369005110 - and 1 more. Click to view details
# 021
MPN: 329056008
CLAMP
Valid for Version 00 and 20
from £2.31
from £2.31
# 022
MPN: 319053115
LH SHIELD
Valid for Version 00 and 20
from £12.21
from £12.21
# 023
MPN: 399002120
RH SHIELD
Valid for Version 00 and 20
