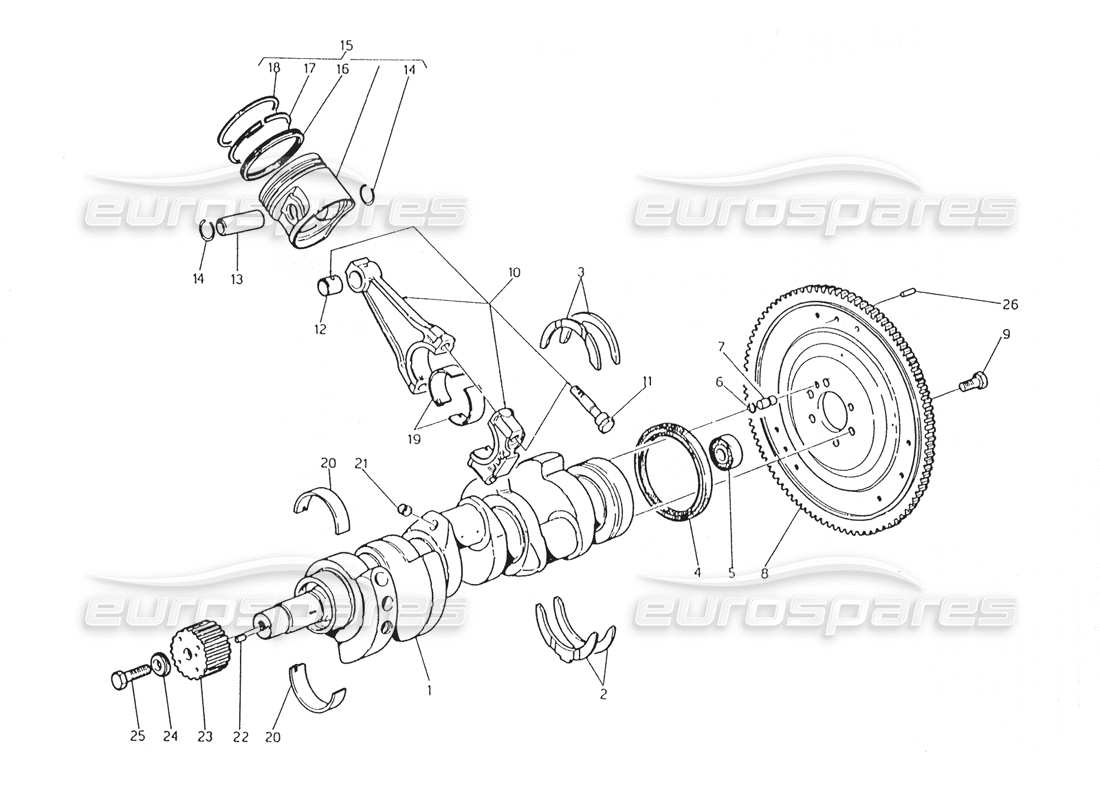

Maserati Karif 2.8 Crankshaft - Pistons - Connecting Rods and Flywheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 340800002
                                            crankshaft
                                            from £429.14
                                            from £429.14
                                            # 002
                                            MPN: 310820305
                                            LOWER SPACER WASHER, CL. A
                                            Supersession
                                            Supersession
                                            # 002
                                            MPN: 310820306
                                            LOWER SPACER WASHER, CL. B
                                            # 002
                                            MPN: 310820307
                                            LOWER SPACER WASHER, CL. C
                                            # 003
                                            MPN: 310820311
                                            UPPER SPACER WASHER, CL. B
                                            # 003
                                            MPN: 310820312
                                            UPPER SPACER WASHER, CL. C
                                            # 003
                                            MPN: 479021302
                                            UPPER SPACER WASHER, CL. A
                                            from £10.77
                                            from £10.77
                                            This part replaces part number 310820310 - and 1 more. Click to view details
                                            # 004
                                            MPN: 585412800
                                            SEAL RING
                                            from £27.43
                                            from £27.43
                                            This part replaces part number 311420104
                                            # 005
                                            MPN: 178003015
                                            BEARING
                                            from £15.50
                                            from £15.50
                                            # 006
                                            MPN: 310820302
                                            RETAINING RING
                                            from £1.08
                                            from £1.08
                                            # 007
                                            MPN: 310820301
                                            DOWEL
                                            from £2.85
                                            from £2.85
                                            # 008
                                            MPN: 321420100
                                            FLYWHEEL
                                            Supersession
                                            Supersession
                                            # 009
                                            MPN: 311420300
                                            BOLT
                                            Supersession
                                            Supersession
                                            # 010
                                            MPN: 340800004
                                            CONNECTING ROD, ASSY
                                            On the spare parts request it is necessary to specify the class, which is stamped on the upper side of the connecting rod - Standard (-), Light (1), Heavy (2)
                                            # 011
                                            MPN: 310820343
                                            BOLT
                                            Single part not supplied
                                            from £2.31
                                            from £2.31
                                            # 012
                                            MPN: 340800314
                                            BUSHING
                                            Single part not supplied
                                            # 013
                                            MPN: 341200316
                                            PISTON RING
                                            Single part not supplied
                                            from £15.38
                                            from £15.38
                                            # 015
                                            MPN: 341200006

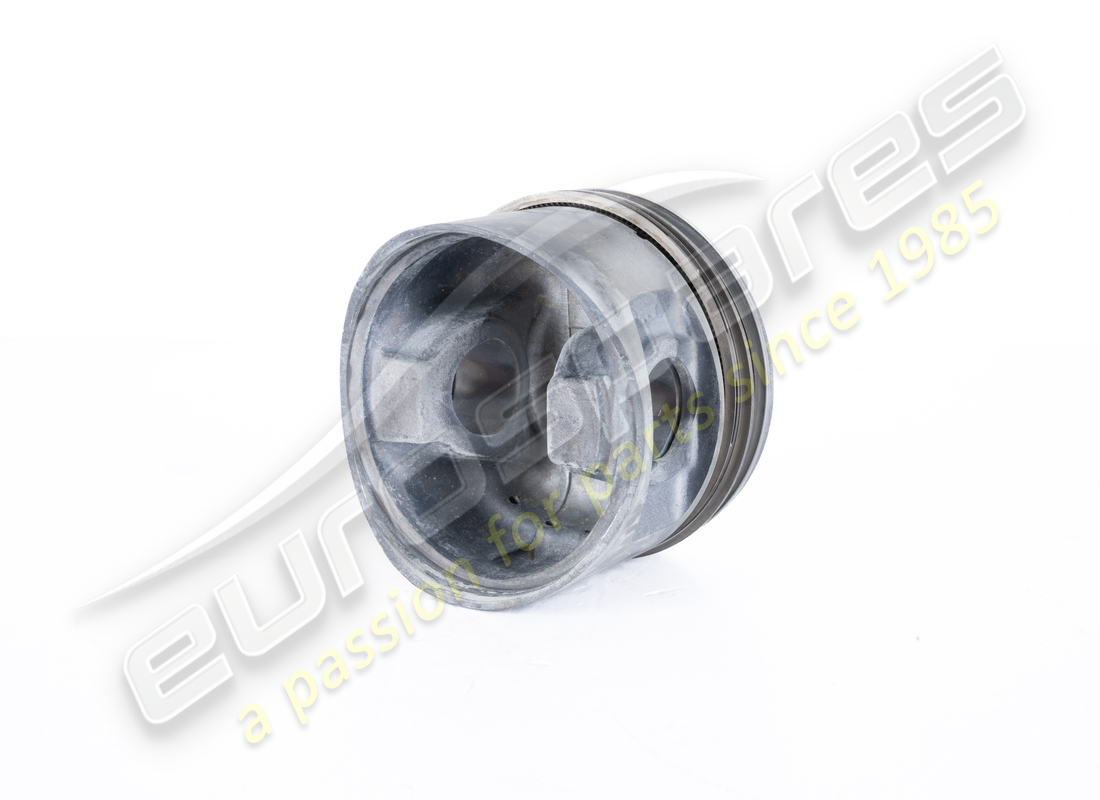

                                            PISTON (IN ALTERNATIVE)
                                            from £151.46
                                            from £151.46
                                            # 015
                                            MPN: 391205006
                                            PISTON (IN ALTERNATIVE)
                                            # 016
                                            MPN: 477022600
                                            OIL SCRAPER
                                            from £30.52
                                            from £30.52
                                            This part replaces part number 341200327
                                            # 017
                                            MPN: 341200328
                                            LOWER PISTON RING
                                            Supersession
                                            Supersession
                                            # 018
                                            MPN: 341200321
                                            UPPER PISTON RING
                                            from £30.52
                                            from £30.52
                                            # 019
                                            MPN: 452020901
                                            STANDARD CONN. ROD BEARING
                                            Supersession
                                            Supersession
                                            # 019
                                            MPN: 452020901/A
                                            STANDARD CON ROD BEARING (COMPLETE SET)
                                            from £961.58
                                            from £961.58
                                            This part replaces part number 452020901
                                            # 020
                                            MPN: 390450327
                                            STANDARD MAIN BEARING
                                            from £36.63
                                            from £36.63
                                            This part replaces part number 310420327
                                            # 021
                                            MPN: 310820300
                                            CRANKSHAFT OIL PLUG
                                            # 022
                                            MPN: 311020324
                                            DOWEL
                                            use : 470023100
                                            from £1.79
                                            from £1.79
                                            # 024
                                            MPN: 311020308
                                            WASHER
                                            from £13.13
                                            from £13.13
                                            # 026
                                            MPN: 311453303
                                            DOWEL
                                            from £9.66
                                            from £9.66
