068 - Carpets and Felts

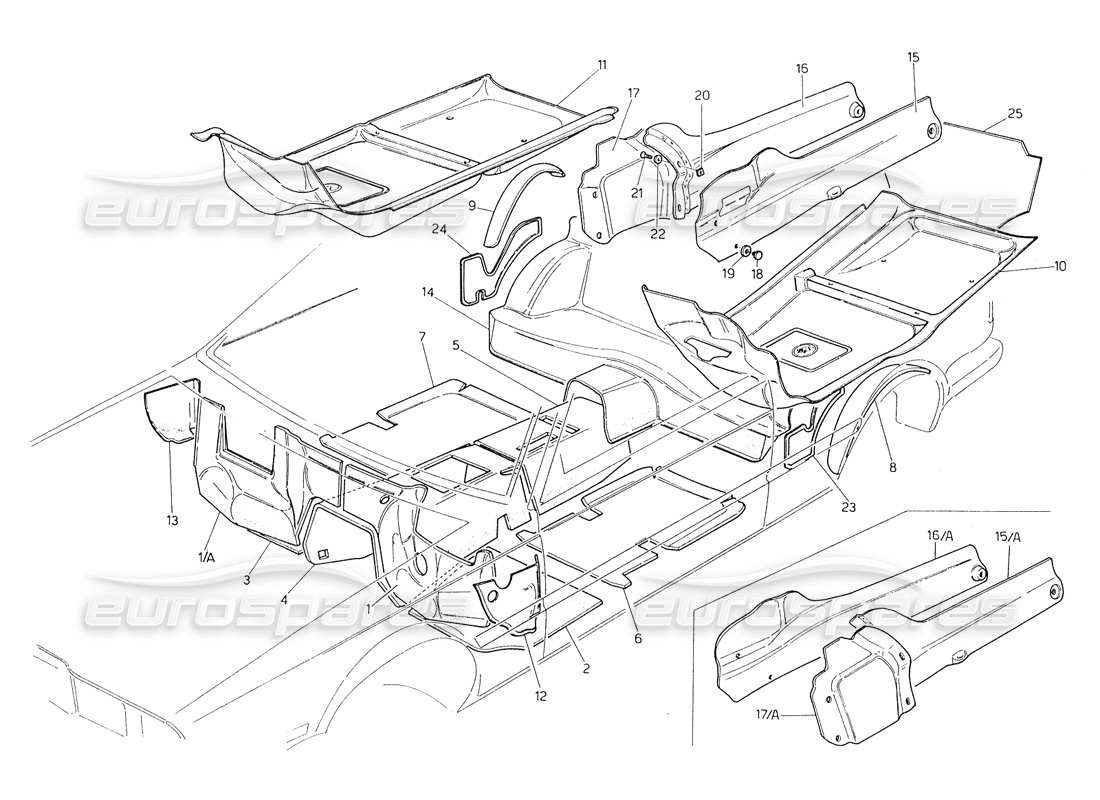

Maserati Biturbo Spider Carpets and Felts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 311553423
                                  LH BULKHEAD FELT
                                  Valid for 00, 02, 03, 10, 11
                                  from £73.77
                                  from £73.77
                                  # 001
                                  MPN: 311553424
                                  RH BULKHEAD FELT
                                  1/A on Picture - Valid for 00, 02, 03, 10, 11
                                  from £64.13
                                  from £64.13
                                  # 001
                                  MPN: 321570423
                                  LH BULKHEAD FELT
                                  Valid for 40, 41, 44, 45
                                  from £70.27
                                  from £70.27
                                  # 001
                                  MPN: 321570424
                                  RH BULKHEAD FELT
                                  1/A on Picture - Valid for 40, 41, 44, 45
                                  from £70.27
                                  from £70.27
                                  # 002
                                  MPN: 311553407
                                  LH BULKHEAD FELT
                                  from £50.45
                                  from £50.45
                                  # 003
                                  MPN: 311553408
                                  RH BULKHEAD FELT
                                  from £43.08
                                  from £43.08
                                  # 004
                                  MPN: 311553413
                                  BULKHEAD FELT
                                  Valid for 00, 02, 03, 10, 11
                                  from £40.88
                                  from £40.88
                                  # 004
                                  MPN: 321570413
                                  BULKHEAD FELT
                                  Valid for 40, 41, 44, 45
                                  # 005
                                  MPN: 311553414
                                  BULKHEAD FELT
                                  from £53.39
                                  from £53.39
                                  # 006
                                  MPN: 311553405
                                  LH BULKHEAD FELT
                                  from £48.17
                                  from £48.17
                                  # 007
                                  MPN: 311553406
                                  RH BULKHEAD FELT
                                  from £26.52
                                  from £26.52
                                  # 008
                                  MPN: 311520119
                                  LH BULKHEAD FELT
                                  # 009
                                  MPN: 311520120
                                  RH BULKHEAD FELT
                                  # 010
                                  MPN: 391500151
                                  LH CARPET (GREY-BLACK) WITHOUT FOOTBOARD PVC
                                  Valid for 00, 02, 03, 10, 11
                                  from £161.82
                                  from £161.82
                                  # 010
                                  MPN: 391500161
                                  LH CARPET (LIGHT BLUE TWO-COLOR) WITHOUT FOOTBOARD PVC
                                  Valid for 00, 02, 03, 10, 11
                                  from £122.77
                                  from £122.77
                                  # 010
                                  MPN: 391520159
                                  LH CARPET (GREY TWO-COLOR) WITH FOOTBOARD PVC
                                  Valid for 40, 41, 44, 45
                                  from £222.51
                                  from £222.51
                                  # 010
                                  MPN: 391520169
                                  LH CARPET (LIGHT BLUE TWO-COLOR) WITH FOOTBOARD PVC
                                  Valid for 40, 41, 44, 45
                                  from £230.35
                                  from £230.35
                                  # 010
                                  MPN: 399100015
                                  LH CARPET (BEIGE-BROWN TWO-COTOR) WITHOUT FOOTBOARD PVC
                                  Valid for 00, 02, 03, 10, 11
                                  from £120.34
                                  from £120.34
                                  # 010
                                  MPN: 399120017
                                  LH CARPET (BEIGE TWO-COTOR) WITH FOOTBOARD PVC
                                  Valid for 40, 41, 44, 45
                                  from £199.65
                                  from £199.65
                                  # 011
                                  MPN: 391500152
                                  RH CARPET (GREY-BLACK)
                                  Valid for 00, 02, 03, 10, 11
                                  from £180.51
                                  from £180.51
                                  # 011
                                  MPN: 391500162
                                  RH CARPET (LIGHT BLUE TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £122.77
                                  from £122.77
                                  # 011
                                  MPN: 391520160
                                  RH CARPET WITH FOOTBOARD PVC (GREY TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  from £228.97
                                  from £228.97
                                  # 011
                                  MPN: 391520170
                                  RH CARPET WITH FOOTBOARD PVC (LIGHT BLUE TWO-COTOR)
                                  Valid for 40, 41, 44, 45
                                  from £237.74
                                  from £237.74
                                  # 011
                                  MPN: 399100016
                                  RH CARPET (BEIGE-BROWN TWO-COLOR) WITHOUT FOOTBOARD PVC
                                  Valid for 00, 02, 03, 10, 11
                                  from £120.34
                                  from £120.34
                                  # 011
                                  MPN: 399120018
                                  RH CARPET WITH FOOTBOARD PVC (BEIGE TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  from £204.65
                                  from £204.65
                                  # 012
                                  MPN: 331500153
                                  LH CARPET (GREY-BLACK TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £4.10
                                  from £4.10
                                  # 012
                                  MPN: 331500163
                                  LH CARPET (LIGHT BLUE TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  # 012
                                  MPN: 339100011
                                  LH CARPET (BEIGE-BROWN TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £28.41
                                  from £28.41
                                  # 012
                                  MPN: 391500153
                                  LH CARPET (GREY-BLACK)
                                  Valid for 40, 41, 44, 45
                                  from £28.41
                                  from £28.41
                                  # 012
                                  MPN: 391500163
                                  LH CARPET (LIGHT BLUE TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  from £28.41
                                  from £28.41
                                  # 012
                                  MPN: 399100011
                                  LH CARPET (BEIGE-BROWN TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  from £22.04
                                  from £22.04
                                  # 013
                                  MPN: 331540157
                                  RH CARPET (GREY-BLACK TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  from £4.71
                                  from £4.71
                                  # 013
                                  MPN: 339140006
                                  RH CARPET (BEIGE-BROWN TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  from £12.00
                                  from £12.00
                                  # 013
                                  MPN: 391500154
                                  RH CARPET (GREY-BLACK)
                                  Valid for 00, 02, 03, 10, 11
                                  from £22.04
                                  from £22.04
                                  # 013
                                  MPN: 391500164
                                  RH CARPET (LIGHT BLUE TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £22.04
                                  from £22.04
                                  # 013
                                  MPN: 391540167
                                  RH CARPET (LIGHT BLUE TWO-COLOR)
                                  Valid for 40, 41, 44, 45
                                  # 013
                                  MPN: 399100012
                                  RH CARPET (BEIGE-BROWN TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £22.04
                                  from £22.04
                                  # 014
                                  MPN: 331500158
                                  UNDER SEAT REAR CARPET (GREY-BLACK)
                                  from £32.22
                                  from £32.22
                                  # 014
                                  MPN: 331500168
                                  UNDER SEAT REAR CARPET (LIGHT BLUE TWO-COLOR)
                                  # 014
                                  MPN: 339100008
                                  UNDER SEAT REAR CARPET (BEIGE BROWN TWO-COLOR)
                                  from £112.05
                                  from £112.05
                                  # 015
                                  MPN: 319122175
                                  LH SILL (BEIGE BROWN TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  Supersession
                                  Supersession
                                  # 015
                                  MPN: 328356221
                                  LH SILL (GREY BLACK)
                                  Valid for 00, 02, 03, 10, 11
                                  from £40.62
                                  from £40.62
                                  # 015
                                  MPN: 328356228
                                  LH SILL (LIGHT BLEY TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £74.70
                                  from £74.70
                                  # 015
                                  MPN: 328370245
                                  LH REAR SILL (BEIGE TWO-COLOR)
                                  15/A on Picture - Valid for 40, 41, 44, 45
                                  from £77.44
                                  from £77.44
                                  # 015
                                  MPN: 328370247
                                  LH REAR SILL (LIGHT BLUE TWO-COLOR)
                                  15/A on Picture - Valid for 40, 41, 44, 45
                                  from £43.00
                                  from £43.00
                                  # 015
                                  MPN: 328370249
                                  LH REAR SILL (GREY TWO-COLOR)
                                  15/A on Picture - Valid for 40, 41, 44, 45
                                  from £43.00
                                  from £43.00
                                  # 016
                                  MPN: 328356222
                                  RH REAR SILL (GREY-BLACK)
                                  Valid for 00, 02, 03, 10, 11
                                  from £21.15
                                  from £21.15
                                  # 016
                                  MPN: 328356229
                                  RH REAR SILL (LIGHT BLUE TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  from £74.70
                                  from £74.70
                                  # 016
                                  MPN: 328370251
                                  RH SILL (BEIGE TWO-COLOR)
                                  16/A on Picture - Valid for 40, 41, 44, 45
                                  from £77.44
                                  from £77.44
                                  # 016
                                  MPN: 328370252
                                  RH SILL (LIGHT BLUE TWO-COLOR)
                                  16/A on Picture - Valid for 40, 41, 44, 45
                                  from £77.44
                                  from £77.44
                                  # 016
                                  MPN: 328370253
                                  RH SILL (GREY TWO-COLOR)
                                  16/A on Picture - Valid for 40, 41, 44, 45
                                  from £43.63
                                  from £43.63
                                  # 016
                                  MPN: 349100207
                                  RH REAR SILL (BEIGE BROWN TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  Supersession
                                  Supersession
                                  # 017
                                  MPN: 328356223
                                  RH FRONT SILL (GREY-BLACK)
                                  Valid for 00, 02, 03, 10, 11
                                  Supersession
                                  Supersession
                                  # 017
                                  MPN: 328370246
                                  LH FRONT SILL (BEIGE TWO-COLOR)
                                  17/A on Picture - Valid for 40, 41, 44, 45
                                  from £41.11
                                  from £41.11
                                  # 017
                                  MPN: 328370248
                                  LH FRONT SILL (LIGHT BLUE TWO-COLOR)
                                  17/A on Picture - Valid for 40, 41, 44, 45
                                  from £35.35
                                  from £35.35
                                  # 017
                                  MPN: 328370250
                                  LH FRONT SILL (GREY TWO-COLOR)
                                  17/A on Picture - Valid for 40, 41, 44, 45
                                  from £19.85
                                  from £19.85
                                  # 017
                                  MPN: 338356230
                                  RH FRONT SILL (LIGHT BLYE TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  # 017
                                  MPN: 349100208
                                  RH FRONT SILL (BEIGE BROWN TWO-COLOR)
                                  Valid for 00, 02, 03, 10, 11
                                  Supersession
                                  Supersession
                                  # 018
                                  MPN: 318320499
                                  Plug (brown color)
                                  from £0.68
                                  from £0.68
                                  # 019
                                  MPN: 318320498
                                  WASHER (BROWN COLOR)
                                  from £1.11
                                  from £1.11
                                  # 020
                                  MPN: 312520499
                                  NUT
                                  from £0.68
                                  from £0.68
                                  # 023
                                  MPN: 331500149
                                  LH REAR CARPET (GREY TWO-COLOR)
                                  from £47.86
                                  from £47.86
                                  # 023
                                  MPN: 331500171
                                  LH REAR CARPET (LIGHT BLUE TWO-COLOR)
                                  # 023
                                  MPN: 339100009
                                  LH REAR CARPET (BEIGE TWO-COLOR)
                                  from £79.70
                                  from £79.70
                                  # 024
                                  MPN: 331500150
                                  RH REAR CARPET (GREY TWO-COLOR)
                                  from £47.86
                                  from £47.86
                                  # 024
                                  MPN: 331500172
                                  RH REAR CARPET (LIGHT BLUE TWO-COLOR)
                                  # 024
                                  MPN: 339100010
                                  RH REAR CARPET (BEIGE TWO-COLOR)
                                  from £79.70
                                  from £79.70
                                  # 025
                                  MPN: 311553419
                                  REAR BULKHEAD FELD
                                  from £83.94
                                  from £83.94
