maserati biturbo spider air - conditioner set (lh steering) parts diagram

064 - Air - Conditioner Set (LH Steering)

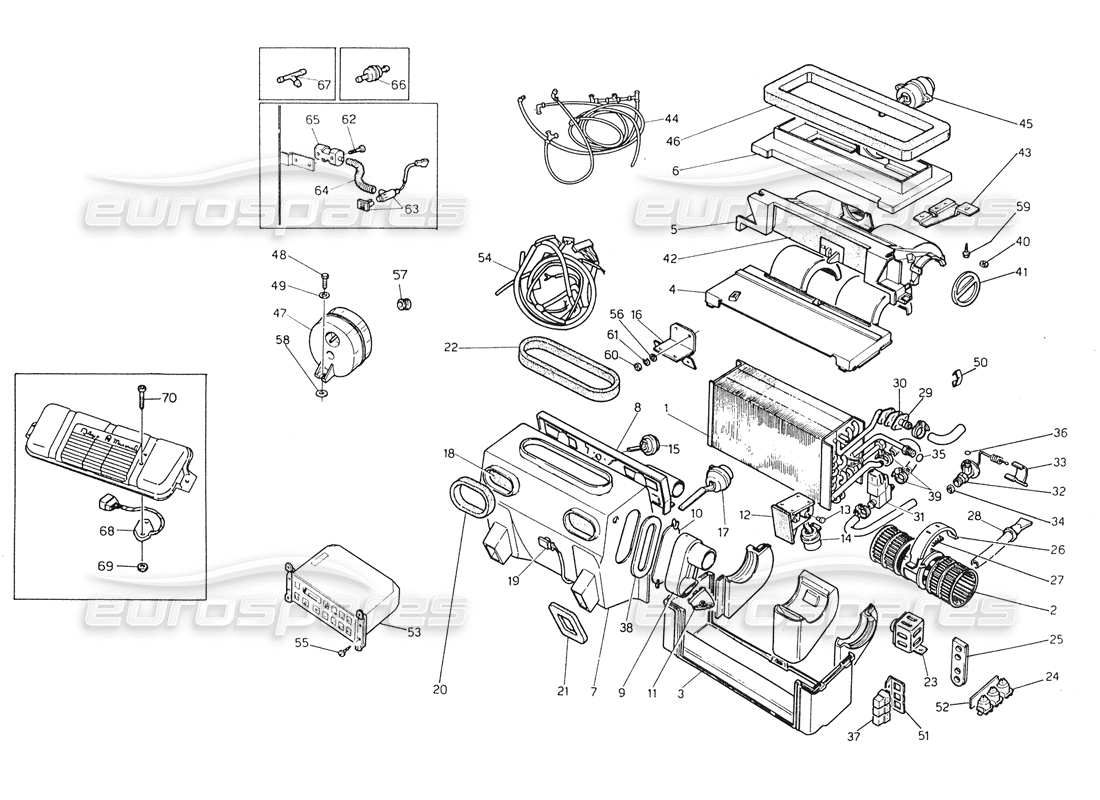

Maserati Biturbo Spider Air - Conditioner Set (L.H. Steering) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315520165
EVAPORATOR-HEATER
Valid for 00, 02, 03, 10, 11
# 002
MPN: 315520167
ELECTRIC FAN
Valid for 00, 02, 03, 10, 11
from £219.24
from £219.24
# 003
MPN: 315520380
LOWER BOX
Valid for 00, 02, 03, 10, 11
from £34.23
from £34.23
# 004
MPN: 315520381
INTERMEDIATE BOX
Valid for 00, 02, 03, 10, 11
from £12.62
from £12.62
# 005
MPN: 315520382
UPPER BOX
Valid for 00, 02, 03, 10, 11
from £7.70
from £7.70
# 006
MPN: 315520470
CONVEYOR
Valid for 00, 02, 03, 10, 11
from £41.95
from £41.95
# 007
MPN: 315520471
Front Body
Valid for 00, 02, 03, 10, 11
from £10.92
from £10.92
This part replaces part number 315520384
# 008
MPN: 315520472
UPPER COVER
Valid for 00, 02, 03, 10, 11
# 009
MPN: 315520473
NOZZLE FOR AIR. LH
Valid for 00, 02, 03, 10, 11
from £8.52
from £8.52
# 009
MPN: 315520474
NOZZLE FOR AIR, RH
Valid for 00, 02, 03, 10, 11
from £8.52
from £8.52
# 010
MPN: 315520163
DOOR FOR LH NOZZLE
Valid for 00, 02, 03, 10, 11
from £3.19
from £3.19
This part replaces part number 315520129
# 010
MPN: 315520164
DOOR FOR RH NOZZLE
Valid for 00, 02, 03, 10, 11
from £4.11
from £4.11
This part replaces part number 315520130
# 011
MPN: 315520387
INNER DUCT
Valid for 00, 02, 03, 10, 11
from £18.72
from £18.72
# 012
MPN: 315520018
LOWER DOOR ASSY
Valid for 00, 02, 03, 10, 11
from £10.33
from £10.33
# 013
-
PIN FOR DOOR (NOT SUPPLIED)
# 014
MPN: 315520158
ACTUATOR TO CONTROL DOOR
Valid for 00, 02, 03, 10, 11
from £9.15
from £9.15
# 015
MPN: 315520162
ACTUATOR WITH TWO POSITION
Valid for 00, 02, 03, 10, 11
from £4.54
from £4.54
# 016
MPN: 315520138
PAD TO SUPPORT CONDITIONER
Valid for 00, 02, 03, 10, 11
from £3.23
from £3.23
# 017
MPN: 315520159
ACTUATOR
Valid for 00, 02, 03, 10, 11
from £12.76
from £12.76
# 018
MPN: 315520134
DOOR THROW AIR
Valid for 00, 02, 03, 10, 11
# 019
MPN: 315520206
SENSOR
Valid for 00, 02, 03, 10, 11
from £18.75
from £18.75
# 020
MPN: 315520396
GASKET FOR NOZZLE
Valid for 00, 02, 03, 10, 11
# 021
MPN: 315520397
GASKET FOR NOZZLE
Valid for 00, 02, 03, 10, 11
from £3.47
from £3.47
# 022
MPN: 315520398
GASKET FOR NOZZLE
Valid for 00, 02, 03, 10, 11
from £3.47
from £3.47
# 023
MPN: 315520143
RESISTANCE
Valid for 00, 02, 03, 10, 11
from £17.12
from £17.12
# 024
MPN: 315520207
SOLENOID VALVE
Valid for 00, 02, 03, 10, 11
from £41.09
from £41.09
# 025
MPN: 315520475
GASKET
Valid for 00, 02, 03, 10, 11
# 026
MPN: 315520402
PAD
Valid for 00, 02, 03, 10, 11
# 027
MPN: 315520403
BUMPER
Valid for 00, 02, 03, 10, 11
# 028
MPN: 315520017
DRAIN PIPE
Valid for 00, 02, 03, 10, 11
from £1.76
from £1.76
# 029
MPN: 315520210
CONNECTOR
Valid for 00, 02, 03, 10, 11
from £4.49
from £4.49
# 030
MPN: 315520482
GASKET
Valid for 00, 02, 03, 10, 11
from £2.90
from £2.90
# 031
MPN: 315522144
1 COMPLEX COCK
Valid for 00, 02, 03, 10, 11
from £395.15
from £395.15
# 032
MPN: 315520166
EXPANSION VALVE (AFTER MODIF)
Valid for 00, 02, 03, 10, 11
from £76.67
from £76.67
# 032
MPN: 315522166
EXPANSION VALVE (PRE MODIF)
Valid for 00, 02, 03, 10, 11
from £71.69
from £71.69
# 033
MPN: 315520408
SPRING
Valid for 00, 02, 03, 10, 11
from £1.93
from £1.93
# 034
MPN: 315520445
SEAL RING
Valid for 00, 02, 03, 10, 11
from £0.68
from £0.68
# 035
MPN: 315520444
SEAL RING
Valid for 00, 02, 03, 10, 11
from £0.68
from £0.68
# 036
MPN: 315520443
SEAL RING
Valid for 00, 02, 03, 10, 11
from £1.02
from £1.02
# 037
MPN: 30331137
RELAY
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
# 038
MPN: 315520483
GASKET
Valid for 00, 02, 03, 10, 11
from £3.81
from £3.81
# 039
MPN: 315520415
CLAMP
Valid for 00, 02, 03, 10, 11
# 040
MPN: 315520417
SPRING FOR DOOR
Valid for 00, 02, 03, 10, 11
# 041
MPN: 315520416
DOOR
Valid for 00, 02, 03, 10, 11
from £9.15
from £9.15
# 042
MPN: 315520136
AIR CONTROL DOOR
Valid for 00, 02, 03, 10, 11
# 043
MPN: 315520419
LH PAD FIX. CONDITIONER
Valid for 00, 02, 03, 10, 11
# 043
MPN: 315520420
RH PAD FIX. CONDITIONER
Valid for 00, 02, 03, 10, 11
# 044
MPN: 315520208
PNEUMATIC SYSTEM
Valid for 00, 02, 03, 10, 11
from £10.16
from £10.16
# 045
MPN: 315520160
ACTUATOR FOR AIR DOOR
Valid for 00, 02, 03, 10, 11
from £3.82
from £3.82
# 046
MPN: 315520422
GASKET
Valid for 00, 02, 03, 10, 11
from £2.90
from £2.90
# 047
MPN: 30551155
Tank
Valid for 00, 02, 03, 10, 11
# 048
MPN: 119148160
SCREW
Valid for 00, 02, 03, 10, 11
# 049
MPN: 169020005
WASHER
Valid for 00, 02, 03, 10, 11
from £1.07
from £1.07
# 050
MPN: 315520423
SPRING
Valid for 00, 02, 03, 10, 11
# 051
MPN: 315520477
BRACKET
Valid for 00, 02, 03, 10, 11
from £18.01
from £18.01
# 052
MPN: 315520478
SOLENOID VALVE BRACKET
Valid for 00, 02, 03, 10, 11
# 053
MPN: 365500201
CLIMATE CONTROL UNIT
Supersession
Supersession
This part replaces part number 315550204
# 053
MPN: 365504201
CLIMATE CONTROL UNIT
from £1,264.85
from £1,264.85
This part replaces part number 365500201
# 054
MPN: 315520209
WIRING HARNESS
Valid for 00, 02, 03, 10, 11
from £45.36
from £45.36
# 055
MPN: 119529130
SCREW
Valid for 00, 02, 03, 10, 11
from £1.07
from £1.07
# 056
MPN: 169020406
WASHER
Valid for 00, 02, 03, 10, 11
from £0.76
from £0.76
# 057
MPN: 53211308
GROMMET
Valid for 00, 02, 03, 10, 11
from £0.56
from £0.56
# 058
MPN: 312520511
GASKET
Valid for 00, 02, 03, 10, 11
from £1.70
from £1.70
# 059
MPN: 314320345
SCREW
Valid for 00, 02, 03, 10, 11
from £41.46
from £41.46
# 060
MPN: 125100060
NUT
Valid for 00, 02, 03, 10, 11
# 061
MPN: 135600060
WASHER
Valid for 00, 02, 03, 10, 11
from £0.76
from £0.76
# 062
MPN: 112804016
SCREW
Valid for 00, 02, 03, 10, 11
# 063
MPN: 315520199
INNER AIR FEELER
Valid for 00, 02, 03, 10, 11
from £27.96
from £27.96
# 064
MPN: 315520467
HOSE
Valid for 00, 02, 03, 10, 11
from £0.70
from £0.70
# 065
MPN: 315520200
FAN
Valid for 00, 02, 03, 10, 11
from £59.63
from £59.63
# 066
MPN: 315520153
VALVE
Valid for 00, 02, 03, 10, 11
from £8.77
from £8.77
# 067
MPN: 315520424
UNION
Valid for 00, 02, 03, 10, 11
from £0.49
from £0.49
# 068
MPN: 315520196
EXTERNAL AIR FEELER
Valid for 00, 02, 03, 10, 11
from £13.65
from £13.65
# 069
MPN: 122600060
NUT
Valid for 00, 02, 03, 10, 11
# 070
MPN: 112804016
SCREW
Valid for 00, 02, 03, 10, 11
