maserati biturbo spider windshield wiper - washer (lh steering) parts diagram

056 - Windshield Wiper - Washer (LH Steering)

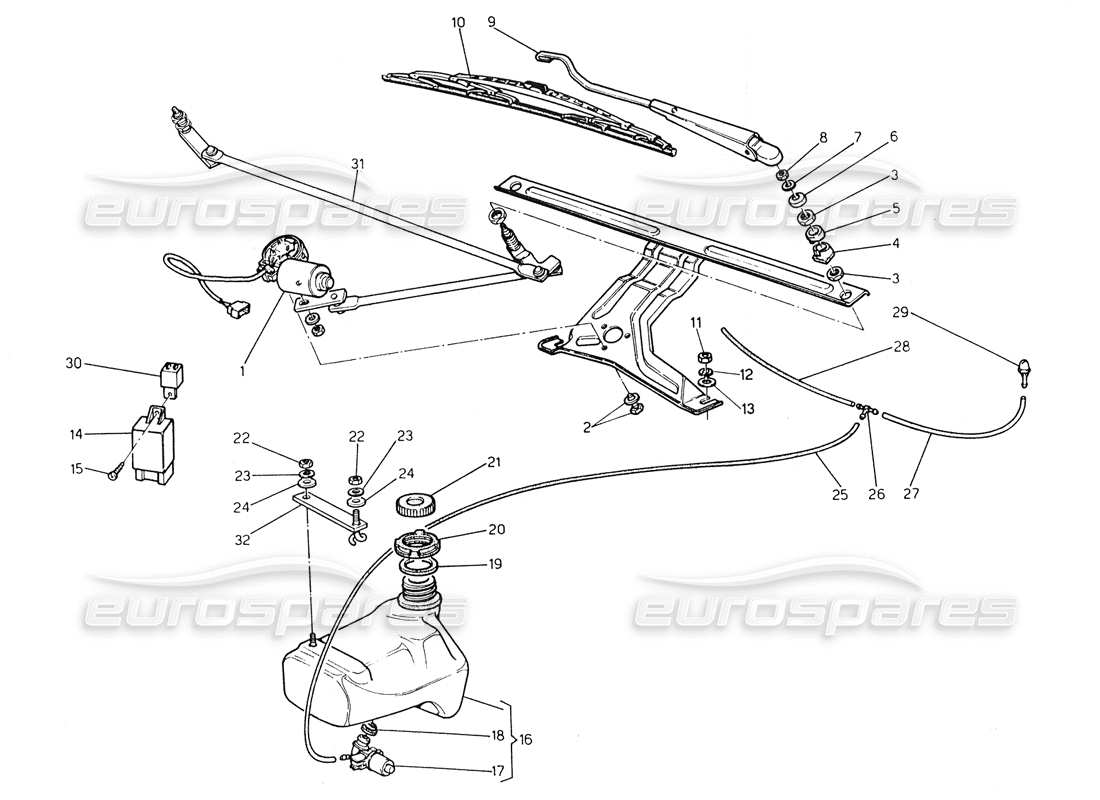

Maserati Biturbo Spider Windshield Wiper - Washer (L.H. Steering) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313320201
wiper motor
Valid for 00, 02, 03, 10, 11
from £96.59
from £96.59
# 002
MPN: 313320401
SCREW AND WASHER
Valid for 00, 02, 03, 10, 11
# 003
MPN: 313320402
NUT
Valid for 00, 02, 03, 10, 11
from £1.63
from £1.63
# 004
MPN: 313327328
INSIDE SPACER
Valid for 00, 02, 03, 10, 11
from £1.00
from £1.00
# 005
MPN: 313327329
OUTSIDE SPACER
Valid for 00, 02, 03, 10, 11
from £1.00
from £1.00
# 006
MPN: 313320405
PLUG
Valid for 00, 02, 03, 10, 11
from £1.05
from £1.05
# 007
MPN: 138410080
WASHER
Valid for 00, 02, 03, 10, 11
# 008
MPN: 125300080
NUT
Valid for 00, 02, 03, 10, 11
# 009
MPN: 313320118
WIPER ARM
Valid for 00, 02, 03, 10, 11
from £39.95
from £39.95
# 010
MPN: 313320119
WIPER BLADE
Valid for 00, 02, 03, 10, 11
from £2.87
from £2.87
# 011
MPN: 125100080
NUT
Valid for 00, 02, 03, 10, 11
from £0.86
from £0.86
# 012
MPN: 135300084
SPRING WASHER
Valid for 00, 02, 03, 10, 11
# 013
MPN: 169020508
WASHER
Valid for 00, 02, 03, 10, 11
# 014
MPN: 313320116
INTERVAL SWITCH
Valid for 00, 02, 03, 10, 11
from £26.04
from £26.04
# 015
MPN: 119148130
SCREW
Valid for 00, 02, 03, 10, 11
from £0.84
from £0.84
# 016
MPN: 318120024
RESERVOIR
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
# 017
MPN: 373300183
ELECTRIC WIPER PUMP
Valid for 00, 02, 03, 10, 11
from £15.07
from £15.07
This part replaces part number 330907620
# 018
MPN: 30331302
SEAL
Valid for 00, 02, 03, 10, 11
from £0.70
from £0.70
# 019
MPN: 318120328
SEAL
Valid for 00, 02, 03, 10, 11
from £2.82
from £2.82
# 020
MPN: 318120329
GROOVED NUT
Valid for 00, 02, 03, 10, 11
from £1.05
from £1.05
# 021
MPN: 30811327
CAP
Valid for 00, 02, 03, 10, 11
# 022
MPN: 125100060
NUT TO FIX. TANK
Valid for 00, 02, 03, 10, 11
# 023
MPN: 135300064
WASHER
Valid for 00, 02, 03, 10, 11
# 024
MPN: 169020406
WASHER
Valid for 00, 02, 03, 10, 11
from £0.78
from £0.78
# 025
MPN: 318120313
CONNECTOR-PUMP LINE
Valid for 00, 02, 03, 10, 11
from £0.78
from £0.78
# 026
MPN: 30811310
CONNECTOR
Valid for 00, 02, 03, 10, 11
from £0.78
from £0.78
# 027
MPN: 318120311
LH NOZZIE-CONNECTOR LINE
Valid for 00, 02, 03, 10, 11
from £0.50
from £0.50
# 028
MPN: 318120312
RH NOZZLE-CONNECTOR LINE
Valid for 00, 02, 03, 10, 11
from £0.50
from £0.50
# 029
MPN: 53811109
NOZZLE
Valid for 00, 02, 03, 10, 11
# 030
MPN: 313320115
LIGHTS FLASHING
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
# 031
MPN: 313320202
LEVERAGE
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
# 032
MPN: 318120130
BRACKET
Valid for 00, 02, 03, 10, 11
from £1.55
from £1.55
