032 - Steering Shaft and Wheel

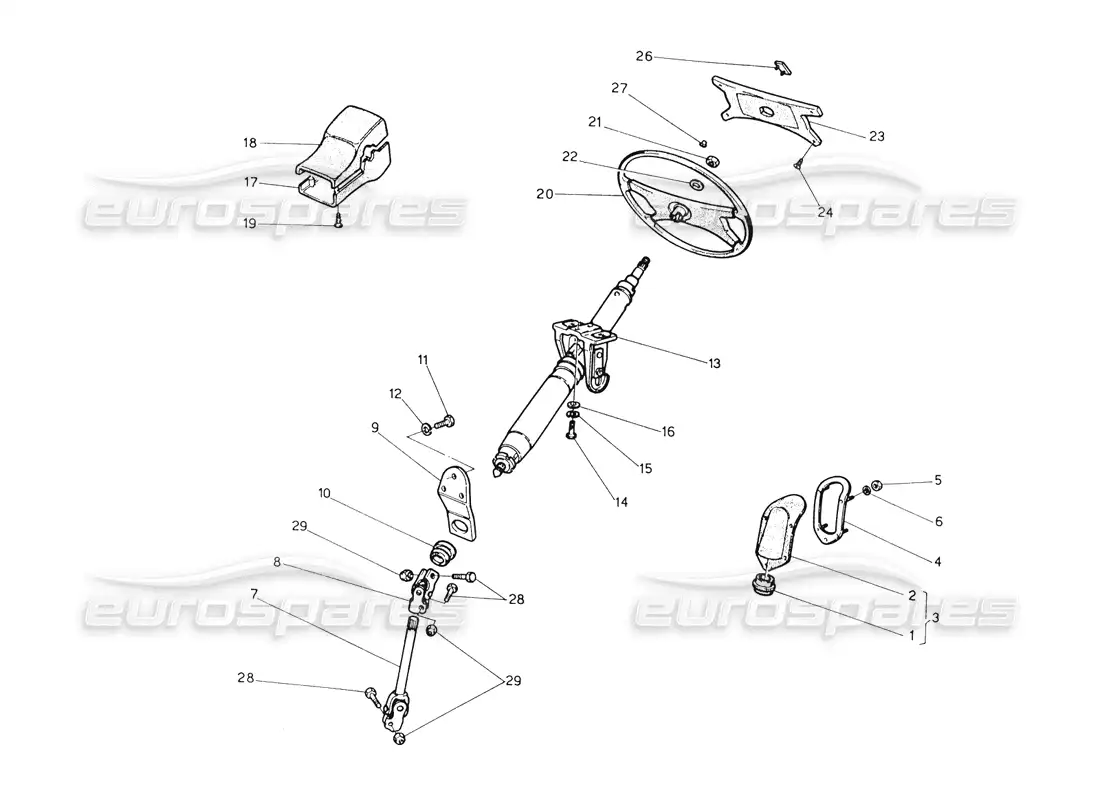

Maserati Biturbo Spider Steering Shaft and Wheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 317820337
                                                DUST SHIELD BUSH
                                                from £0.70
                                                from £0.70
                                                # 002
                                                MPN: 317820336
                                                DUST SHIELD
                                                Valid for 00, 02, 03, 10, 11
                                                from £4.66
                                                from £4.66
                                                # 002
                                                MPN: 317827336
                                                DUST SHIELD
                                                Valid for 40, 41, 44, 45
                                                from £5.97
                                                from £5.97
                                                # 003
                                                MPN: 317820116
                                                DUST SHIELD WITH BUSH ASSY
                                                Valid for 00, 02, 03, 10, 11
                                                from £11.64
                                                from £11.64
                                                # 003
                                                MPN: 317827116
                                                DUST SHIELD WITH BUSH ASSY
                                                Valid for 40, 41, 44, 45
                                                from £19.10
                                                from £19.10
                                                # 004
                                                MPN: 317820107
                                                DUST SHIELD SUPPORT DUST SHIELD SUPPORT NUT
                                                from £4.58
                                                from £4.58
                                                # 004
                                                MPN: 317827107
                                                DUST SHIELD SUPPORT
                                                from £3.96
                                                from £3.96
                                                # 005
                                                MPN: 125100050
                                                NUT
                                                from £0.69
                                                from £0.69
                                                # 007
                                                MPN: 327870117
                                                INTERMEDIATE SHAFT
                                                Valid for 40, 41, 44, 45
                                                from £208.75
                                                from £208.75
                                                # 007
                                                MPN: 367801117
                                                INTERMEDIATE SHAFT
                                                Valid for 00, 02, 03, 10, 11
                                                from £171.33
                                                from £171.33
                                                # 008
                                                MPN: 317820117
                                                UNIVERSAL JOINT
                                                from £321.90
                                                from £321.90
                                                # 009
                                                MPN: 317820320
                                                LOWER SUPPORT
                                                Valid for 00, 02, 03, 10, 11
                                                from £1.77
                                                from £1.77
                                                This part replaces part number 9577
                                                # 009
                                                MPN: 327870320
                                                LOWER SUPPORT
                                                Valid for 40, 41, 44, 45
                                                from £2.19
                                                from £2.19
                                                This part replaces part number 9564
                                                # 010
                                                MPN: 367800321
                                                BUSH FOR LOWER SUPPORT
                                                from £28.14
                                                from £28.14
                                                This part replaces part number 317820321
                                                # 013
                                                MPN: 317820114
                                                STEERING SHAFT ASSY
                                                Valid for 00, 02, 03, 10, 11
                                                from £406.39
                                                from £406.39
                                                # 013
                                                MPN: 317827114
                                                STEERING SHAFT ASSY
                                                Valid for 40, 41, 44, 45
                                                from £121.67
                                                from £121.67
                                                # 014
                                                MPN: 167131030
                                                BOLT
                                                from £1.86
                                                from £1.86
                                                # 016
                                                MPN: 14496601
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 017
                                                MPN: 317820110
                                                Lower steering column cover colour brown
                                                # 018
                                                MPN: 317820109
                                                UPPER STEERING COLUMN COVER COLOUR BROWN
                                                from £15.91
                                                from £15.91
                                                # 020
                                                MPN: 327820104
                                                STEERING WHEEL COLOUR BROWN
                                                from £121.67
                                                from £121.67
                                                # 020
                                                MPN: 327856104
                                                STEERING WHEEL
                                                from £221.35
                                                from £221.35
                                                # 021
                                                MPN: 125400140
                                                STEERING WHEEL NUT
                                                # 022
                                                MPN: 135600140
                                                SPRING WASHER
                                                from £1.08
                                                from £1.08
                                                # 023
                                                MPN: 327832105
                                                STEERING WHEEL COVER COLOUR BROWN
                                                from £39.84
                                                from £39.84
                                                # 023
                                                MPN: 327856105
                                                STEERING WHEEL COVER COLOUR BROWN FOR RADICA STEERING WHEEL
                                                from £46.81
                                                from £46.81
                                                # 024
                                                MPN: 119142190
                                                BOLT (PRE MOD.)
                                                # 024
                                                MPN: 119142220
                                                BOLT (AFTER MOD.)
                                                # 026
                                                MPN: 317820300
                                                MARQUE FOR STEERING WHEEL
                                                from £5.59
                                                from £5.59
                                                # 027
                                                MPN: 163510030
                                                MARQUE SPRING
                                                # 028
                                                MPN: 317820382
                                                BOLT
                                                from £1.32
                                                from £1.32
                                                # 029
                                                MPN: 128350080
                                                SELF LOCKING NUT
                                                Supersession
                                                Supersession
