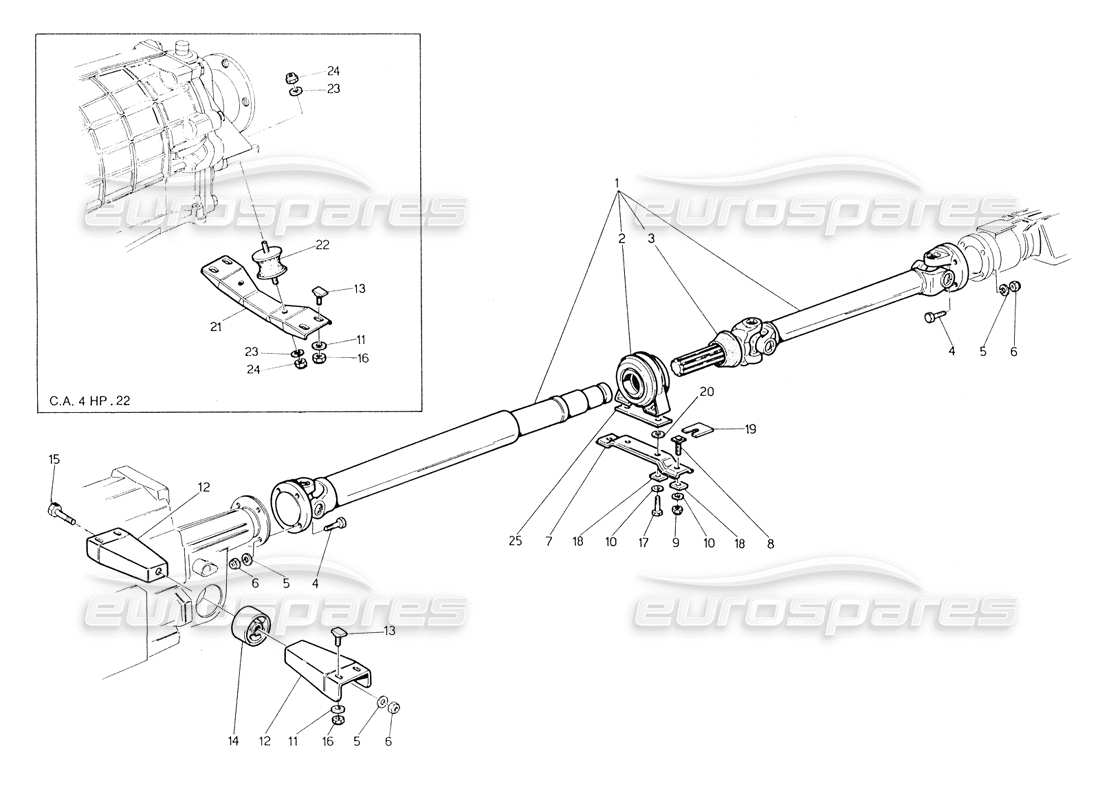

![maserati biturbo spider propeller shaft and carrier parts diagram](/img/CxEAAETdFtt3_lItZcgZiKColiEahQaZzse59OsiEo1HBU-3sWUAAw%3D%3D/maserati-biturbo-spider-part-diagram-030.webp)
030 - Propeller Shaft and Carrier
Maserati Biturbo Spider Propeller Shaft and Carrier Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 336003102
PROPELLER SHAFT ASSEMBLY C.A. 4 HP
Valid for 03, 11, 41, 45
from £463.93
from £463.93
# 001
MPN: 336020100
PROPELLER SHAFT ASSEMBLY C.M.
Valid for 00, 02, 10, 40, 44
from £424.46
from £424.46
# 001
MPN: 336032102
PROPELLER SHAFT ASSEMBLY C.A. 3HP
Valid for 03, 11, 41, 45
from £374.06
from £374.06
# 002
MPN: 316020103
CENTRAL SUPPORT FOR PROPELLER SHAFT
from £690.43
from £690.43
# 003
MPN: 316020306
Dust bellows
from £4.67
from £4.67
# 004
MPN: 316020300
BOLT
from £13.94
from £13.94
# 005
MPN: 138410100
SPRING WASHER
# 006
MPN: 128360100
SELF LOCKING NUT
# 007
MPN: 316020330
PROPELLER SHAFT PLATE
from £4.67
from £4.67
# 008
MPN: 316020110
BOLT
from £1.17
from £1.17
# 009
MPN: 128350080
NUT
Supersession
Supersession
# 010
MPN: 138200080
SPRING WASHER
# 011
MPN: 163020080
WASHER
from £1.09
from £1.09
# 012
MPN: 314820302
SUPPORT
Valid for 00, 02, 10, 40, 44
from £2.99
from £2.99
# 012
MPN: 314832305
LH SUPPORT X C.A. 3 HP
Valid for 03, 11, 41, 45
from £2.88
from £2.88
# 012
MPN: 314832306
RH SUPPORT X C.A. 3 HP
Valid for 03, 11, 41, 45
from £2.63
from £2.63
# 013
MPN: 314820303
BOLT
from £12.55
from £12.55
# 014
MPN: 314820100

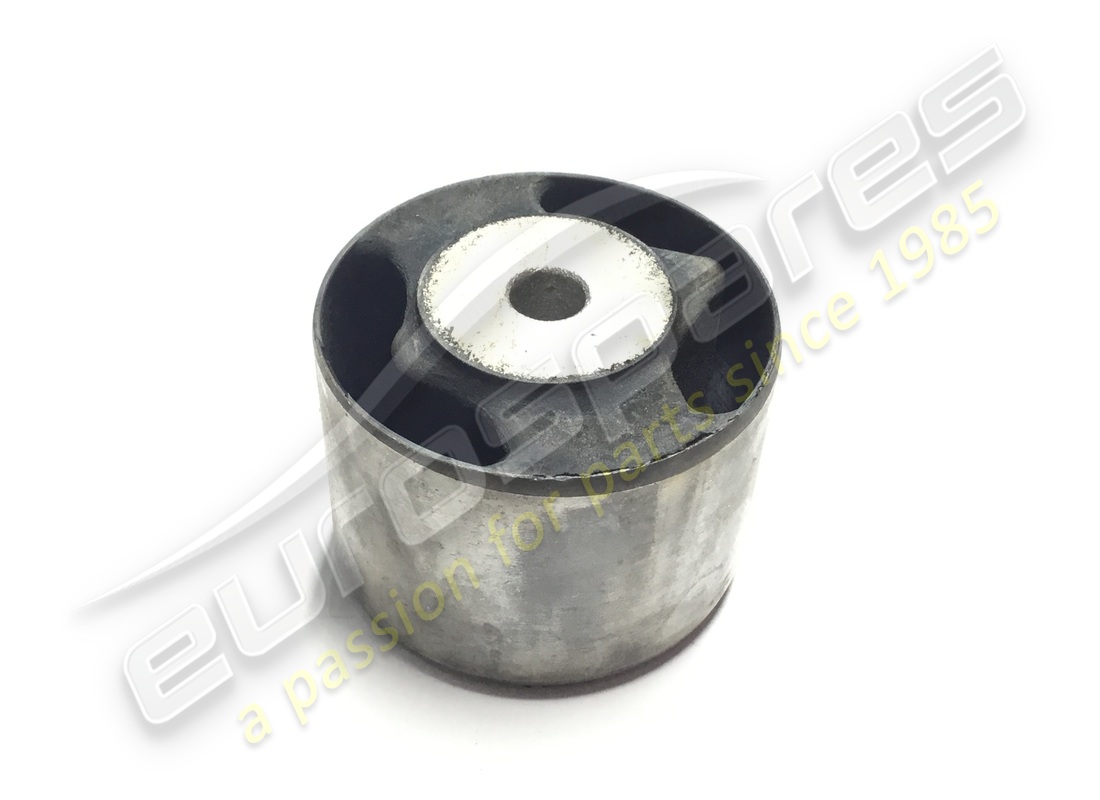

SILENT BLOC
Valid for 00, 02, 10, 40, 44
from £53.55
from £53.55
# 015
MPN: 100810070
BOLT
Valid for 00, 02, 10, 40, 44
# 016
MPN: 128350080
NUT
Supersession
Supersession
# 017
MPN: 101208020
BOLT
Valid for 00, 02, 10, 40, 44
# 017
MPN: 101208025
BOLT
Valid for 03, 11, 41, 45
# 018
MPN: 316020334
PLATE
from £1.32
from £1.32
# 019
MPN: 316020336
PLATE
from £0.70
from £0.70
# 020
MPN: 316055335
SPACER
Valid for 03, 11, 41, 45
# 021
MPN: 314855305
BRACKET
Valid for 03, 11, 41, 45
from £3.91
from £3.91
# 022
MPN: 324853120
SILENT BLOCK
Valid for 03, 11, 41, 45
from £17.06
from £17.06
This part replaces part number 314855119 - and 1 more. Click to view details
# 023
MPN: 314855306
WASHER
Valid for 03, 11, 41, 45
from £2.18
from £2.18
# 024
MPN: 128350080
NUT
Valid for 03, 11, 41, 45
Supersession
Supersession
# 025
MPN: 316032350
SPACER
Valid for 03, 11, 41, 45
