maserati biturbo spider oil radiator for automatic transmission (4 hp) parts diagram

029.6 - Oil Radiator for Automatic Transmission (4 HP)

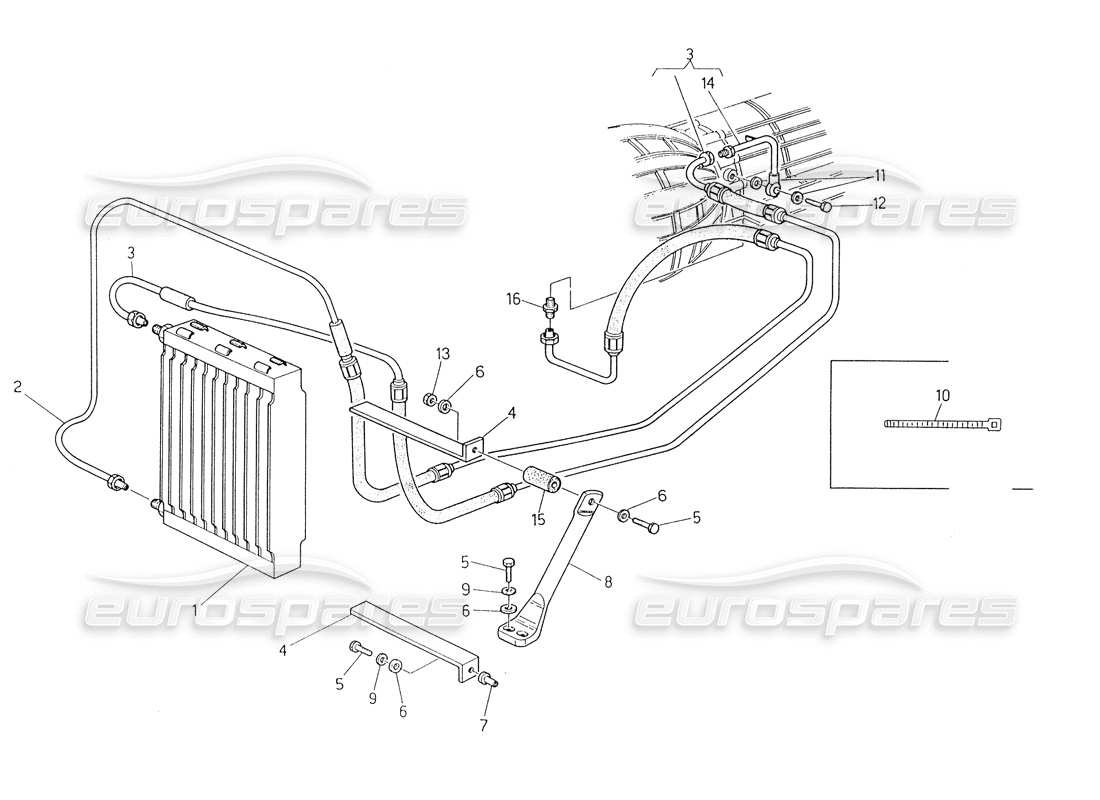

Maserati Biturbo Spider Oil Radiator for Automatic Transmission (4 HP) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 311855106
RADIATOR
Valid for 03, 11, 41, 45
from £112.73
from £112.73
# 002
MPN: 311855109
PIPE
Valid for 03, 11, 41, 45
from £89.99
from £89.99
# 003
MPN: 311855108
PIPE
Valid for 03, 11, 41, 45
from £89.99
from £89.99
# 004
MPN: 311855333
BRACKET
Valid for 03, 11, 41, 45
from £6.38
from £6.38
# 005
MPN: 101206022
BOLT
Valid for 03, 11, 41, 45
# 006
MPN: 136110066
WASHER
Valid for 03, 11, 41, 45
# 007
MPN: 315220303
BUSCH
Valid for 03, 11, 41, 45
from £0.68
from £0.68
# 008
MPN: 311855111
ROD
Valid for 03, 11, 41, 45
from £18.45
from £18.45
# 009
MPN: 135600060
WASHER
Valid for 03, 11, 41, 45
from £0.76
from £0.76
# 010

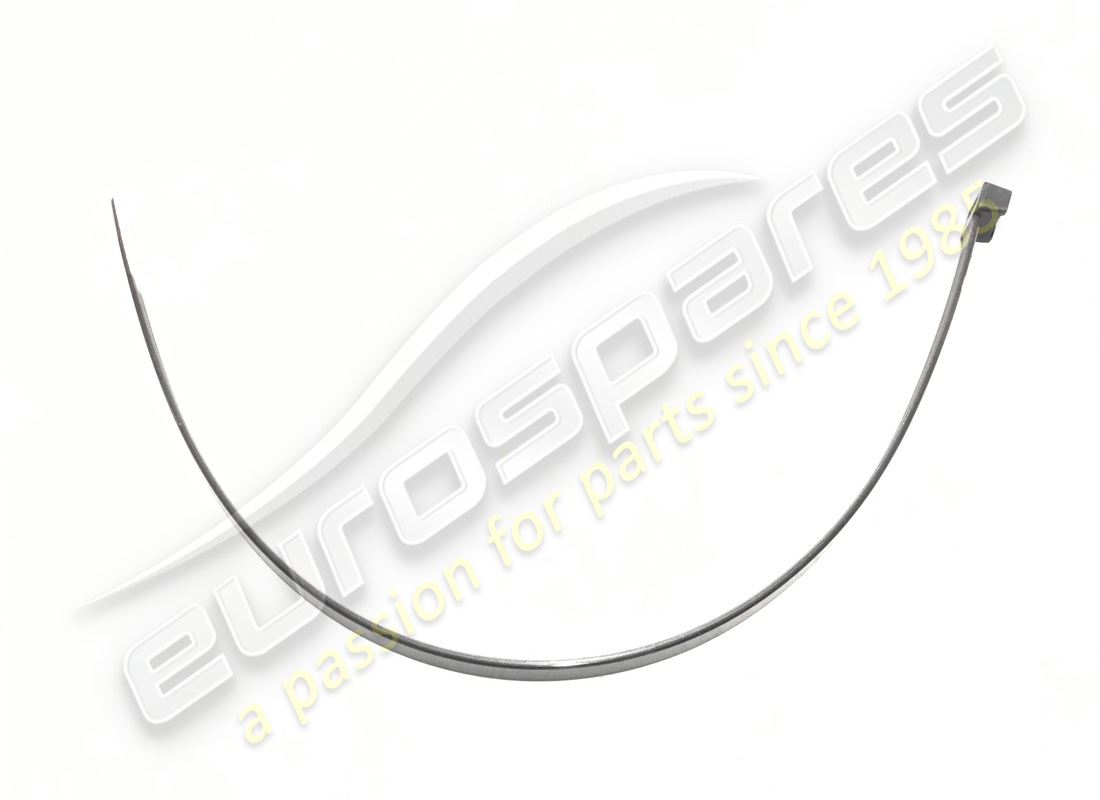

MPN: 312430302
CLAMP
Valid for 03, 11, 41, 45
from £0.68
from £0.68
# 011
MPN: 311855312
GASKET (PRE MOD.)
Valid for 03, 11, 41, 45
# 011
MPN: 311855316
GASKET (AFTER MOD.)
Valid for 03, 11, 41, 45
from £1.93
from £1.93
# 012
MPN: 311832343
CONNECTOR
Valid for 03, 11, 41, 45
from £1.54
from £1.54
# 013
MPN: 128350060
NUT
Valid for 03, 11, 41, 45
# 014
-
CONNECTOR
# 015
MPN: 311855310
SPACER
Valid for 03, 11, 41, 45
from £1.15
from £1.15
# 016
MPN: 311855344
NIPPLE
Valid for 03, 11, 41, 45
from £6.38
from £6.38
