029.4 - Automatic Transmission Control (4 HP)

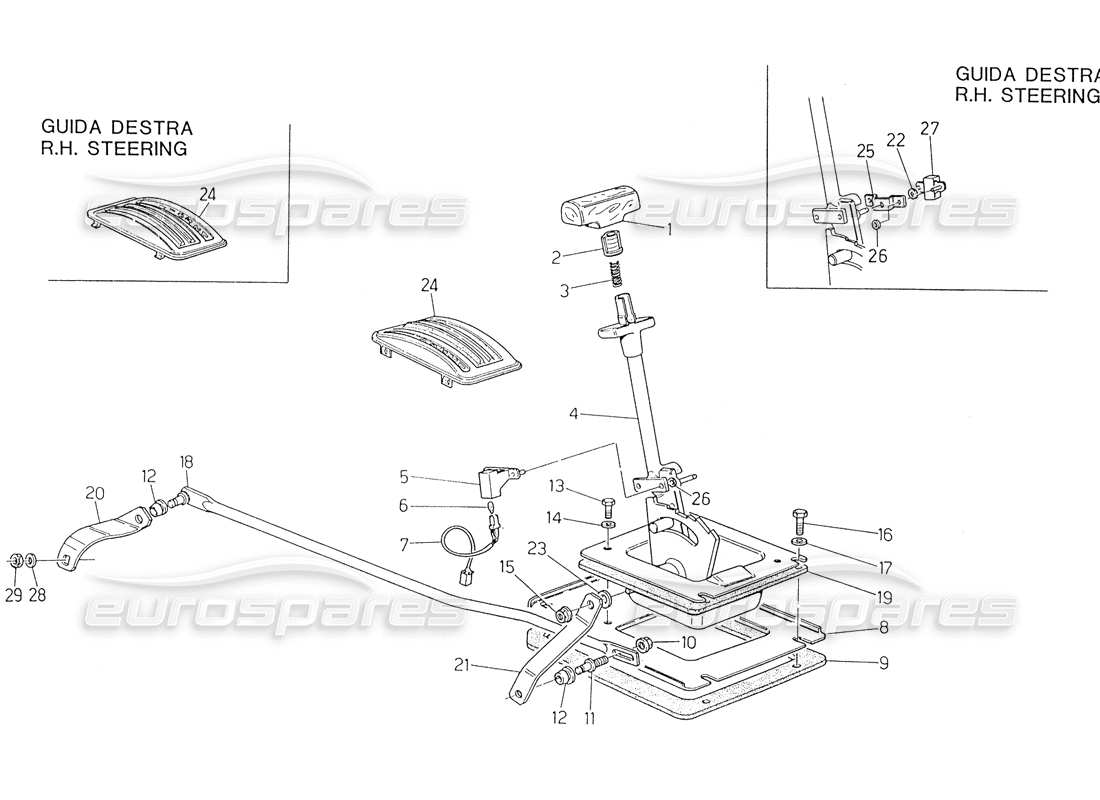

Maserati Biturbo Spider Automatic Transmission Control (4 HP) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315255101
TRANSMISSION KNOB
Valid for 03, 11, 41, 45
Supersession
Supersession
# 002
MPN: 315232417
BUSH
Valid for 03, 11, 41, 45
from £0.92
from £0.92
This part replaces part number 375206313
# 003
MPN: 315232418
SPRING
Valid for 03, 11, 41, 45
from £5.10
from £5.10
# 004
MPN: 315255016
GEAR SELECTOR
Valid for 03, 11, 41, 45
from £115.39
from £115.39
# 005
MPN: 313155143
BODY LIGHT HOLDER
Valid for 03, 11, 41, 45
from £1.08
from £1.08
# 006
MPN: 87760012
BULB
Valid for 03, 11, 41, 45
from £0.47
from £0.47
# 007
MPN: 313155147
LIGHT HOLDER
Valid for 03, 11, 41, 45
from £6.36
from £6.36
# 008
MPN: 315232151
PLATE
Valid for 03, 11, 41, 45
from £2.19
from £2.19
# 009
MPN: 315232407
GASKET
Valid for 03, 11, 41, 45
from £1.94
from £1.94
# 010
MPN: 128350080
NUT
Valid for 03, 11, 41, 45
Supersession
Supersession
# 011
MPN: 315255401
PIN
Valid for 03, 11, 41, 45
from £64.64
from £64.64
# 012
MPN: 315232402
BUSH
Valid for 03, 11, 41, 45
from £14.82
from £14.82
This part replaces part number 325255402
# 013
MPN: 101205012
SCREW
Valid for 03, 11, 41, 45
# 014
MPN: 136110360
WASHER
Valid for 03, 11, 41, 45
# 015
MPN: 128350080
NUT
Valid for 03, 11, 41, 45
Supersession
Supersession
# 016
MPN: 167200625
SCREW
Valid for 03, 11, 41, 45
from £2.49
from £2.49
# 017
MPN: 169020406
WASHER
Valid for 03, 11, 41, 45
from £0.78
from £0.78
# 018
MPN: 315255150
ROD
Valid for 03, 11, 41, 45
from £24.44
from £24.44
# 019
MPN: 315232408
GASKET
Valid for 03, 11, 41, 45
from £1.55
from £1.55
# 020
MPN: 315255405
LEVER
Valid for 03, 11, 41, 45
from £6.44
from £6.44
# 021
MPN: 315255400
LEVER
Valid for 03, 11, 41, 45
from £5.97
from £5.97
# 022
MPN: 30551347
SPRING
minimum order quantity = 10
from £0.70
from £0.70
# 023
MPN: 315255409
WASHGER
Valid for 03, 11, 41, 45
# 024
MPN: 318371282
MOULDING (PRE MOD.)
Valid for 41, 45
# 024
MPN: 328355282
MOULDING (PRE MOD.)
valid for LHD
from £24.98
from £24.98
This part replaces part number 318355282
# 024
MPN: 328355282
MOULDING (PRE MOD.)
valid for LHD
from £24.98
from £24.98
This part replaces part number 318355282
# 024
MPN: 328371282
MOULDING (PRE MOD.)
Valid for 41, 45
from £2.22
from £2.22
# 025
MPN: 315271415
BRACKET
Valid for 03, 11
# 026
MPN: 163560030
SPRING
Valid for 03, 11, 41, 45
# 027
MPN: 313171146
BODY LIGHT HOLDER
Valid for 41, 45
from £2.57
from £2.57
# 028
MPN: 315255411
WASHER
Valid for 03, 11, 41, 45
# 029
MPN: 315255410
NUT
Valid for 03, 11, 41, 45
from £1.08
from £1.08
