029.3 - Automatic Transmission Control (3 HP)

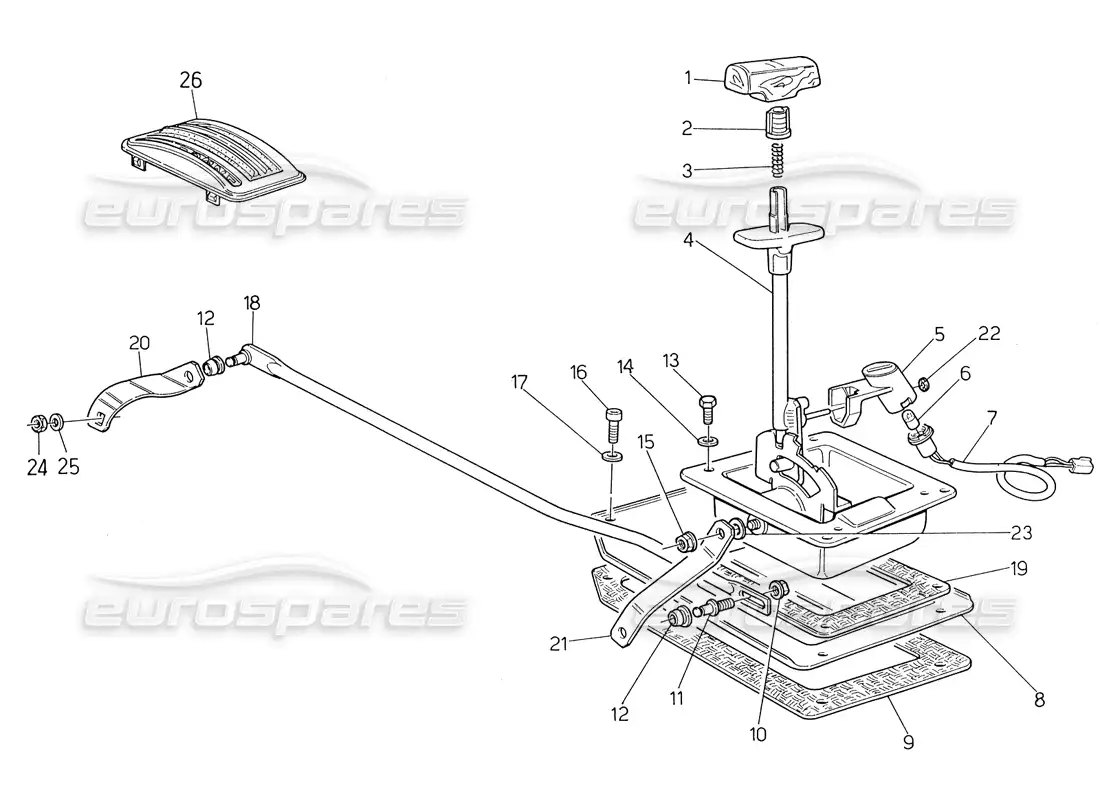

Maserati Biturbo Spider Automatic Transmission Control (3 HP) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 315232016
GEAR SELECTOR, ASSY
Valid for 03, 11, 41, 45
from £367.50
from £367.50
# 001
MPN: 315232419
TRANSMISSION KNOB
Valid for 03, 11, 41, 45
from £3.25
from £3.25
This part replaces part number 315232154
# 002
MPN: 315232417
BUSH
Valid for 03, 11, 41, 45
from £0.91
from £0.91
This part replaces part number 375206313
# 003
MPN: 315232418
SPRING
Valid for 03, 11, 41, 45
from £5.07
from £5.07
# 004
MPN: 315232145
GEAR SELECTOR
Valid for 03, 11, 41, 45
# 005
MPN: 313132143
INDICATOR
Valid for 03, 11, 41, 45
# 006
MPN: 87760003
BULB
Valid for 03, 11, 41, 45
from £0.47
from £0.47
# 007
MPN: 313132144
LIGHT HOLDER
Valid for 03, 11, 41, 45
# 008
MPN: 315232151
MASK
Valid for 03, 11, 41, 45
from £2.18
from £2.18
# 009
MPN: 315232407
GASKET
Valid for 03, 11, 41, 45
from £1.93
from £1.93
# 010
MPN: 314320326
NUT
Valid for 03, 11, 41, 45
from £1.08
from £1.08
# 011
MPN: 315232401
PIN
Valid for 03, 11, 41, 45
from £21.09
from £21.09
# 012
MPN: 315232402
BUSH
Valid for 03, 11, 41, 45
from £14.76
from £14.76
This part replaces part number 325255402
# 013
MPN: 101205012
SCREW
Valid for 03, 11, 41, 45
# 014
MPN: 138400050
WASHER
Valid for 03, 11, 41, 45
# 015
MPN: 122600080
NUT
Valid for 03, 11, 41, 45
# 016
MPN: 108006016
SCREW
Valid for 03, 11, 41, 45
# 017
MPN: 138410060
WASHER
Valid for 03, 11, 41, 45
# 018
MPN: 315232150
ROD
Valid for 03, 11, 41, 45
from £6.41
from £6.41
# 019
MPN: 315232408
GASKET
Valid for 03, 11, 41, 45
from £1.55
from £1.55
# 020
MPN: 315232405
LEVER
Valid for 03, 11, 41, 45
from £4.64
from £4.64
# 021
MPN: 315232400
LEVER
Valid for 03, 11, 41, 45
from £3.25
from £3.25
# 022
MPN: 30551347
SPRING
minimum order quantity = 10
from £0.70
from £0.70
# 023
MPN: 315232409
WASHER
Valid for 03, 11, 41, 45
from £1.08
from £1.08
# 024
MPN: 125200080
NUT
Valid for 03, 11, 41, 45
# 025
MPN: 138410080
WASHER
Valid for 03, 11, 41, 45
# 026
MPN: 318332282
MOULDING
Valid for 03, 11, 41, 45
from £12.05
from £12.05
