029.2 - Automatic Transmission - Converter (4 HP)

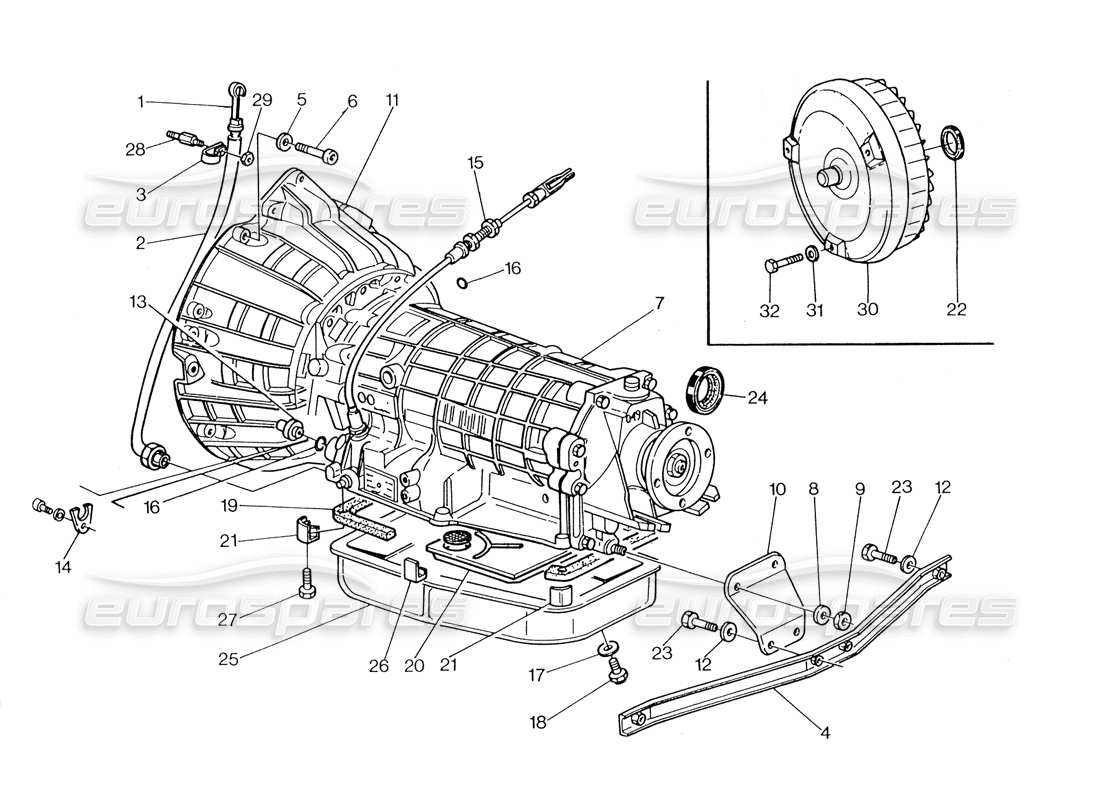

Maserati Biturbo Spider Automatic Transmission - Converter (4 HP) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 364814009
AUTOMATIC TRANSMISSION WITH BELL AND CONVERTER
Valid for 03, 11, 41, 45
from £1,260.00
from £1,260.00
# 001
MPN: 315255156
oil dipstick
Valid for 03, 11, 41, 45
from £361.84
from £361.84
# 002
MPN: 315255157
OIL GAITER
Valid for 03, 11, 41, 45
from £13.13
from £13.13
# 003
MPN: 315232413
CLAMP
Valid for 03, 11, 41, 45
from £1.93
from £1.93
# 004
MPN: 319055108
SUPPORT
Valid for 03, 11, 41, 45
from £4.56
from £4.56
# 005
MPN: 138410100
WASHER
Valid for 03, 11, 41, 45
# 006
MPN: 108010040
SCREW
Valid for 03, 11, 41, 45
# 007
-
AUTOMATIC TRANSMISSION (WITHOUT BELL AND CONVERTER)
# 008
MPN: 138200080
WASHER
Valid for 03, 11, 41, 45
# 009
MPN: 125100080
NUT
Valid for 03, 11, 41, 45
from £0.86
from £0.86
# 010
MPN: 319055310
AUTOMATIC TRANSMISSION SUPPORT
Valid for 03, 11, 41, 45
from £7.73
from £7.73
# 011
MPN: 314661312
CONVERTER BELL
Valid for 03, 11, 41, 45
from £153.99
from £153.99
# 012
MPN: 163020080
WASHER
Valid for 03, 11, 41, 45
from £1.08
from £1.08
# 013
MPN: 313655106
SWITCH
Valid for 03, 11, 41, 45
from £126.04
from £126.04
# 014
MPN: 314855312
PLATE
Valid for 03, 11, 41, 45
from £1.08
from £1.08
# 015
MPN: 314855106
CABLE
Valid for 03, 11, 41, 45
from £35.47
from £35.47
# 016
MPN: 314855336
GASKET
Valid for 03, 11, 41, 45
from £5.10
from £5.10
# 017
MPN: 314855323
GASKET
Valid for 03, 11, 41, 45
from £3.25
from £3.25
# 018
MPN: 314855322
OIL PLUNG
Valid for 03, 11, 41, 45
from £2.31
from £2.31
# 019
MPN: 314855309
GASKET
Valid for 03, 11, 41, 45
from £17.15
from £17.15
# 020
MPN: 314855110
OIL FILTER
Valid for 03, 11, 41, 45
from £56.77
from £56.77
# 021
MPN: 314855302
HOOK SUPPORT
Valid for 03, 11, 41, 45
from £1.41
from £1.41
# 022
MPN: 314855331
RING
Valid for 03, 11, 41, 45
from £20.25
from £20.25
# 023
MPN: 101208016
SCREW
Valid for 03, 11, 41, 45
# 024
MPN: 314855401
REAR SEAL RING
Valid for 03, 11, 41, 45
from £26.51
from £26.51
# 025
MPN: 314855102
oil sump
Valid for 03, 11, 41, 45
from £45.28
from £45.28
# 026
MPN: 314855301
HOOK SUPPORT
Valid for 03, 11, 41, 45
from £0.98
from £0.98
# 027
MPN: 314855313
SCREW
Valid for 03, 11, 41, 45
from £1.85
from £1.85
# 028
MPN: 312032446
COLUMN
Valid for 03, 11, 41, 45
# 029
MPN: 125100080
NUT
Valid for 03, 11, 41, 45
from £0.86
from £0.86
# 030
MPN: 314855101
CONVERTER
Valid for 03, 11, 41, 45
from £753.57
from £753.57
# 031
MPN: 138210180
WASHER
Valid for 03, 11, 41, 45
# 032
MPN: 314655308
BOLT
Valid for 03, 11, 41, 45
from £3.64
from £3.64
