028 - Transmission - Main Shaft

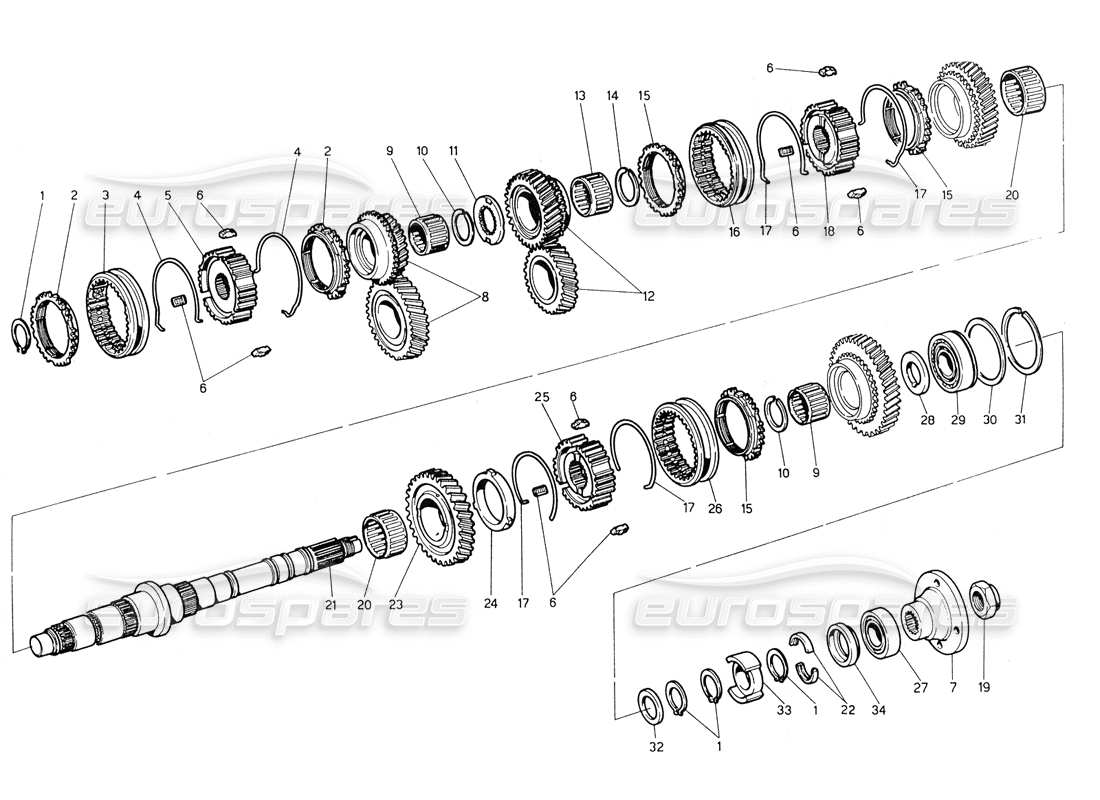

Maserati Biturbo Spider Transmission - Main Shaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315020301
RETAINING RING (1,8)
Valid for 00, 02, 10, 40, 44
from £2.33
from £2.33
# 001
MPN: 315020302
RETAINING RING (19)
Valid for 00, 02, 10, 40, 44
from £0.70
from £0.70
# 001
MPN: 315020303
RETAINING RING (2)
Valid for 00, 02, 10, 40, 44
from £0.70
from £0.70
# 002
MPN: 315020470
SYNCHRONIZING GEAR
Valid for 00, 02, 10, 40, 44
from £35.16
from £35.16
# 003
MPN: 315020306
SLEEVE
Valid for 00, 02, 10, 40, 44
from £64.24
from £64.24
# 004
MPN: 315020305
SPRING
Valid for 00, 02, 10, 40, 44
from £1.41
from £1.41
# 005
MPN: 315020312
SYNCHRONIZING GEAR
Valid for 00, 02, 10, 40, 44
from £29.08
from £29.08
# 006
MPN: 315020311
BRACE
Valid for 00, 02, 10, 40, 44
from £1.08
from £1.08
# 007
MPN: 315020315
FLANGE
Valid for 00, 02, 10, 40, 44
from £48.12
from £48.12
# 008
MPN: 315020003
5TH GEAR SET RAPP.0,87 (AFTER, MODIF.)
Valid for 00, 02, 10, 40, 44
from £220.01
from £220.01
# 008
MPN: 315020004
5TH GEAR SET RAPP.0,79
Valid for 00, 02, 10, 40, 44
from £136.97
from £136.97
# 009
MPN: 315020100
BEARING
Valid for 00, 02, 10, 40, 44
from £3.61
from £3.61
# 010
MPN: 315020347
RETAINING RING (2,O)
Valid for 00, 02, 10, 40, 44
from £1.08
from £1.08
# 010
MPN: 315020348
RETAINING RING (1,9)
Valid for 00, 02, 10, 40, 44
from £0.70
from £0.70
# 010
MPN: 315020349
RETAINING RING (1,8)
Valid for 00, 02, 10, 40, 44
from £0.70
from £0.70
# 011
MPN: 315020319
WASHER
Valid for 00, 02, 10, 40, 44
from £9.31
from £9.31
# 012
MPN: 315020005
3RD GEAR SET
Valid for 00, 02, 10, 40, 44
from £129.20
from £129.20
# 013
MPN: 315020102
BEARING
Valid for 00, 02, 10, 40, 44
from £6.37
from £6.37
# 014
MPN: 315020354
RETAINING RING (2,0)
Valid for 00, 02, 10, 40, 44
from £1.55
from £1.55
# 014
MPN: 315020355
RETAINING RING (1,9)
Valid for 00, 02, 10, 40, 44
from £1.55
from £1.55
# 014
MPN: 315020356
RETAINING RING (1,8)
Valid for 00, 02, 10, 40, 44
from £1.55
from £1.55
# 015
MPN: 315020321
SYNCHRONIZING RING
Valid for 00, 02, 10, 40, 44
from £289.90
from £289.90
# 016
MPN: 315020322
2ND AND 3RD SLEEVE
Valid for 00, 02, 10, 40, 44
from £199.58
from £199.58
# 017
MPN: 315020326
SYNCHRONIZING SPRING
Valid for 00, 02, 10, 40, 44
from £1.77
from £1.77
# 018
MPN: 315020327
SYNCHRONIZING GEAR
Valid for 00, 02, 10, 40, 44
from £28.40
from £28.40
# 019
MPN: 315020325
NUT
Valid for 00, 02, 10, 40, 44
from £41.13
from £41.13
# 020
MPN: 315020105
BEARING
Valid for 00, 02, 10, 40, 44
from £15.36
from £15.36
# 021
MPN: 315020329
Main Shaft
Valid for 00, 02, 10, 40, 44
from £261.96
from £261.96
# 022
MPN: 315020331
RING
Valid for 00, 02, 10, 40, 44
from £11.87
from £11.87
# 023
MPN: 315020337
GEAR
Valid for 00, 02, 10, 40, 44
from £207.50
from £207.50
# 024
MPN: 315020333
GUIDE RING
Valid for 00, 02, 10, 40, 44
from £12.27
from £12.27
# 025
MPN: 315020338
REVERSE AND 1ST SYNCHRONIZING
Valid for 00, 02, 10, 40, 44
from £203.85
from £203.85
# 026
MPN: 315020335
REVERSE AND 1ST SLEEVE
Valid for 00, 02, 10, 40, 44
from £195.38
from £195.38
# 027
MPN: 315020106
BEARING
Valid for 00, 02, 10, 40, 44
from £30.92
from £30.92
# 028
MPN: 315020336
WASHER
Valid for 00, 02, 10, 40, 44
from £9.31
from £9.31
# 029
MPN: 315020110
BEARING
Valid for 00, 02, 10, 40, 44
from £41.46
from £41.46
# 030
MPN: 315020360
WASHER (1,4)
Valid for 00, 02, 10, 40, 44
from £3.18
from £3.18
# 030
MPN: 315020361
WASHER (12)
Valid for 00, 02, 10, 40, 44
from £3.57
from £3.57
# 030
MPN: 315020362
WASHER (10)
Valid for 00, 02, 10, 40, 44
from £3.57
from £3.57
# 030
MPN: 315020363
WASHER (0,8)
Valid for 00, 02, 10, 40, 44
from £3.18
from £3.18
# 030
MPN: 315020364
WASHER (0,6)
Valid for 00, 02, 10, 40, 44
from £3.18
from £3.18
# 031
MPN: 315020341
SPRING
Valid for 00, 02, 10, 40, 44
from £1.55
from £1.55
# 032
MPN: 315020370
THRUST RING (3,5)
Valid for 00, 02, 10, 40, 44
from £12.80
from £12.80
# 032
MPN: 315020371
THRUST RING (3,4)
Valid for 00, 02, 10, 40, 44
from £12.80
from £12.80
# 032
MPN: 315020372
THRUST RING (3,2)
Valid for 00, 02, 10, 40, 44
from £12.80
from £12.80
# 032
MPN: 315020373
THRUST RING (3,0)
Valid for 00, 02, 10, 40, 44
from £12.80
from £12.80
# 032
MPN: 315020374
THRUST RING (3,3)
Valid for 00, 02, 10, 40, 44
from £12.80
from £12.80
# 032
MPN: 315020375
THRUST RING (3,1)
Valid for 00, 02, 10, 40, 44
from £12.80
from £12.80
# 033
MPN: 315020344
SLEEVE
Valid for 00, 02, 10, 40, 44
from £2.69
from £2.69
# 034
MPN: 315020345
SEAL RING
Valid for 00, 02, 10, 40, 44
from £18.55
from £18.55
