011 - Lubrication Turboblowers

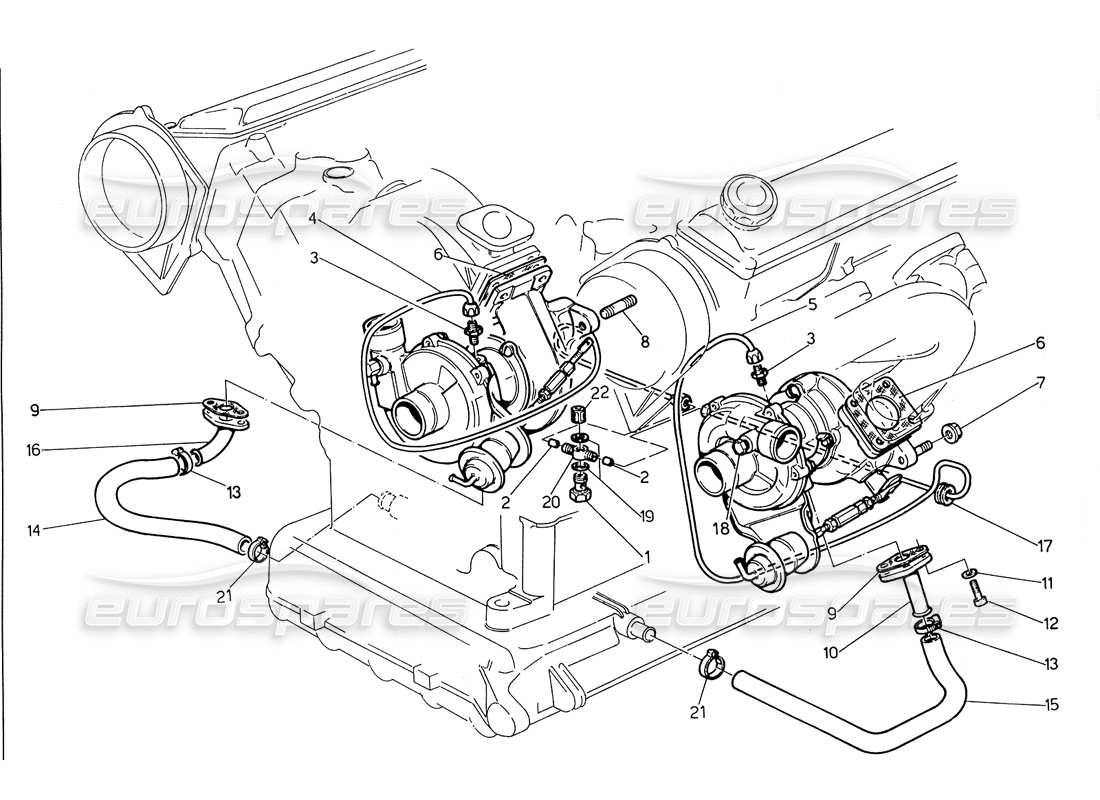

Maserati Biturbo Spider Lubrication Turboblowers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 312020344
                              CONNECTOR SCREW
                              Valid for 02, 03, 10, 11, 44, 45
                              from £4.86
                              from £4.86
                              # 002
                              MPN: 312020328
                              PIPE CONN, TO FIX. BUNDY PIPE
                              Valid for 02, 03, 10, 11, 44, 45
                              # 003
                              MPN: 312020308
                              CONNECTOR SCREW
                              Valid for 02, 03, 10, 11, 44, 45
                              from £12.28
                              from £12.28
                              # 004
                              MPN: 312020022
                              BUNDY PIPE FOR RH TURBOB.
                              Valid for 00
                              from £90.78
                              from £90.78
                              # 004
                              MPN: 342000022
                              BUNDY PIPE FOR RH TURBOB.
                              Valid for 02, 03, 10, 11, 40, 41, 44, 45
                              # 005
                              MPN: 312020021
                              BUNDY PIPE FOR LH TURBOB.
                              Valid for 00
                              from £90.78
                              from £90.78
                              # 005
                              MPN: 342000021
                              BUNDY PIPE FOR LH TURBOB.
                              Valid for 02, 03, 10, 11, 40, 41, 44, 45
                              # 006
                              MPN: 312020307
                              GASKET
                              from £5.20
                              from £5.20
                              # 006
                              MPN: 580362400
                              GASKET
                              Valid for 02, 03, 10, 11, 40, 41, 44, 45
                              from £9.45
                              from £9.45
                              This part replaces part number 342000303
                              # 007
                              MPN: 312020309
                              NUT
                              # 008
                              MPN: 312020327
                              STUD
                              from £5.54
                              from £5.54
                              # 009
                              MPN: 571362600
                              GASKET
                              from £4.62
                              from £4.62
                              This part replaces part number 312020310 which we have in stock
                              # 010
                              MPN: 312020115
                              LH OIL OUTLET CONNECTOR
                              Valid for 00
                              # 010
                              MPN: 342000115
                              LH OIL OUTLET CONNECTOR
                              Valid for 02, 03, 10, 11, 40, 41, 44, 45
                              # 013
                              MPN: 312020410
                              CLAMP
                              from £2.10
                              from £2.10
                              # 014
                              MPN: 467364300
                              OIL OUTLET SLEEVE (RH TURBOB.)
                              from £58.01
                              from £58.01
                              This part replaces part number 312020408
                              # 015
                              MPN: 452364402
                              OIL OUTLET SLEEVE (LH TURBOB.)
                              from £67.69
                              from £67.69
                              This part replaces part number 312020105
                              # 016
                              MPN: 312020108
                              OIL OUTLET CONNECTOR (RH TURBOB.)
                              Valid for 00
                              # 016
                              MPN: 342000108
                              OIL OUTLET CONNECTOR (RH TURBOB.)
                              Valid for 02, 03, 10, 11, 40, 41, 44, 45
                              # 017
                              MPN: 312020368
                              VIRE INLET
                              from £0.56
                              from £0.56
                              # 018
                              MPN: 312020376
                              PLUG
                              from £1.54
                              from £1.54
                              # 019
                              MPN: 312020353
                              GASKET
                              from £0.68
                              from £0.68
                              # 021
                              MPN: 312420504
                              CLAMP
                              from £1.07
                              from £1.07
                              # 022
                              MPN: 311850329
                              OIL FILTER FOR TURBOBLOWERS
