010.5 - Evaporation System

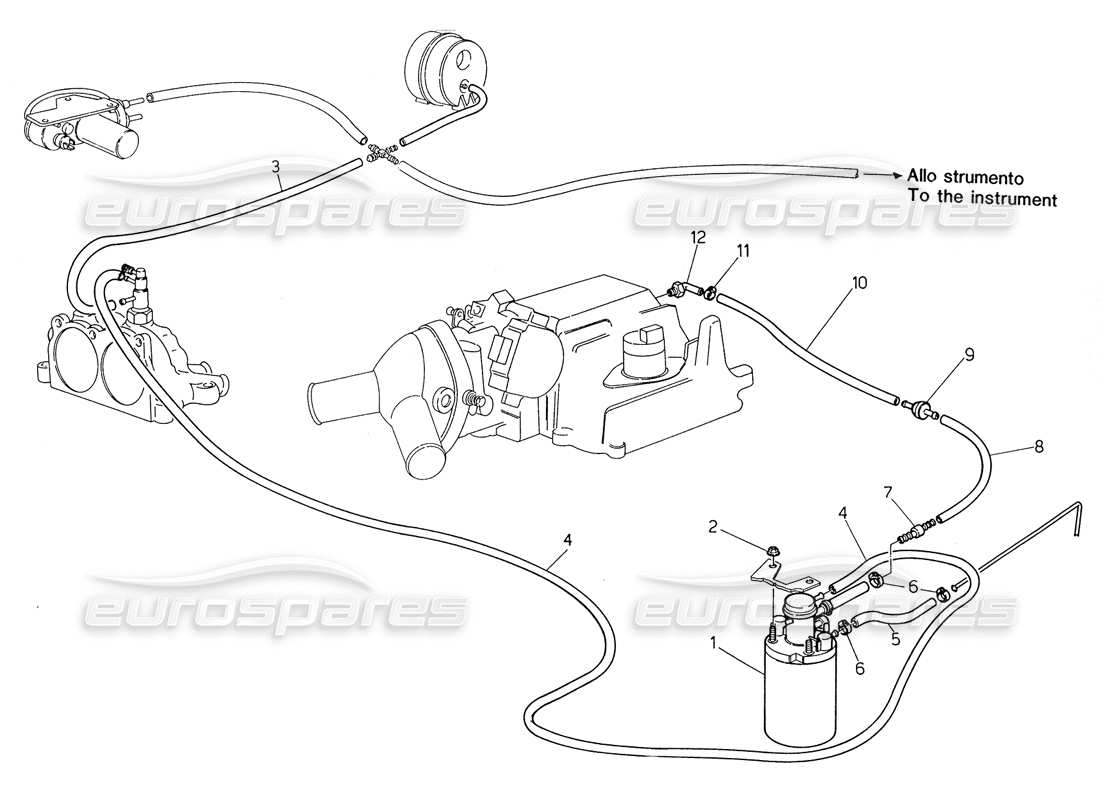

Maserati Biturbo Spider Evaporation System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319237204
CARBON FILTER
Valid for 02, 03, 10, 11, 44, 45
Supersession
Supersession
This part replaces part number 319237028 - and 1 more. Click to view details
# 002
MPN: 319237503
NUT
Valid for 02, 03, 10, 11, 44, 45
from £1.62
from £1.62
# 003
MPN: 312027336
Sleeve L=850MM
Valid for 02, 03, 10, 11, 44, 45
# 004
MPN: 312030528
Sleve L=1300MM
Valid for 02, 03, 10, 11, 44, 45
from £8.39
from £8.39
# 005
MPN: 319237510
Sleve L=1300MM
Valid for 02, 03, 10, 11, 44, 45
# 006
MPN: 30921108
CLAMP
Valid for 02, 03, 10, 11, 44, 45
# 007
MPN: 312230461
TWO WAY CONNECTOR
Valid for 02, 03, 10, 11, 44, 45
from £0.98
from £0.98
# 008
MPN: 319237511
Sleeve L=40MM
Valid for 02, 03, 10, 11, 44, 45
# 009
MPN: 319237109
NOT RETURN VALVE
Valid for 02, 03, 10, 11, 44, 45
# 010
MPN: 319237512
Sleeve L=1470MM
Valid for 02, 03, 10, 11, 44, 45
# 011
MPN: 312220435
CLAMP
Valid for 02, 03, 10, 11, 44, 45
from £0.68
from £0.68
# 012
MPN: 585064500
CONNECTOR
from £62.79
from £62.79
This part replaces part number 578064500
