010 - intake manifold throttle valve body

Maserati Biturbo Spider Intake Manifold Throttle Valve Body Parts Diagram

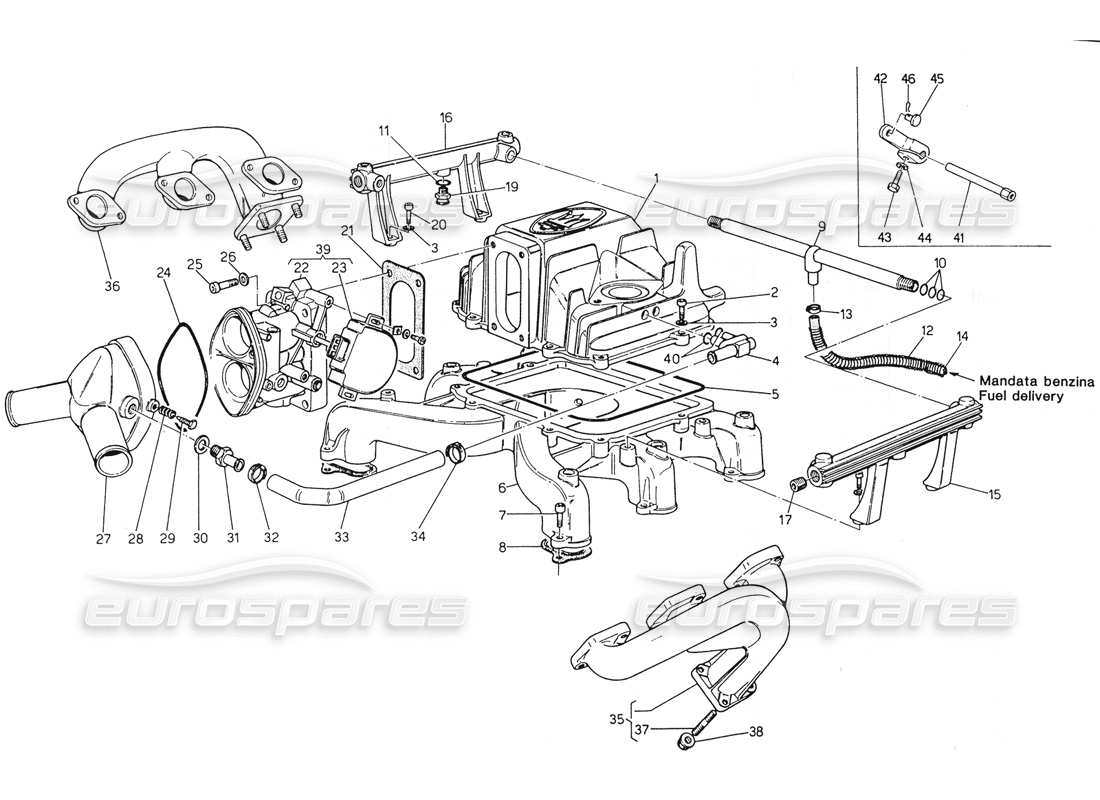

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 312220368
                                                                        THROTTLE BODY COVER
                                                                        from £157.50
                                                                        from £157.50
                                                                        # 005
                                                                        MPN: 312220309
                                                                        COVER RUBBER RING
                                                                        # 006
                                                                        MPN: 312020027
                                                                        INTAKE MANIFOLD
                                                                        from £262.50
                                                                        from £262.50
                                                                        # 007
                                                                        MPN: 14306424
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 14306421
                                                                        # 008
                                                                        MPN: 312020329
                                                                        GASKET
                                                                        from £10.95
                                                                        from £10.95
                                                                        # 009
                                                                        MPN: 312020135
                                                                        PIPE TO CONN, FUEL MANIFOLDS
                                                                        from £16.91
                                                                        from £16.91
                                                                        # 011
                                                                        MPN: 14453381
                                                                        RUBBER RING
                                                                        from £0.64
                                                                        from £0.64
                                                                        # 012
                                                                        MPN: 319237524
                                                                        PIPE L 500 MM
                                                                        from £3.04
                                                                        from £3.04
                                                                        # 014
                                                                        MPN: 312237485
                                                                        SLEEVE LS550 MM
                                                                        from £23.20
                                                                        from £23.20
                                                                        # 015
                                                                        MPN: 312020493
                                                                        LH FUEL MANIFOLD
                                                                        from £65.01
                                                                        from £65.01
                                                                        # 016
                                                                        MPN: 312020494
                                                                        RH FUEL MANIFOLD
                                                                        from £70.68
                                                                        from £70.68
                                                                        # 017
                                                                        MPN: 312020495
                                                                        PLUG
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 021
                                                                        MPN: 470063601
                                                                        GASKET
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 022
                                                                        MPN: 312222101
                                                                        Throttle valve body
                                                                        Valid for 00 (Sinchronizing throttle valve body)
                                                                        Supersession
                                                                        Supersession
                                                                        # 022
                                                                        MPN: 342200101
                                                                        Throttle valve body
                                                                        Valid for 02, 03, 10, 11, 40, 41, 44, 45
                                                                        from £729.75
                                                                        from £729.75
                                                                        # 023
                                                                        MPN: 470079901
                                                                        THROTTLE VALVE POTENTIOMETER
                                                                        from £188.73
                                                                        from £188.73
                                                                        This part replaces part number 313720114
                                                                        # 024
                                                                        MPN: 470062500
                                                                        SEAL RING
                                                                        from £2.91
                                                                        from £2.91
                                                                        # 025
                                                                        MPN: 311020320
                                                                        SCREW
                                                                        from £1.32
                                                                        from £1.32
                                                                        # 027
                                                                        MPN: 312220477
                                                                        AIR CONVEYOR
                                                                        from £154.50
                                                                        from £154.50
                                                                        # 029
                                                                        MPN: 312220479
                                                                        STOP RING
                                                                        from £1.86
                                                                        from £1.86
                                                                        # 031
                                                                        MPN: 312220481
                                                                        CONNECTOR
                                                                        Supersession
                                                                        Supersession
                                                                        # 032
                                                                        MPN: 30551117
                                                                        CLAMP
                                                                        # 034
                                                                        MPN: 312420317
                                                                        CLAMP
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 035
                                                                        MPN: 312020325
                                                                        LH EXHAUST MANIFOLD
                                                                        Valid for 00
                                                                        from £27.03
                                                                        from £27.03
                                                                        # 035
                                                                        MPN: 571362000
                                                                        LH EXHAUST MANIFOLD
                                                                        from £1,046.16
                                                                        from £1,046.16
                                                                        This part replaces part number 342000325
                                                                        # 036
                                                                        MPN: 312020326
                                                                        RH EXHAUST MANIFOLD
                                                                        Valid for 00
                                                                        # 036
                                                                        MPN: 342000326
                                                                        RH EXHAUST MANIFOLD
                                                                        Valid for 02, 03, 10, 11, 40, 41, 44, 45
                                                                        # 037
                                                                        MPN: 312020327
                                                                        BOLT
                                                                        from £5.59
                                                                        from £5.59
                                                                        # 038
                                                                        MPN: 312020309
                                                                        NUT
                                                                        # 039
                                                                        MPN: 312222001
                                                                        COMPLEX THROTTLE VALVE AND POTENTIOMETER
                                                                        Valid for 00 (Sinchronizing throttle valve body)
                                                                        from £234.18
                                                                        from £234.18
                                                                        This part replaces part number 312222101
                                                                        # 040
                                                                        MPN: 14456880
                                                                        RUBBER
                                                                        from £0.80
                                                                        from £0.80
                                                                        # 041
                                                                        MPN: 314638110
                                                                        SPINDLE
                                                                        Valid for 03, 11, 41, 45
                                                                        # 042
                                                                        MPN: 312232472
                                                                        ROD
                                                                        Valid for 03, 11, 41, 45
                                                                        # 043
                                                                        MPN: 101206016
                                                                        BOLT
                                                                        Valid for 03, 11, 41, 45
                                                                        # 044
                                                                        MPN: 135600060
                                                                        WASHER
                                                                        Valid for 03, 11, 41, 45
                                                                        from £0.78
                                                                        from £0.78
                                                                        # 045
                                                                        MPN: 312232471
                                                                        Dowel Ø 5X10
                                                                        Valid for 03, 11, 41, 45
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 046
                                                                        MPN: 146501210
                                                                        PIN
                                                                        Valid for 03, 11, 41, 45
