maserati biturbo 2.5 (1984) seat belts, mirrors and sun visor parts diagram

066 - Seat Belts, Mirrors and Sun Visor

Maserati Biturbo 2.5 (1984) Seat Belts, Mirrors and Sun Visor Parts Diagram

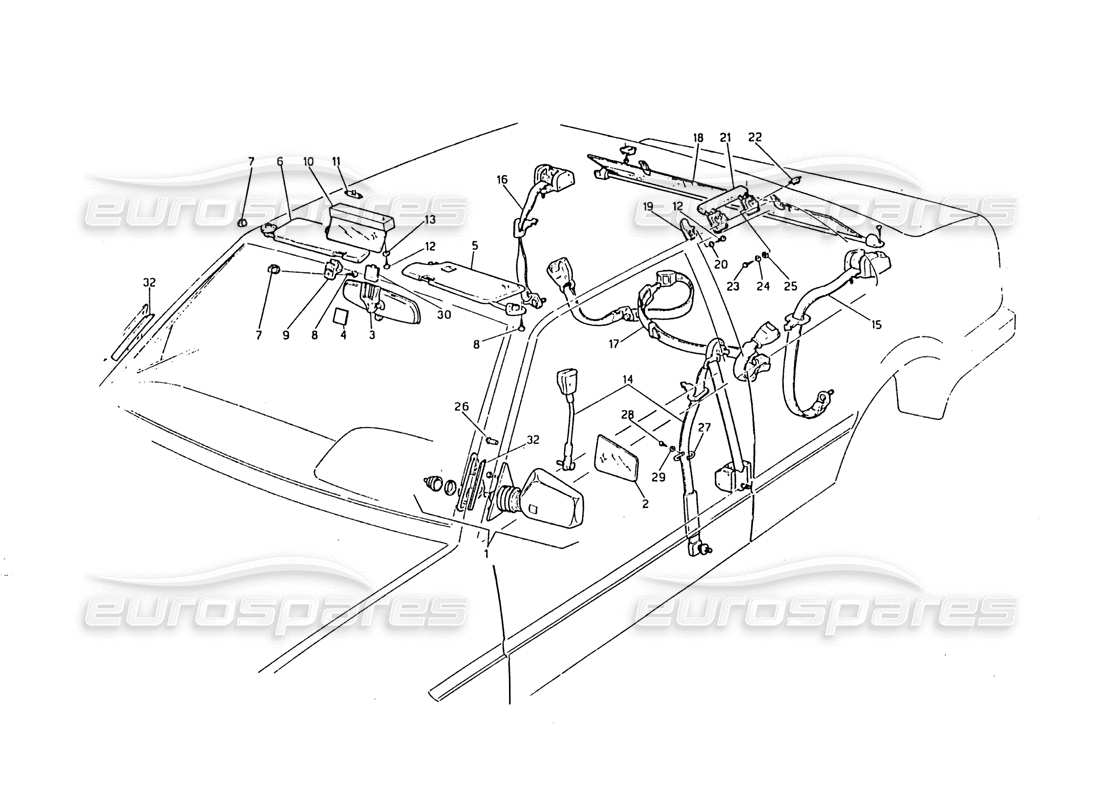

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 318120107
                                                          EXTERIOR MIRROR, ASSY
                                                          from £86.56
                                                          from £86.56
                                                          # 002
                                                          MPN: 318120317
                                                          MIRROR GLASS
                                                          from £1.62
                                                          from £1.62
                                                          # 003
                                                          MPN: 31120004
                                                          INTERIOR MIRROR
                                                          # 004
                                                          MPN: 318120345
                                                          MARKING PLATE
                                                          from £0.71
                                                          from £0.71
                                                          # 005
                                                          MPN: 318120113
                                                          LH SUN VISOR (BORDEAUX DE TOMASO- PELT)
                                                          Hand-made parts (pelts)
                                                          from £69.91
                                                          from £69.91
                                                          # 005
                                                          MPN: 318120114
                                                          RH SUN VISOR (BORDEAUX DE TOMASO- PELT)
                                                          Hand-made parts (pelts)
                                                          from £73.68
                                                          from £73.68
                                                          # 006
                                                          MPN: 318120115
                                                          LH SUN VISOR (TERRA DI SIENA DE TOMASO- PELT)
                                                          Hand-made parts (pelts)
                                                          from £69.91
                                                          from £69.91
                                                          # 006
                                                          MPN: 318120116
                                                          RH SUN VISOR (TERRA DI SIENA DE TOMASO- PELT)
                                                          Hand-made parts (pelts)
                                                          from £73.68
                                                          from £73.68
                                                          # 007
                                                          MPN: 318320341
                                                          NUT
                                                          from £0.71
                                                          from £0.71
                                                          This part replaces part number 14229280
                                                          # 009
                                                          MPN: 318120301
                                                          RETAINER
                                                          from £1.98
                                                          from £1.98
                                                          # 010
                                                          MPN: 318120003
                                                          COURTESY MIRROR WITH LIGHT
                                                          Supersession
                                                          Supersession
                                                          # 011
                                                          MPN: 87560500
                                                          12V5WBULB
                                                          from £0.90
                                                          from £0.90
                                                          # 012
                                                          MPN: 61810413
                                                          SCREW
                                                          # 013
                                                          MPN: 14104001
                                                          WASHER
                                                          # 014
                                                          MPN: 318120011
                                                          LH FRONT SAFETY BELT WITH THREE POINTS ANCHORAGE
                                                          # 014
                                                          MPN: 318120012
                                                          RH FRONT SAFETY BELT WITH THREE POINTS ANCHORAGE
                                                          from £190.54
                                                          from £190.54
                                                          # 015
                                                          MPN: 318120015
                                                          LH REAR SAFETY BELT
                                                          # 016
                                                          MPN: 318120016
                                                          RH REAR SAFETY BELT
                                                          # 017
                                                          MPN: 318120019
                                                          STATIC REAR SAFETY BELT WITH TWO POINT ANCHORAGE
                                                          # 018
                                                          MPN: 318120120
                                                          SUNSHADE ROLLING CURTAIN
                                                          # 019
                                                          MPN: 318120314
                                                          COAT HOOK
                                                          from £0.71
                                                          from £0.71
                                                          # 020
                                                          MPN: 63001050
                                                          WASHER
                                                          # 021
                                                          MPN: 318120005
                                                          HOLDING HANDLE
                                                          (Alternatives)
                                                          from £3.47
                                                          from £3.47
                                                          # 021
                                                          MPN: 318120006
                                                          HOLDING HANDLE
                                                          (Alternatives)
                                                          # 022
                                                          MPN: 318120111
                                                          BLOCK
                                                          from £0.71
                                                          from £0.71
                                                          # 024
                                                          MPN: 17106001
                                                          SPRING WASHER
                                                          # 025
                                                          MPN: 135900064
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 026
                                                          MPN: 53831329
                                                          PIN SEAT
                                                          from £0.80
                                                          from £0.80
                                                          # 027
                                                          MPN: 318120349
                                                          LH BELT GUIDE
                                                          from £2.12
                                                          from £2.12
                                                          This part replaces part number 368100365
                                                          # 027
                                                          MPN: 318120350
                                                          RH BELT GUIDE
                                                          from £2.12
                                                          from £2.12
                                                          This part replaces part number 368100366
                                                          # 028
                                                          MPN: 6105125
                                                          SCREW
                                                          # 029
                                                          MPN: 17105001
                                                          SPRING WASHER
                                                          # 030
                                                          MPN: 318120346
                                                          BASE
                                                          from £1.03
                                                          from £1.03
                                                          # 032
                                                          MPN: 318120319
                                                          LH GASKET
                                                          from £3.75
                                                          from £3.75
                                                          # 032
                                                          MPN: 318120320
                                                          RH GASKET
