Maserati Biturbo 2.5 (1984) REAR BUMPER Parts Diagram

054 - REAR BUMPER

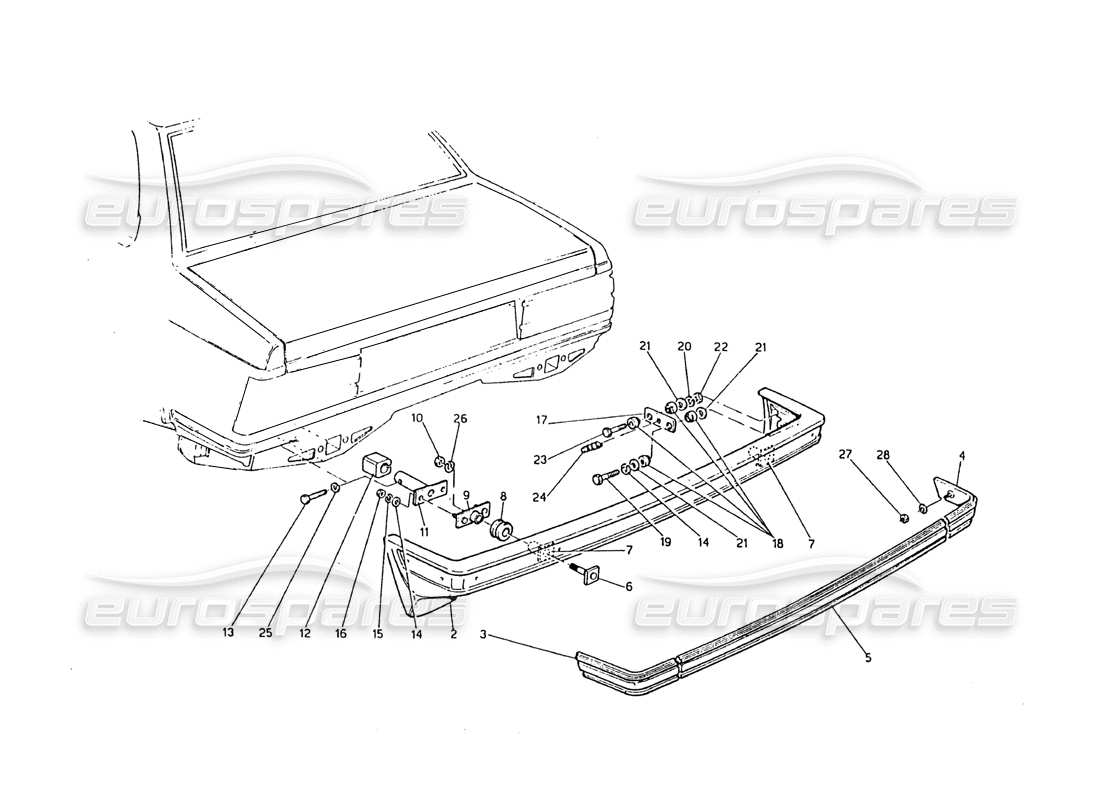

Maserati Biturbo 2.5 (1984) Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 000
                                                          MPN: 316320058
                                                          Rear bumper, assembly (Not supplied)
                                                          # 002
                                                          MPN: 316320200
                                                          REAR BUMPER
                                                          from £197.51
                                                          from £197.51
                                                          # 003
                                                          MPN: 316320203
                                                          LH REAR BUMPER SEAL
                                                          Supersession
                                                          Supersession
                                                          # 004
                                                          MPN: 316320204
                                                          RH REAR BUMPER SEAL
                                                          Supersession
                                                          Supersession
                                                          # 005
                                                          MPN: 316320206
                                                          CENTRAL SEAL FOR REAR BUMPER
                                                          Supersession
                                                          Supersession
                                                          # 006
                                                          MPN: 316320112
                                                          STIFFENER
                                                          from £47.98
                                                          from £47.98
                                                          # 007
                                                          MPN: 316320114
                                                          SPACER PLATE
                                                          from £0.70
                                                          from £0.70
                                                          # 008
                                                          MPN: 316320315
                                                          ELASTIC RUBBER LUG
                                                          from £1.96
                                                          from £1.96
                                                          # 009
                                                          MPN: 316320117
                                                          SUPPORT PLATE
                                                          from £7.05
                                                          from £7.05
                                                          # 011
                                                          MPN: 316320121
                                                          SUPPORT BRACKET
                                                          from £36.73
                                                          from £36.73
                                                          # 012
                                                          MPN: 316320325
                                                          BUMPER SUPPORT RUBBER LUG
                                                          from £1.57
                                                          from £1.57
                                                          # 014
                                                          MPN: 136110110
                                                          WASHER
                                                          from £2.19
                                                          from £2.19
                                                          # 016
                                                          MPN: 125100080
                                                          NUT
                                                          from £0.86
                                                          from £0.86
                                                          # 017
                                                          MPN: 316320336
                                                          LEVER
                                                          # 018
                                                          MPN: 316320334
                                                          SPACER
                                                          from £1.17
                                                          from £1.17
                                                          # 020
                                                          MPN: 135300084
                                                          SPRING WASHER -
                                                          # 021
                                                          MPN: 163030080
                                                          WASHER
                                                          from £1.17
                                                          from £1.17
                                                          # 022
                                                          MPN: 125100080
                                                          NUT
                                                          from £0.86
                                                          from £0.86
                                                          # 024
                                                          MPN: 374330426
                                                          SILENTBLOC ADJUSTER
                                                          from £1.10
                                                          from £1.10
                                                          This part replaces part number 53431319
                                                          # 025
                                                          MPN: 135300150
                                                          SPRING WASHER
                                                          from £1.10
                                                          from £1.10
                                                          # 026
                                                          MPN: 136110110
                                                          WASHER
                                                          from £2.19
                                                          from £2.19
                                                          # 028
                                                          MPN: 136110055
                                                          WASHER
                                                          from £0.78
                                                          from £0.78
