maserati biturbo 2.5 (1984) radiator grill - finishers - fixed glasses parts diagram

052 - Radiator Grill - Finishers - Fixed Glasses

Maserati Biturbo 2.5 (1984) Radiator Grill - Finishers - Fixed Glasses Parts Diagram

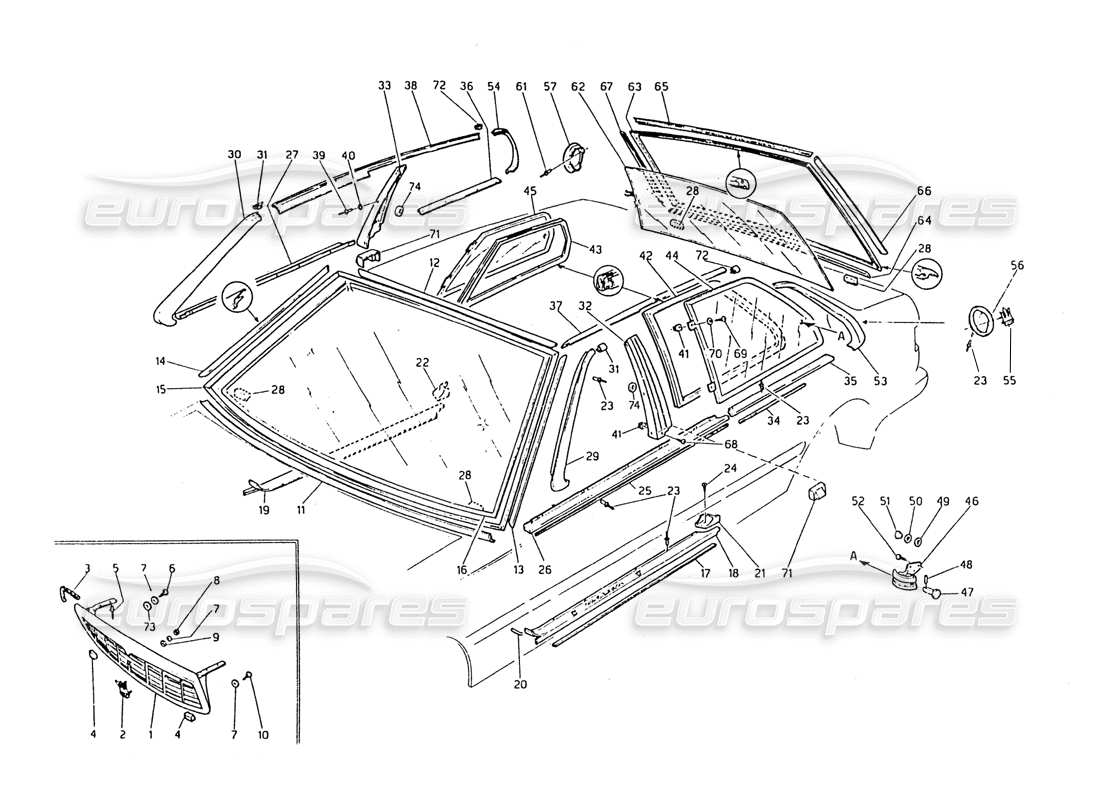

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                          #
                                                                                                                                          Part number
                                                                                                                                          Description
                                                                                                                                          Price
                                                                                                                                          # 001
                                                                                                                                          MPN: 314120005
                                                                                                                                          RADIATOR GRILLE
                                                                                                                                          from £199.50
                                                                                                                                          from £199.50
                                                                                                                                          # 002
                                                                                                                                          MPN: 314120109
                                                                                                                                          Badge
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 003
                                                                                                                                          MPN: 314120317
                                                                                                                                          SEALING
                                                                                                                                          from £3.50
                                                                                                                                          from £3.50
                                                                                                                                          # 004
                                                                                                                                          MPN: 314120321
                                                                                                                                          BUFFER (NOT SUPPLIED)
                                                                                                                                          # 005
                                                                                                                                          MPN: 64301408
                                                                                                                                          RIVET
                                                                                                                                          # 007
                                                                                                                                          MPN: 135600050
                                                                                                                                          SPRING WASHER
                                                                                                                                          from £0.79
                                                                                                                                          from £0.79
                                                                                                                                          # 008
                                                                                                                                          MPN: 125100050
                                                                                                                                          NUT
                                                                                                                                          from £0.69
                                                                                                                                          from £0.69
                                                                                                                                          # 011
                                                                                                                                          MPN: 317720301
                                                                                                                                          FINISHER, LOWER
                                                                                                                                          from £53.73
                                                                                                                                          from £53.73
                                                                                                                                          This part replaces part number 317753301
                                                                                                                                          # 012
                                                                                                                                          MPN: 317720302
                                                                                                                                          FINISHER, UPPER
                                                                                                                                          from £6.22
                                                                                                                                          from £6.22
                                                                                                                                          This part replaces part number 317753302
                                                                                                                                          # 013
                                                                                                                                          MPN: 317720303
                                                                                                                                          LH SIDE FINISHER
                                                                                                                                          from £4.95
                                                                                                                                          from £4.95
                                                                                                                                          This part replaces part number 317753303
                                                                                                                                          # 014
                                                                                                                                          MPN: 317720304
                                                                                                                                          RH SIDE FINISHER
                                                                                                                                          from £4.95
                                                                                                                                          from £4.95
                                                                                                                                          This part replaces part number 317753304
                                                                                                                                          # 015
                                                                                                                                          MPN: 317720013
                                                                                                                                          WINDSHIELD WEATHERSTRIP SET
                                                                                                                                          from £999.50
                                                                                                                                          from £999.50
                                                                                                                                          # 016
                                                                                                                                          MPN: 317720120
                                                                                                                                          WINDSHIELD GREEN TINTED
                                                                                                                                          from £900.00
                                                                                                                                          from £900.00
                                                                                                                                          This part replaces part number 317747120
                                                                                                                                          # 017
                                                                                                                                          MPN: 318320312
                                                                                                                                          DOUBLE-ADHESIVE STRIP FOR FINISHER
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 018
                                                                                                                                          MPN: 318320309
                                                                                                                                          LH FINISHER
                                                                                                                                          from £5.35
                                                                                                                                          from £5.35
                                                                                                                                          # 019
                                                                                                                                          MPN: 318320310
                                                                                                                                          RH FINISHER
                                                                                                                                          from £5.35
                                                                                                                                          from £5.35
                                                                                                                                          # 020
                                                                                                                                          MPN: 318320307
                                                                                                                                          LH FRONT WEATHERSTRIP
                                                                                                                                          from £1.11
                                                                                                                                          from £1.11
                                                                                                                                          # 020
                                                                                                                                          MPN: 318320308
                                                                                                                                          RH FRONT WEATHERSTRIP
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 021
                                                                                                                                          MPN: 318320313
                                                                                                                                          END PIECE FOR LH FINISHER
                                                                                                                                          from £39.25
                                                                                                                                          from £39.25
                                                                                                                                          # 022
                                                                                                                                          MPN: 318320314
                                                                                                                                          END PIECE FOR RH FINISHER
                                                                                                                                          from £39.25
                                                                                                                                          from £39.25
                                                                                                                                          # 024
                                                                                                                                          MPN: 119942160
                                                                                                                                          SCREW
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 025
                                                                                                                                          MPN: 317720323
                                                                                                                                          DOUBLE-ADHESIVE STRIP FOR FINISHER
                                                                                                                                          from £1.11
                                                                                                                                          from £1.11
                                                                                                                                          # 026
                                                                                                                                          MPN: 317720315
                                                                                                                                          LH FINISHER
                                                                                                                                          from £7.39
                                                                                                                                          from £7.39
                                                                                                                                          # 027
                                                                                                                                          MPN: 317720316
                                                                                                                                          RH FINISHER
                                                                                                                                          from £6.84
                                                                                                                                          from £6.84
                                                                                                                                          # 028
                                                                                                                                          MPN: 317720308
                                                                                                                                          RUBBER LUG
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 029
                                                                                                                                          MPN: 318320329
                                                                                                                                          LH FINISHER
                                                                                                                                          from £48.02
                                                                                                                                          from £48.02
                                                                                                                                          # 030
                                                                                                                                          MPN: 318320330
                                                                                                                                          RH FINISHER
                                                                                                                                          from £30.82
                                                                                                                                          from £30.82
                                                                                                                                          # 031
                                                                                                                                          MPN: 318320335
                                                                                                                                          FRONT UNION
                                                                                                                                          from £16.56
                                                                                                                                          from £16.56
                                                                                                                                          # 032
                                                                                                                                          MPN: 318320339
                                                                                                                                          LH FINISHER
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 033
                                                                                                                                          MPN: 318320340
                                                                                                                                          RH FINISHER
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 034
                                                                                                                                          MPN: 317720373
                                                                                                                                          DOUBLE-ADHESIVE FOR MOULDING
                                                                                                                                          from £1.11
                                                                                                                                          from £1.11
                                                                                                                                          # 035
                                                                                                                                          MPN: 317720371
                                                                                                                                          LH FINISHER
                                                                                                                                          from £3.29
                                                                                                                                          from £3.29
                                                                                                                                          # 036
                                                                                                                                          MPN: 317720372
                                                                                                                                          RH FINISHER
                                                                                                                                          from £8.34
                                                                                                                                          from £8.34
                                                                                                                                          # 037
                                                                                                                                          MPN: 318320331
                                                                                                                                          LH FINISHER
                                                                                                                                          from £4.48
                                                                                                                                          from £4.48
                                                                                                                                          # 038
                                                                                                                                          MPN: 318320332
                                                                                                                                          RH FINISHER
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 039
                                                                                                                                          MPN: 64323311
                                                                                                                                          RIVET
                                                                                                                                          # 040
                                                                                                                                          MPN: 135000043
                                                                                                                                          WASHER
                                                                                                                                          from £1.11
                                                                                                                                          from £1.11
                                                                                                                                          # 041
                                                                                                                                          MPN: 318320341
                                                                                                                                          NUT
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          This part replaces part number 14229280
                                                                                                                                          # 043
                                                                                                                                          MPN: 317720150
                                                                                                                                          I WEATHERSTRIP RH
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 044
                                                                                                                                          MPN: 317720135
                                                                                                                                          LH REAR SIDE GLASS, ASSY (GREEN)
                                                                                                                                          # 044
                                                                                                                                          MPN: 317720137
                                                                                                                                          LH REAR SIDE GLASS, ASSY (BRONZE)
                                                                                                                                          from £82.12
                                                                                                                                          from £82.12
                                                                                                                                          # 045
                                                                                                                                          MPN: 317720136
                                                                                                                                          RH REAR SIDE GLASS, ASSY (GREEN)
                                                                                                                                          # 045
                                                                                                                                          MPN: 317720138
                                                                                                                                          RH REAR SIDE GLASS, ASSY (BRONZE)
                                                                                                                                          from £82.12
                                                                                                                                          from £82.12
                                                                                                                                          # 046
                                                                                                                                          MPN: 317720145
                                                                                                                                          LH GLASS FASTENER
                                                                                                                                          from £5.50
                                                                                                                                          from £5.50
                                                                                                                                          # 046
                                                                                                                                          MPN: 317720146
                                                                                                                                          RH GLASS FASTENER
                                                                                                                                          from £5.50
                                                                                                                                          from £5.50
                                                                                                                                          # 047
                                                                                                                                          MPN: 317720398
                                                                                                                                          PIN TO FIX GLASS
                                                                                                                                          from £1.44
                                                                                                                                          from £1.44
                                                                                                                                          # 048
                                                                                                                                          MPN: 144203530
                                                                                                                                          PIN
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 049
                                                                                                                                          MPN: 317720399
                                                                                                                                          SEAL
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 050
                                                                                                                                          MPN: 317720400
                                                                                                                                          SEAL
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 051
                                                                                                                                          MPN: 317720401
                                                                                                                                          RING
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 052
                                                                                                                                          MPN: 113305016
                                                                                                                                          SCREW
                                                                                                                                          # 053
                                                                                                                                          MPN: 318353333
                                                                                                                                          LH FINISHER
                                                                                                                                          Supplied two pieces
                                                                                                                                          from £58.27
                                                                                                                                          from £58.27
                                                                                                                                          This part replaces part number 318320333 - and 1 more. Click to view details
                                                                                                                                          # 054
                                                                                                                                          MPN: 318320334
                                                                                                                                          RH FINISHER
                                                                                                                                          Supplied two pieces
                                                                                                                                          from £14.78
                                                                                                                                          from £14.78
                                                                                                                                          # 055
                                                                                                                                          MPN: 318320350
                                                                                                                                          «Maserati» BADGE
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 056
                                                                                                                                          MPN: 318320347
                                                                                                                                          bezel
                                                                                                                                          # 057
                                                                                                                                          MPN: 318320348
                                                                                                                                          FLAP BEZEL FOR FUEL FILLER
                                                                                                                                          from £8.72
                                                                                                                                          from £8.72
                                                                                                                                          # 061
                                                                                                                                          MPN: 164353062
                                                                                                                                          RIVET
                                                                                                                                          With invisible filaments at your request
                                                                                                                                          # 062
                                                                                                                                          MPN: 317720156
                                                                                                                                          TINTED, HEATED REAR WINDOW (GREEN)
                                                                                                                                          from £628.95
                                                                                                                                          from £628.95
                                                                                                                                          # 062
                                                                                                                                          MPN: 317720157
                                                                                                                                          TINTED, HEATED BACKLIGHT (BRONZE)
                                                                                                                                          from £243.25
                                                                                                                                          from £243.25
                                                                                                                                          # 062
                                                                                                                                          MPN: 317720159
                                                                                                                                          TINTED, HEATED BACKLIGHT (GREEN)
                                                                                                                                          # 063
                                                                                                                                          MPN: 317720014
                                                                                                                                          WEATHERSTRIP SET
                                                                                                                                          from £13.54
                                                                                                                                          from £13.54
                                                                                                                                          # 064
                                                                                                                                          MPN: 317720421
                                                                                                                                          LOWER FINISHER
                                                                                                                                          from £5.36
                                                                                                                                          from £5.36
                                                                                                                                          # 065
                                                                                                                                          MPN: 317720422
                                                                                                                                          UPPER FINISHER
                                                                                                                                          from £3.61
                                                                                                                                          from £3.61
                                                                                                                                          # 066
                                                                                                                                          MPN: 317720423
                                                                                                                                          LH SIDE FINISHER
                                                                                                                                          from £2.19
                                                                                                                                          from £2.19
                                                                                                                                          # 067
                                                                                                                                          MPN: 317720424
                                                                                                                                          RH SIDE FINISHER
                                                                                                                                          from £6.99
                                                                                                                                          from £6.99
                                                                                                                                          # 068
                                                                                                                                          MPN: 119142160
                                                                                                                                          SCREW
                                                                                                                                          from £0.87
                                                                                                                                          from £0.87
                                                                                                                                          # 069
                                                                                                                                          MPN: 21608061
                                                                                                                                          SCREW
                                                                                                                                          # 070
                                                                                                                                          MPN: 15105001
                                                                                                                                          WASHER
                                                                                                                                          # 071
                                                                                                                                          MPN: 1318320343
                                                                                                                                          LH CENTRAL WEATHERSTRIP
                                                                                                                                          # 071
                                                                                                                                          MPN: 1318320344
                                                                                                                                          RH CENTRAL WEATHERSTRIP
                                                                                                                                          # 072
                                                                                                                                          MPN: 318320336
                                                                                                                                          REAR UNION
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          # 073
                                                                                                                                          MPN: 169020005
                                                                                                                                          WASHER
                                                                                                                                          from £1.11
                                                                                                                                          from £1.11
                                                                                                                                          # 074
                                                                                                                                          MPN: 318320342
                                                                                                                                          GASKET
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
