maserati biturbo 2.5 (1984) body shell - front panel, roof panel, doors, bonnet, boot lid parts diagram

047 - Body Shell - Front Panel, Roof Panel, Doors, Bonnet, Boot Lid

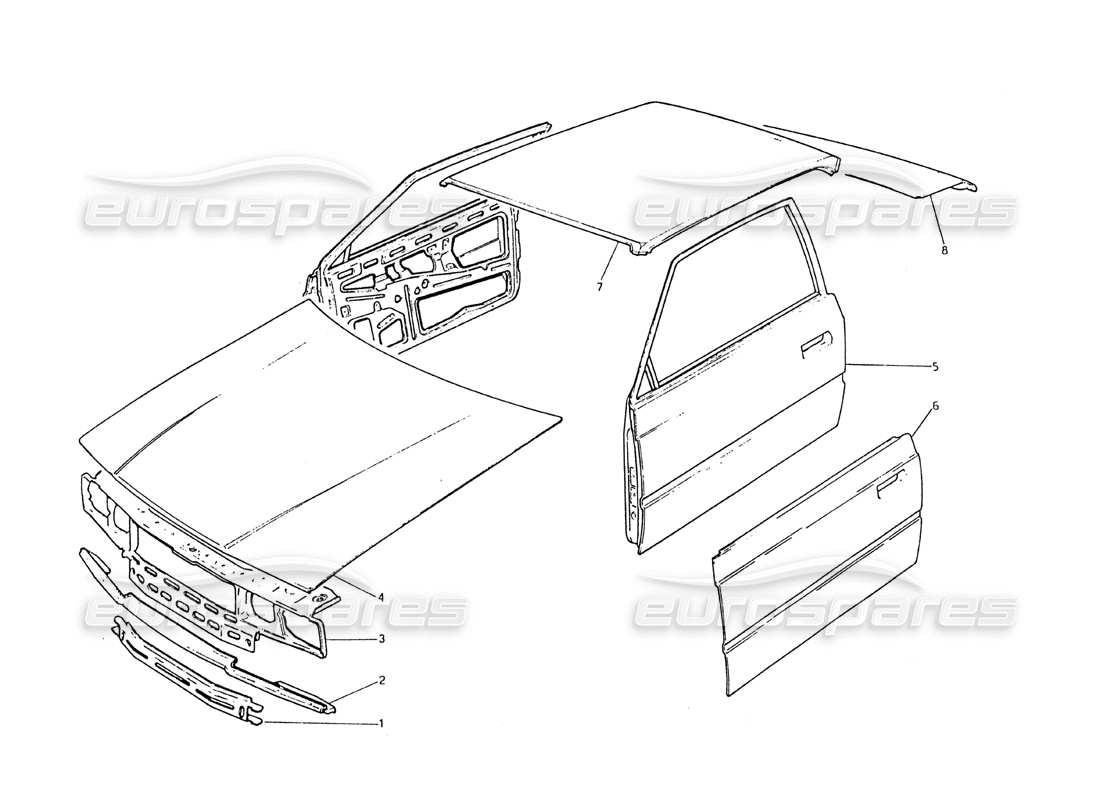

Maserati Biturbo 2.5 (1984) Body Shell - Front Panel, Roof Panel, Doors, Bonnet, Boot Lid Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 311320300
                  FRONT INSIDE BODY PANEL
                  from £64.56
                  from £64.56
                  # 002
                  MPN: 311320302
                  FRONT OUTSIDE BODY PANEL
                  # 003
                  MPN: 311320103
                  FRONT BODY PANEL, ASSY
                  Supersession
                  Supersession
                  # 004
                  MPN: 314320100
                  ENGINE HOOD ASSY
                  from £237.87
                  from £237.87
                  # 005
                  MPN: 314520103
                  LH SIDE DOOR, ASSY
                  from £419.80
                  from £419.80
                  This part replaces part number 314520301
                  # 005
                  MPN: 314520104
                  RH SIDE DOOR, ASSY
                  from £419.80
                  from £419.80
                  This part replaces part number 314520302 - and 1 more. Click to view details
                  # 006
                  MPN: 314520301
                  OUTSIDE BODY PANEL (OR LH SIDE DOOR
                  Supersession
                  Supersession
                  # 006
                  MPN: 314520302
                  OUTSIDE BODY PANEL FOR RH SIDE DOOR
                  Supersession
                  Supersession
                  # 007
                  MPN: 312520465
                  OUTSIDE BODY PANEL FOR ROOF
                  from £120.03
                  from £120.03
                  # 008
                  MPN: 314720100
                  LUGGAGE HOOD, ASSY
                  from £329.23
                  from £329.23
