![maserati biturbo 2.5 (1984) hubs, rear brakes and drive shafts parts diagram](/img/CxEAAMTaOW5_r8iyWJZL35UUQRmiUWiQ6XycSz8uakHjUcBzsrFlAAM%3D/maserati-biturbo-2.5-(1984)-part-diagram-041.webp)

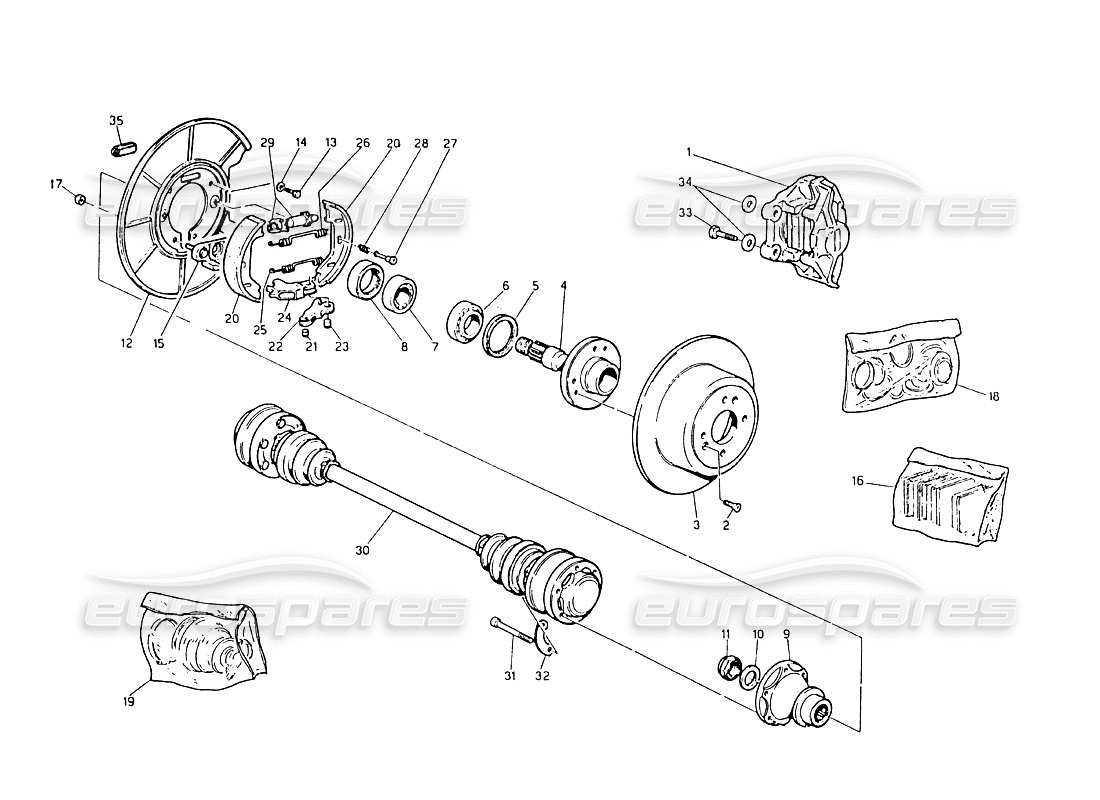

041 - Hubs, Rear Brakes and Drive Shafts
Maserati Biturbo 2.5 (1984) Hubs, Rear Brakes and Drive Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317220111
REAR CALIPER LH ASSEMBLY
Supersession
Supersession
# 001
MPN: 317220112
REAR CALIPER RH ASSEMBLY
Supersession
Supersession
# 002
MPN: 108506020
BRAKE DISC BOLT
from £1.12
from £1.12
# 003
MPN: 317220350
REAR BRAKE DISC
from £24.72
from £24.72
# 004
MPN: 317220342
REAR HUB SHAFT
from £19.56
from £19.56
# 005
MPN: 317220346
SEALING RING
from £2.34
from £2.34
# 006
MPN: 317220343
OUTER BEARING
from £38.16
from £38.16
# 007
MPN: 317220344
INNER BEARING
from £10.01
from £10.01
# 008
MPN: 317220347
SEALING RING
from £1.09
from £1.09
# 009
MPN: 317220355
SLEEVE
from £44.06
from £44.06
This part replaces part number 317220345
# 010
MPN: 317220348
REAR THRUST RING FOR SLEEVE
Supersession
Supersession
# 011
MPN: 317220340
GROOVED NUT
Supersession
Supersession
# 012
MPN: 317020111
LH REAR BRAKE COVER
from £73.80
from £73.80
# 012
MPN: 317020112
RH REAR BRAKE COVER
from £73.80
from £73.80
# 013
MPN: 101206010
BOLT
# 014
MPN: 135600060
SPRING WASHER
from £0.78
from £0.78
# 015
MPN: 318020115
BRACKET FOR HAND BRAKE CABLE
from £18.24
from £18.24
# 016
MPN: 310220035
REAR BRAKE PADS SET
Supersession
Supersession
# 017
MPN: 128350080
NUT
Supersession
Supersession
# 018
MPN: 310220032
REAR BRAKE CALIPER OVERHAUL SET
each caliper
from £103.84
from £103.84
# 019
MPN: 310220036
BELLOW AND CLIPS SET
from £95.62
from £95.62
# 020
MPN: 318020111
BRAKE SHOE ASSEMBLY
Supersession
Supersession
# 021
MPN: 318020332
PIN FOR LEVER
from £1.40
from £1.40
# 022
MPN: 318020330
CONTROL LEVER
from £25.86
from £25.86
# 023
MPN: 318020333
PIN FOR LEVER
from £1.87
from £1.87
# 024
MPN: 318020331
PRESSURE SHOE
from £32.76
from £32.76
# 025
MPN: 318020334
LOWER DRAW SPRING
from £19.97
from £19.97
# 026
MPN: 318020335
UPPER DRAW SPRING
from £1.43
from £1.43
# 027
MPN: 318020336
BRAKE SHOE PIN
from £4.79
from £4.79
# 028
MPN: 318020337
SPRING FOR PIN
from £0.87
from £0.87
# 029
MPN: 318020113
ADJUSTING DEVICE FOR HAND BRAKE
from £6.86
from £6.86
# 030
MPN: 316020105
DRIVE SHAFT ASSEMBLY
from £442.19
from £442.19
# 031
MPN: 108010055
BOLT
# 032
MPN: 316020310
PLATE FOR BOLT
from £1.95
from £1.95
# 033
MPN: 101210030
BOLT
from £1.56
from £1.56
# 034
MPN: 138420120
WASHER
Supersession
Supersession
# 035
MPN: 317020328
PLUG
from £0.70
from £0.70
