maserati biturbo 2.5 (1984) carburetor, choke and accelerator controls parts diagram

021 - Carburetor, Choke and Accelerator Controls

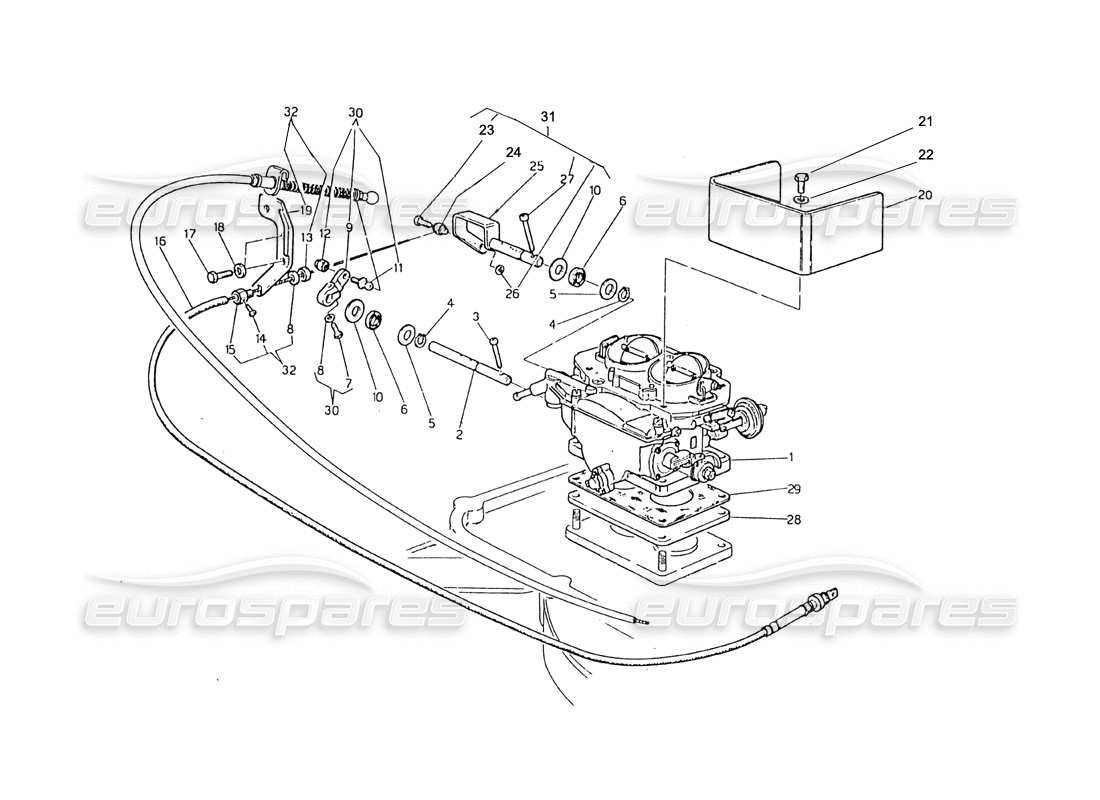

Maserati Biturbo 2.5 (1984) Carburetor, Choke and Accelerator Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 312225003
                                                        WEBER- CARBURETOR
                                                        Not valid for CH and S.
                                                        Maserati PART 312225003 Genuine Maserati Part - New (to order)
                                                        # 002
                                                        MPN: 312220400
                                                        ACCELERATOR SHAFT
                                                        from £2.31
                                                        from £2.31
                                                        ACCELERATOR SHAFT Genuine Maserati Part - New (to order)
                                                        # 003
                                                        MPN: 108004030
                                                        SCREW
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 004
                                                        MPN: 150800090
                                                        RETAINING RING
                                                        from £0.47
                                                        from £0.47
                                                        SEEGER Genuine Maserati Part - New (to order)
                                                        # 005
                                                        MPN: 14496601
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 006
                                                        MPN: 312220408
                                                        SEAL RING
                                                        from £1.93
                                                        from £1.93
                                                        SEALING RING Genuine Maserati Part - New (to order)
                                                        # 008
                                                        MPN: 135600060
                                                        WASHER
                                                        from £0.78
                                                        from £0.78
                                                        WASHER 6.15X11.8 Genuine Maserati Part - New In stock
                                                        # 009
                                                        MPN: 312220401
                                                        LEVER
                                                        from £34.38
                                                        from £34.38
                                                        LEVER Genuine Maserati Part - New (to order)
                                                        # 010
                                                        MPN: 312220409
                                                        WASHER
                                                        WASHER Genuine Maserati Part - New (to order)
                                                        # 011
                                                        MPN: 318420350
                                                        BALL-END PIN
                                                        from £2.31
                                                        from £2.31
                                                        BALL-END PIN Genuine Maserati Part - New (to order)
                                                        # 012
                                                        MPN: 312220425
                                                        NUT
                                                        NUT Genuine Maserati Part - New (to order)
                                                        # 014
                                                        MPN: 312220418
                                                        BOLT
                                                        BOLT Genuine Maserati Part - New (to order)
                                                        # 015
                                                        MPN: 312220407
                                                        NIPPLE
                                                        NIPPLE Genuine Maserati Part - New (to order)
                                                        # 016
                                                        MPN: 318220114
                                                        CHOKE CABLE
                                                        from £91.37
                                                        from £91.37
                                                        STARTER CONTROL CABLE Genuine Maserati Part - New (to order)
                                                        # 018
                                                        MPN: 312220411
                                                        WASHER (NOT SUPPLIED)
                                                        from £0.47
                                                        from £0.47
                                                        ROSETTA Genuine Maserati Part - New (to order)
                                                        # 019
                                                        MPN: 312220405
                                                        PLATE
                                                        Not valid for CH and S.
                                                        from £7.73
                                                        from £7.73
                                                        PLATE Genuine Maserati Part - New (to order)
                                                        # 020
                                                        MPN: 312220427
                                                        SUPPORT PLATE
                                                        from £10.97
                                                        from £10.97
                                                        SUPPORT PLATE Genuine Maserati Part - New (to order)
                                                        # 021
                                                        MPN: 101205010
                                                        SCREW FIX. PLATE
                                                        Maserati PART 101205010 Genuine Maserati Part - New (to order)
                                                        # 022
                                                        MPN: 312220428
                                                        WASHER
                                                        WASHER Genuine Maserati Part - New (to order)
                                                        # 023
                                                        MPN: 312220412
                                                        SCREW
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 024
                                                        MPN: 312220406
                                                        NIPPLE
                                                        NIPPLE Genuine Maserati Part - New (to order)
                                                        # 025
                                                        MPN: 312220110
                                                        CHOKE LEVER
                                                        Not valid for CH and S.
                                                        CHOKE LEVER Genuine Maserati Part - New (to order)
                                                        # 026
                                                        MPN: 312220410
                                                        CLAMP
                                                        from £0.70
                                                        from £0.70
                                                        CLAMP Genuine Maserati Part - New (to order)
                                                        # 027
                                                        MPN: 108004040
                                                        SCREW
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 028
                                                        MPN: 312220421
                                                        SPACER
                                                        SPACER Genuine Maserati Part - New (to order)
                                                        # 029
                                                        MPN: 312220422
                                                        CARBURETOR GASKET
                                                        Maserati PART 312220422 Genuine Maserati Part - New (to order)
                                                        # 030
                                                        MPN: 312220007
                                                        ACCELERATOR LEVER ASSEMBLY
                                                        from £34.38
                                                        from £34.38
                                                        ACCELERATOR LEVER ASSEMBLY Genuine Maserati Part - New (to order)
                                                        # 031
                                                        MPN: 312220008
                                                        CHOKE LEVER ASSEMBLY
                                                        Not valid for CH and S.
                                                        from £19.39
                                                        from £19.39
                                                        CHOKE ASSEMBLY Genuine Maserati Part - New (to order)
                                                        # 032
                                                        MPN: 312220009
                                                        ASSEMBLY PLATE
                                                        Not valid for CH and S.
                                                        from £10.04
                                                        from £10.04
                                                        ASSEMBLY PLATE Genuine Maserati Part - New (to order)
