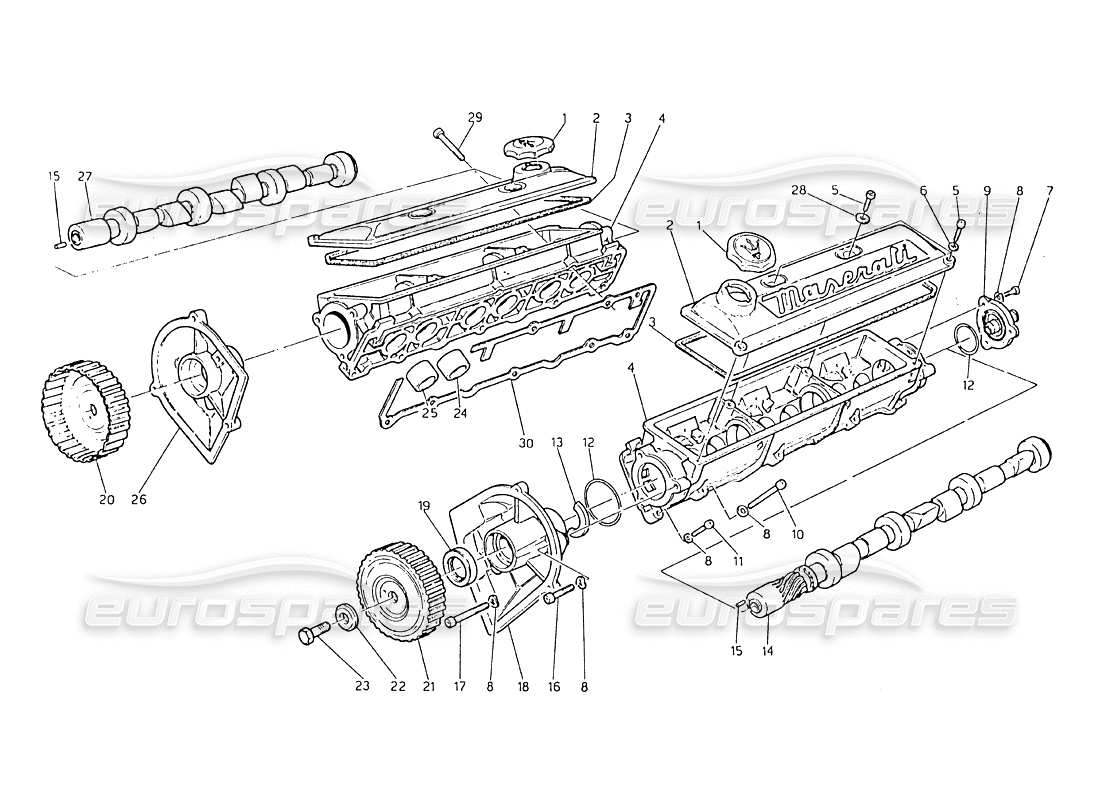

Maserati Biturbo 2.5 (1984) Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 002
                                                              MPN: 311020328
                                                              COVER
                                                              Supersession
                                                              Supersession
                                                              # 003
                                                              MPN: 311020321

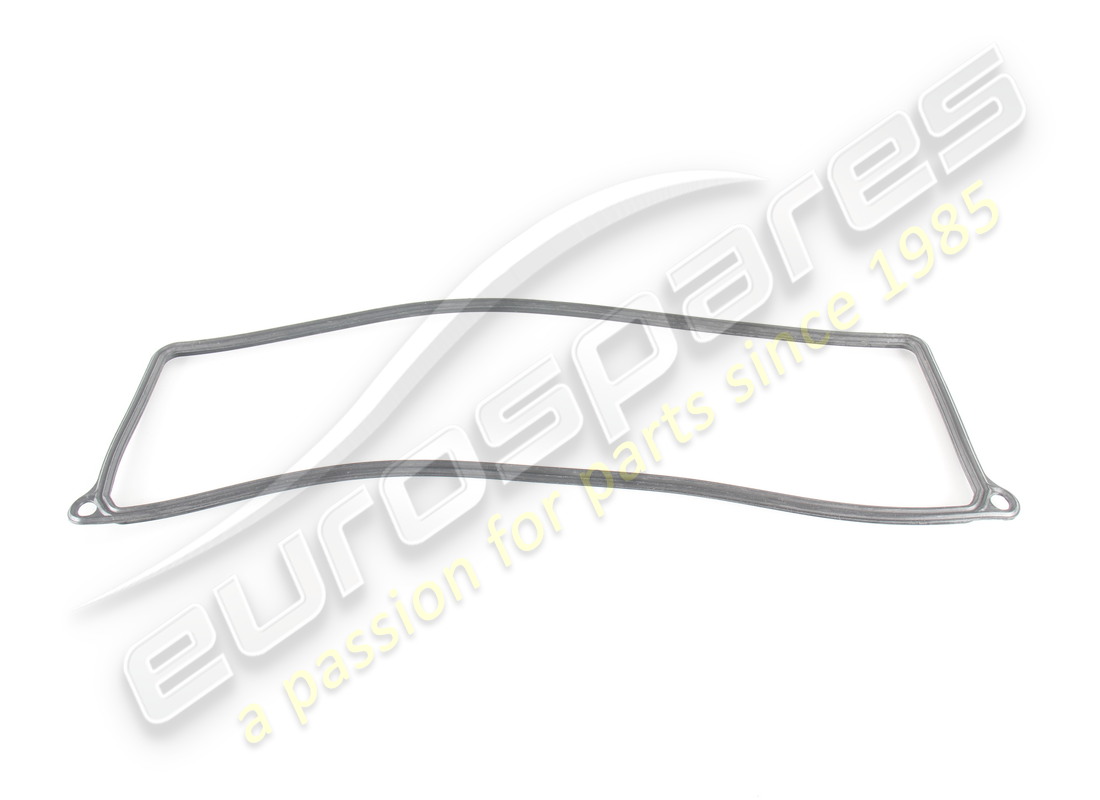

                                                              RUBBER GASKET
                                                              from £13.60
                                                              from £13.60
                                                              # 004
                                                              MPN: 311020319
                                                              CAMSHAFT HOUSING
                                                              # 009
                                                              MPN: 311025329
                                                              OIL BLOWER COVER
                                                              from £1.82
                                                              from £1.82
                                                              This part replaces part number 311020329
                                                              # 012
                                                              MPN: 14459880
                                                              RUBBER
                                                              from £0.71
                                                              from £0.71
                                                              # 013
                                                              MPN: 311020313
                                                              STOP PLATE FOR CAMSHAFT
                                                              # 014
                                                              MPN: 311020315
                                                              LH CAMSHAFT
                                                              # 015
                                                              MPN: 311020310
                                                              DOWEL
                                                              from £2.39
                                                              from £2.39
                                                              # 016
                                                              MPN: 14306424
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14306421
                                                              # 018
                                                              MPN: 311020305
                                                              LH CYLINDER HEAD COVER
                                                              from £229.39
                                                              from £229.39
                                                              # 019
                                                              MPN: 311020368

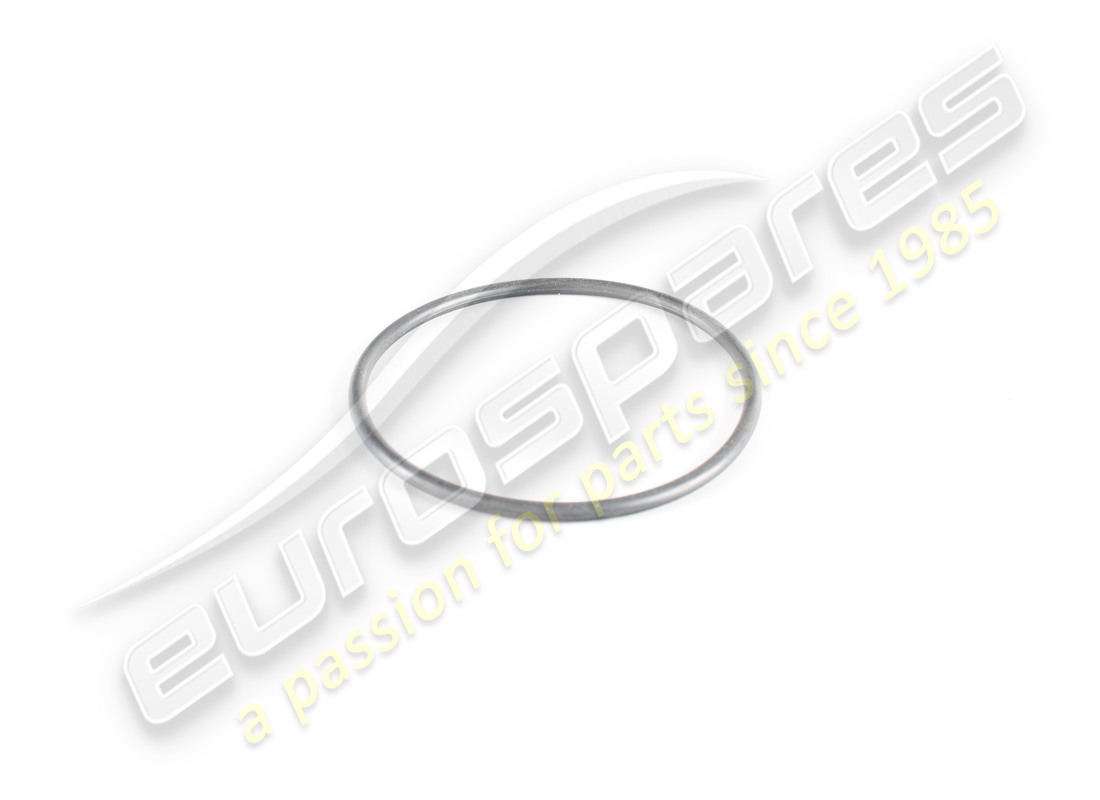

                                                              SEAL RING
                                                              from £8.25
                                                              from £8.25
                                                              This part replaces part number 190400351
                                                              # 020
                                                              MPN: 311020302
                                                              RH CAMSHAFT PULLEY
                                                              Supersession
                                                              Supersession
                                                              # 021
                                                              MPN: 311020301
                                                              LH CAMSHAFT PULLEY
                                                              # 022
                                                              MPN: 311020304
                                                              WASHER
                                                              from £6.77
                                                              from £6.77
                                                              # 024
                                                              MPN: 311020325
                                                              INLET VALVE COLLAR TOP
                                                              from £12.59
                                                              from £12.59
                                                              # 025
                                                              MPN: 311020326
                                                              EXHAUST VALVE COLLAR TOP
                                                              from £11.79
                                                              from £11.79
                                                              # 026
                                                              MPN: 311020306
                                                              RH CYLINDER HEAD COVER
                                                              Supersession
                                                              Supersession
                                                              # 027
                                                              MPN: 311020316
                                                              RH CAMSHAFT
                                                              from £138.33
                                                              from £138.33
                                                              # 028
                                                              MPN: 311020323
                                                              SNAP RING
                                                              from £1.11
                                                              from £1.11
                                                              # 030
                                                              MPN: 310650421
                                                              FLAT GASKET
                                                              from £10.45
                                                              from £10.45
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
