003 - Cylinder Heads

Maserati Biturbo 2.5 (1984) Cylinder Heads Parts Diagram

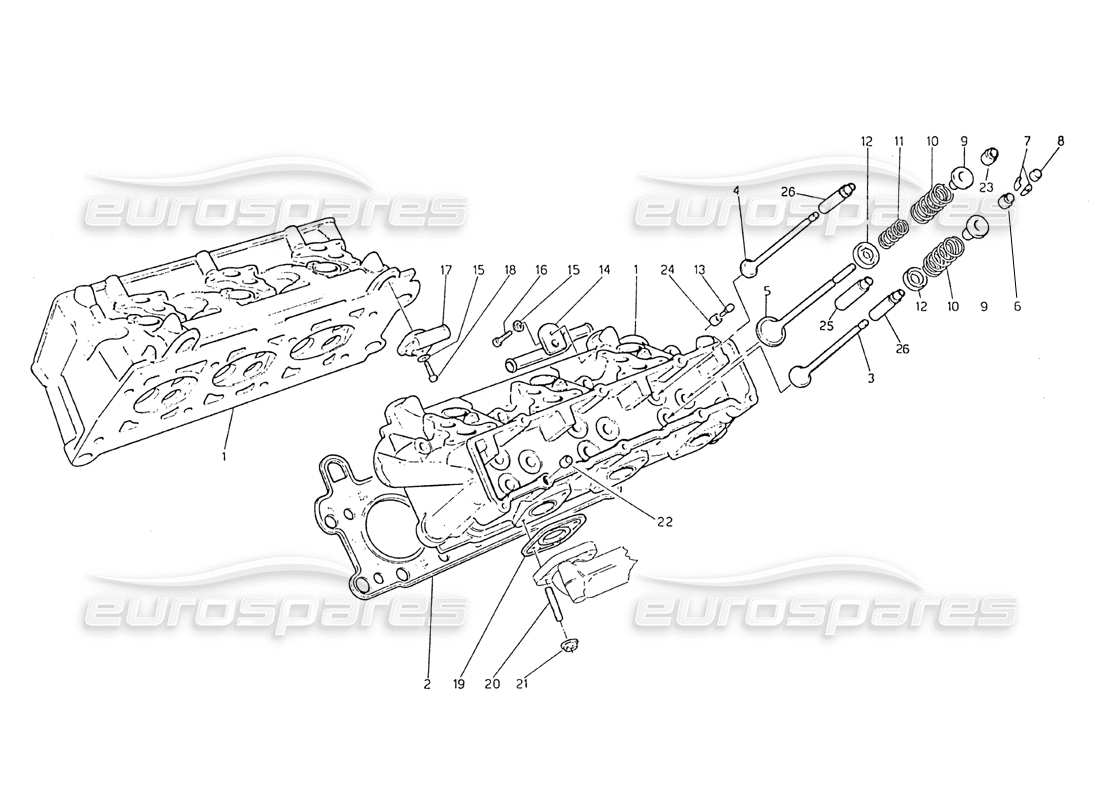

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 310620003
                                                    CYLINDER HEAD
                                                    from £386.37
                                                    from £386.37
                                                    # 002
                                                    MPN: 473006001

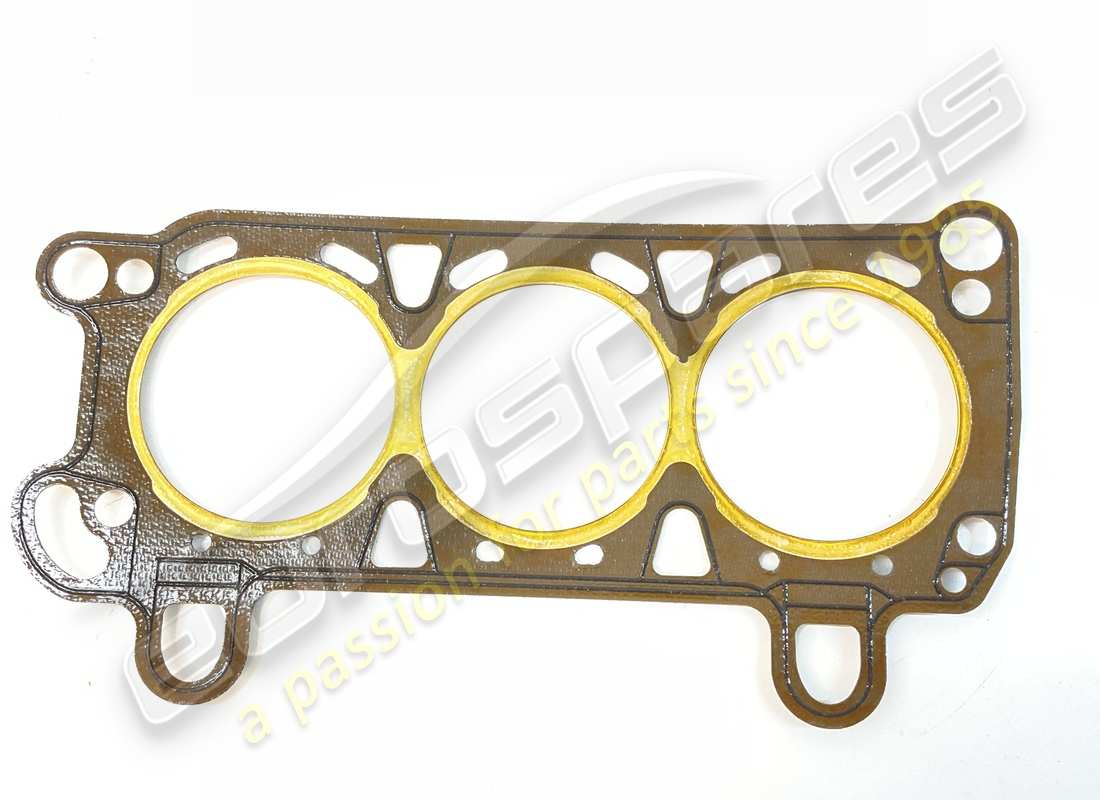

                                                    CYLINDER HEADS GASKET
                                                    from £47.25
                                                    from £47.25
                                                    This part replaces part number 310654418
                                                    # 003
                                                    MPN: 310620301

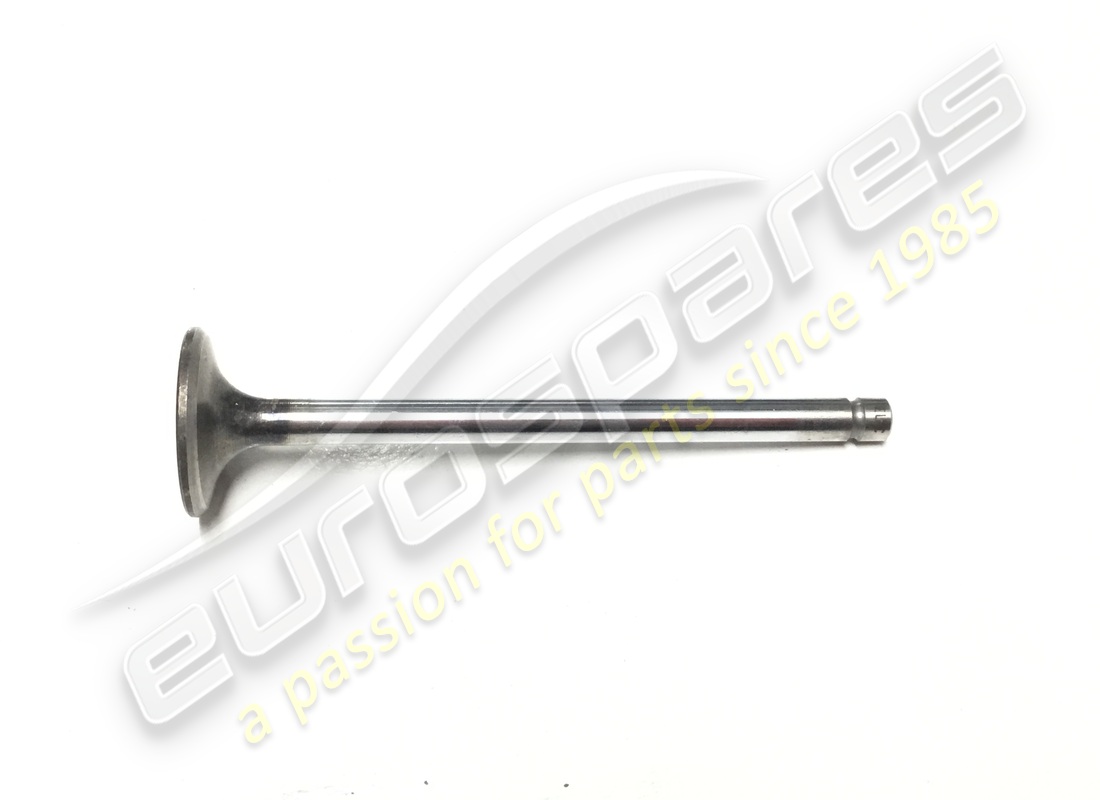

                                                    Inlet Valve 27MM
                                                    from £44.63
                                                    from £44.63
                                                    # 004
                                                    MPN: 310620302
                                                    Inlet Valve 23MM
                                                    from £7.74
                                                    from £7.74
                                                    # 005
                                                    MPN: 310620304

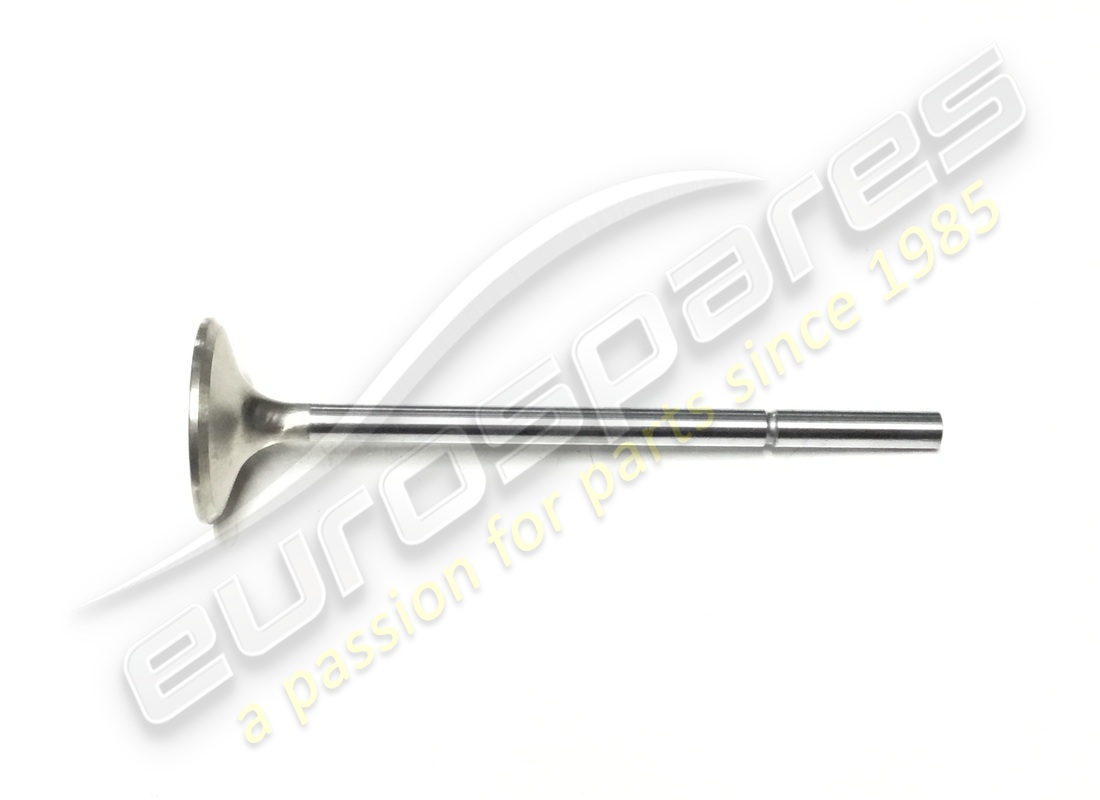

                                                    EXHAUST VALVE
                                                    from £42.00
                                                    from £42.00
                                                    # 006
                                                    MPN: 470002700
                                                    SEAL RING
                                                    from £3.58
                                                    from £3.58
                                                    This part replaces part number 310620317
                                                    # 007
                                                    MPN: 310620319
                                                    VALVE CONES
                                                    from £0.71
                                                    from £0.71
                                                    # 008
                                                    MPN: 310620321
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,100
                                                    from £1.11
                                                    from £1.11
                                                    # 008
                                                    MPN: 310620322
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,150
                                                    from £1.43
                                                    from £1.43
                                                    # 008
                                                    MPN: 310620323
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,200
                                                    from £2.22
                                                    from £2.22
                                                    # 008
                                                    MPN: 310620324
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,250
                                                    from £1.33
                                                    from £1.33
                                                    # 008
                                                    MPN: 310620325
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,300
                                                    from £2.22
                                                    from £2.22
                                                    # 008
                                                    MPN: 310620326
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,350
                                                    from £2.22
                                                    from £2.22
                                                    # 008
                                                    MPN: 310620327
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,400
                                                    from £1.67
                                                    from £1.67
                                                    # 008
                                                    MPN: 310620328
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,450
                                                    from £1.90
                                                    from £1.90
                                                    # 008
                                                    MPN: 310620329
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,500
                                                    # 008
                                                    MPN: 310620330
                                                    VALVE ADJUSLING PIN
                                                    VALVE 2,550
                                                    # 008
                                                    MPN: 310620331
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,600
                                                    Supersession
                                                    Supersession
                                                    # 008
                                                    MPN: 310620332
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,650
                                                    # 008
                                                    MPN: 310620333
                                                    VALVE ADJUSLING PIN
                                                    VALVE 2,700
                                                    # 008
                                                    MPN: 310620334
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,750
                                                    # 008
                                                    MPN: 310620335
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,800
                                                    # 008
                                                    MPN: 310620336
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,850
                                                    # 008
                                                    MPN: 310620337
                                                    VALVE ADJUSLING PIN
                                                    VALVE 2,900
                                                    # 008
                                                    MPN: 310620338
                                                    VALVE ADJUSLING PIN
                                                    VALVE 2,950
                                                    # 008
                                                    MPN: 310620339
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,000
                                                    from £4.37
                                                    from £4.37
                                                    # 008
                                                    MPN: 310620340
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,050
                                                    # 008
                                                    MPN: 310620341
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,100
                                                    # 008
                                                    MPN: 310620342
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,150
                                                    # 008
                                                    MPN: 310620343
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,200
                                                    # 008
                                                    MPN: 310620344
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,250
                                                    # 008
                                                    MPN: 310620345
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,300
                                                    # 008
                                                    MPN: 310620346
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,350
                                                    # 008
                                                    MPN: 310620347
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,400
                                                    # 008
                                                    MPN: 310620348
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,450
                                                    # 008
                                                    MPN: 310620349
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,550
                                                    # 008
                                                    MPN: 310620350
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,550
                                                    # 008
                                                    MPN: 310620351
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,600
                                                    # 008
                                                    MPN: 310620352
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,000
                                                    # 008
                                                    MPN: 310620373
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,650
                                                    # 008
                                                    MPN: 310620374
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,700
                                                    # 008
                                                    MPN: 310620375
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,750
                                                    # 008
                                                    MPN: 310620376
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,800
                                                    from £2.09
                                                    from £2.09
                                                    # 008
                                                    MPN: 310620377
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,850
                                                    from £1.64
                                                    from £1.64
                                                    # 008
                                                    MPN: 310620378
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,900
                                                    # 008
                                                    MPN: 310620379
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,950
                                                    # 008
                                                    MPN: 310620380
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,125
                                                    from £9.44
                                                    from £9.44
                                                    # 008
                                                    MPN: 310620381
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,175
                                                    from £1.98
                                                    from £1.98
                                                    # 008
                                                    MPN: 310620382
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,225
                                                    from £0.71
                                                    from £0.71
                                                    # 008
                                                    MPN: 310620383
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,275
                                                    from £2.93
                                                    from £2.93
                                                    # 008
                                                    MPN: 310620384
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,325
                                                    # 008
                                                    MPN: 310620385
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,375
                                                    # 008
                                                    MPN: 310620386
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,425
                                                    from £1.24
                                                    from £1.24
                                                    # 008
                                                    MPN: 310620387
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,475
                                                    # 008
                                                    MPN: 310620388
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,525
                                                    # 008
                                                    MPN: 310620389
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,575
                                                    # 008
                                                    MPN: 310620390
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,625
                                                    # 008
                                                    MPN: 310620391
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,675
                                                    # 008
                                                    MPN: 310620392
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,725
                                                    # 008
                                                    MPN: 310620393
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,775
                                                    # 008
                                                    MPN: 310620395
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,875
                                                    # 008
                                                    MPN: 310620396
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,925
                                                    # 008
                                                    MPN: 310620397
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,975
                                                    # 008
                                                    MPN: 310620398
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,025
                                                    # 008
                                                    MPN: 310620399
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,075
                                                    # 008
                                                    MPN: 310620400
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,125
                                                    # 008
                                                    MPN: 310620401
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,175
                                                    # 008
                                                    MPN: 310620402
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,225
                                                    # 008
                                                    MPN: 310620403
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,275
                                                    # 008
                                                    MPN: 310620404
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,325
                                                    # 008
                                                    MPN: 310620405
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,375
                                                    # 008
                                                    MPN: 310620406
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,425
                                                    # 008
                                                    MPN: 310620407
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,475
                                                    # 008
                                                    MPN: 310620408
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,525
                                                    Supersession
                                                    Supersession
                                                    # 008
                                                    MPN: 310620409
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,575
                                                    # 008
                                                    MPN: 310620410
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,625
                                                    # 008
                                                    MPN: 310620411
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,675
                                                    # 008
                                                    MPN: 310620412
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,725
                                                    from £1.59
                                                    from £1.59
                                                    # 008
                                                    MPN: 310620413
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,775
                                                    from £1.11
                                                    from £1.11
                                                    # 008
                                                    MPN: 310620414
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,825
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620415
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,875
                                                    from £1.75
                                                    from £1.75
                                                    # 008
                                                    MPN: 310620417
                                                    VALVE ADJUSTING PIN
                                                    VALVE 3,975
                                                    from £0.71
                                                    from £0.71
                                                    # 008
                                                    MPN: 310620425
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,050
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620426
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,100
                                                    from £0.71
                                                    from £0.71
                                                    # 008
                                                    MPN: 310620427
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,150
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620428
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,200
                                                    from £0.71
                                                    from £0.71
                                                    # 008
                                                    MPN: 310620429
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,250
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620430
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,300
                                                    from £0.60
                                                    from £0.60
                                                    # 008
                                                    MPN: 310620431
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,300
                                                    from £1.64
                                                    from £1.64
                                                    # 008
                                                    MPN: 310620432
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,400
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620433
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,450
                                                    # 008
                                                    MPN: 310620434
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,500
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620440
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,025
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620441
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,075
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620442
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,125
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620443
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,175
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620444
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,225
                                                    # 008
                                                    MPN: 310620445
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,275
                                                    # 008
                                                    MPN: 310620446
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,325
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620447
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,375
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620448
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,425
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 310620449
                                                    VALVE ADJUSTING PIN
                                                    VALVE 4,475
                                                    from £2.38
                                                    from £2.38
                                                    # 008
                                                    MPN: 452032964
                                                    VALVE ADJUSTING PIN
                                                    VALVE 2,825
                                                    from £3.73
                                                    from £3.73
                                                    # 009
                                                    MPN: 310620355
                                                    UPPER VALVE SPRING RETAINER
                                                    # 010
                                                    MPN: 310620356
                                                    OUTSIDE VALVE SPRING
                                                    # 011
                                                    MPN: 310620358
                                                    INSIDE EXHAUST VALVE SPRING
                                                    # 012
                                                    MPN: 310620361
                                                    LOWER VALVE SPRING RETAINER
                                                    from £0.71
                                                    from £0.71
                                                    # 013
                                                    MPN: 310620365
                                                    DOWEL
                                                    # 014
                                                    MPN: 310625363
                                                    CONNECTION
                                                    from £45.56
                                                    from £45.56
                                                    # 015
                                                    MPN: 310620364
                                                    GASKET
                                                    from £5.66
                                                    from £5.66
                                                    # 017
                                                    MPN: 452009901
                                                    WATER CONNECTION
                                                    from £2.38
                                                    from £2.38
                                                    # 018
                                                    MPN: 14305924
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 14305921 - and 1 more. Click to view details
                                                    # 019
                                                    MPN: 473362201

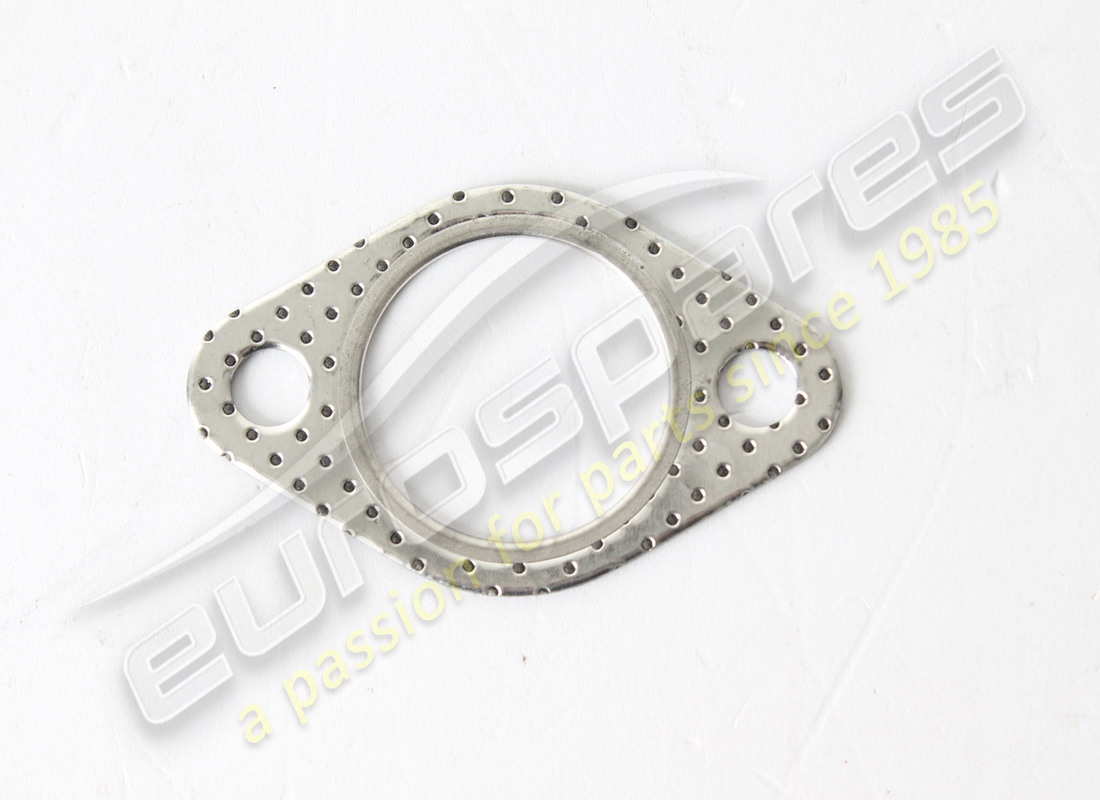

                                                    EXHAUST MANIFOLD GASKET
                                                    from £7.30
                                                    from £7.30
                                                    This part replaces part number 310650465
                                                    # 020
                                                    MPN: 310620370
                                                    STUD
                                                    from £15.15
                                                    from £15.15
                                                    # 021
                                                    MPN: 312020309
                                                    NUT
                                                    # 022
                                                    MPN: 310620369
                                                    DOWEL
                                                    from £1.98
                                                    from £1.98
                                                    # 023
                                                    MPN: 310620317
                                                    RUBBER
                                                    Supersession
                                                    Supersession
                                                    # 024
                                                    MPN: 310620362
                                                    FILTER
                                                    Supersession
                                                    Supersession
                                                    # 025
                                                    MPN: 310620005
                                                    EHAUST VALVE GUIDE
                                                    from £8.66
                                                    from £8.66
                                                    This part replaces part number 310620311
                                                    # 026
                                                    MPN: 310620313
                                                    INLET VALVE GUIDA
                                                    from £1.59
                                                    from £1.59
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
