056 - Sliding Roof

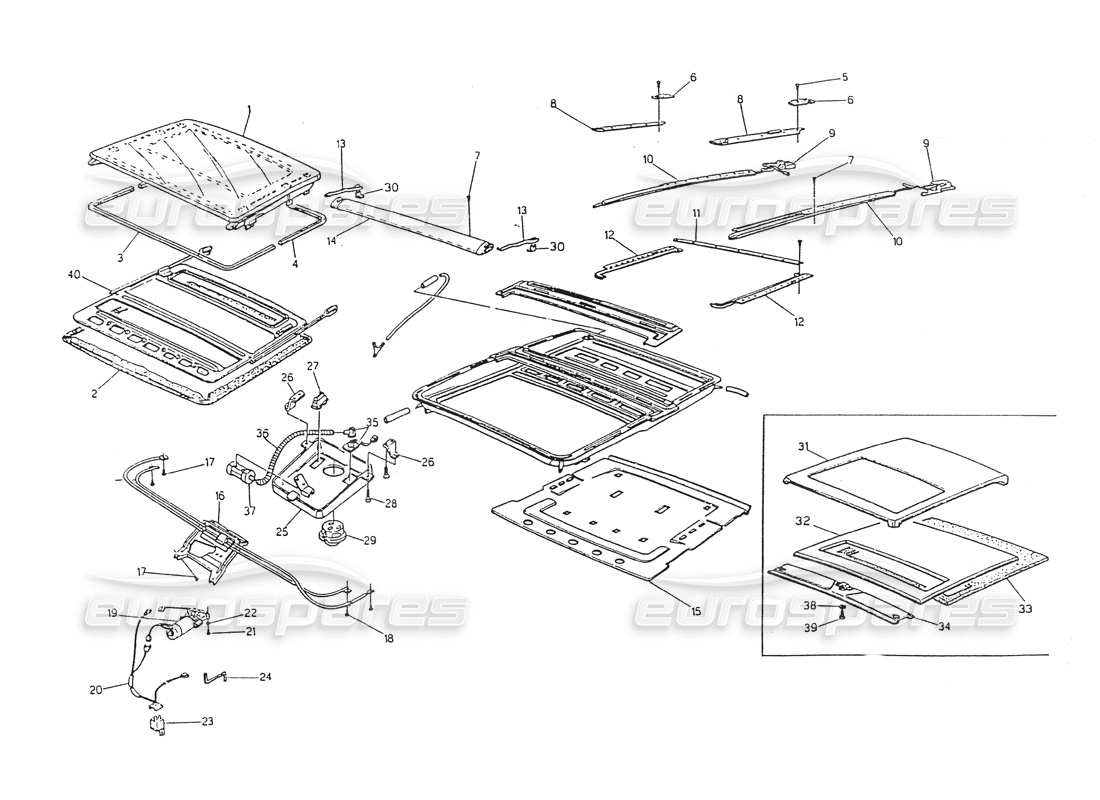

Maserati 418 / 4.24v / 430 Sliding Roof Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 327920075
MOVABLE PANEL KIT COMPLETE
from £166.12
from £166.12
# 002
MPN: 327956289
COVERING (LIGHT GREY ALCANTARA)
from £86.99
from £86.99
# 002
MPN: 328912500
COVERING (IVORY ALCANTARA)
from £154.77
from £154.77
# 003
MPN: 327920704
FRONT GASKET
from £24.98
from £24.98
This part replaces part number 327920703
# 004
MPN: 327920703
REAR GASKET
Supersession
Supersession
# 005
MPN: 327920713
SCREW
from £1.07
from £1.07
# 006
MPN: 327920714
RH PLATE
from £5.36
from £5.36
# 006
MPN: 327920715
LH PLATE
from £5.52
from £5.52
# 007
MPN: 327920716
SCREW
from £1.07
from £1.07
# 008
MPN: 327920717
LH SIDE GUIDE
from £3.35
from £3.35
# 008
MPN: 327920718
RH SIDE GUIDE
from £3.35
from £3.35
# 009
MPN: 327920720
RH GUIDE PANEL CARRIAGE
from £22.30
from £22.30
# 009
MPN: 327920721
LH GUIDE PANEL CARRIAGE
from £22.30
from £22.30
# 010
MPN: 327920722
RH INOX GUIDE COMP.
from £7.06
from £7.06
# 010
MPN: 327920723
LH INOX GUIDE COMP.
from £7.06
from £7.06
# 011
MPN: 327920724
REAR GUIDE
# 012
MPN: 327920725
RH SIDE GUIDE
from £3.68
from £3.68
# 012
MPN: 327920726
LH SIDE GUIDE
from £3.68
from £3.68
# 013
MPN: 327920753
BRACKET
from £3.21
from £3.21
# 014
MPN: 327920727
BAFFLE COMPL.
from £124.04
from £124.04
# 015
MPN: 327920616
PADDING
from £310.30
from £310.30
# 016
MPN: 327920261
BRACKET
from £14.64
from £14.64
# 017
MPN: 327920734
SCREW
from £1.07
from £1.07
# 018
MPN: 327920735
SCREW
from £1.07
from £1.07
# 019
MPN: 327920736
engine
from £115.25
from £115.25
# 020
MPN: 327920737
WIRING HARNESS
from £16.70
from £16.70
# 021
MPN: 327920739
SCREW
from £1.07
from £1.07
# 022
MPN: 327920719
WASHER
from £1.38
from £1.38
# 023
MPN: 327920738
RELAY
from £17.86
from £17.86
# 024
MPN: 327920741
LEVER
from £1.54
from £1.54
# 025
MPN: 327956275
COVER AUTOM. CONDITIONER (LIGHT GREY LEATHER)
# 025
MPN: 327956277
COVER AUTOM. CONDITIONER (BLACK LEATHER)
from £40.45
from £40.45
# 025
MPN: 328912508
COVER AUTOM. CONDITIONER (IVORY LEATHER)
from £80.03
from £80.03
# 026
-
BRAKET
# 027
MPN: 323350130
SWITCH
from £8.87
from £8.87
This part replaces part number 330915700
# 028
MPN: 119929250
SCREW
from £1.07
from £1.07
# 029
MPN: 313120117
ROOF LAMP WITH SPOT LIGHT
from £0.83
from £0.83
# 030
MPN: 327920730
BRACKET
from £0.68
from £0.68
# 031
MPN: 322520700
OUTSIDE ROOF PANEL PADDING
from £116.27
from £116.27
# 032
MPN: 327920622
FRONT PADDING
# 033
MPN: 327956293
CEILING COVERING (LIGHT GREY ALCANTARA)
from £45.76
from £45.76
# 033
MPN: 328912501
CEILING COVERING (IVORY ALCANTARA)
# 034
MPN: 327956282
FRONT CROSS PADDING (LIGHT GREY LEATHER)
Valid for 51 / 53
# 034
MPN: 327956282
FRONT CROSS PADDING (LIGHT GREY LEATHER)
VALID FOR 58 / 59 / 62 GERMANY EXCEPTED
# 034
MPN: 327956284
FRONT CROSS PADDING (BLACK LEATHER)
Valid for 51 / 53
# 034
MPN: 327956284
FRONT CROSS PADDING (BLACK LEATHER)
VALID FOR 58 / 59 / 62 GERMANY EXCEPTED
# 034
MPN: 327970283
FRONT CROSS PADDING (LIGHT CREY LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 034
MPN: 327970283
FRONT CROSS PADDING (LIGHT GREY LEATHER)
VALID FOR 58 / 59 / 62 ONLY GERMANY
# 034
MPN: 327970285
FRONT CROSS PADDING (BLACK LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 034
MPN: 327970285
FRONT CROSS PADDING (BLACK LEATHER)
VALID FOR 58 / 59 / 62 ONLY GERMANY
# 034
MPN: 328912507
FRONT CROSS PADDING (IVORY LEATHER)
VALID FOR 58 / 59 / 62 GERMANY EXCEPTED
from £297.84
from £297.84
# 034
MPN: 328912507
FRONT CROSS PADDING (IVORY LEATHER)
Valid for 51 / 53
from £297.84
from £297.84
# 034
MPN: 328970512
FRONT CROSS PADDING (IVORY LEATHER)
VALID FOR 58 / 59 / 62 ONLY GERMANY
# 034
MPN: 328970512
FRONT CROSS PADDING (IVORY LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 035
MPN: 315520199
ROOM TEMPERATURE PROBE
from £27.84
from £27.84
# 036
MPN: 315520467
PIPE
from £0.70
from £0.70
# 037
MPN: 315520200
FAN
from £59.37
from £59.37
# 038
MPN: 135900043
FLAT WASHER
from £1.07
from £1.07
This part replaces part number 14496207
# 039
MPN: 119142130
SCREW
# 040
MPN: 322520715
SUNROOF FRAMEWORK
from £0.47
from £0.47
