maserati 418 / 4.24v / 430 air conditioner assy parts diagram

055 - AIR CONDITIONER ASSY

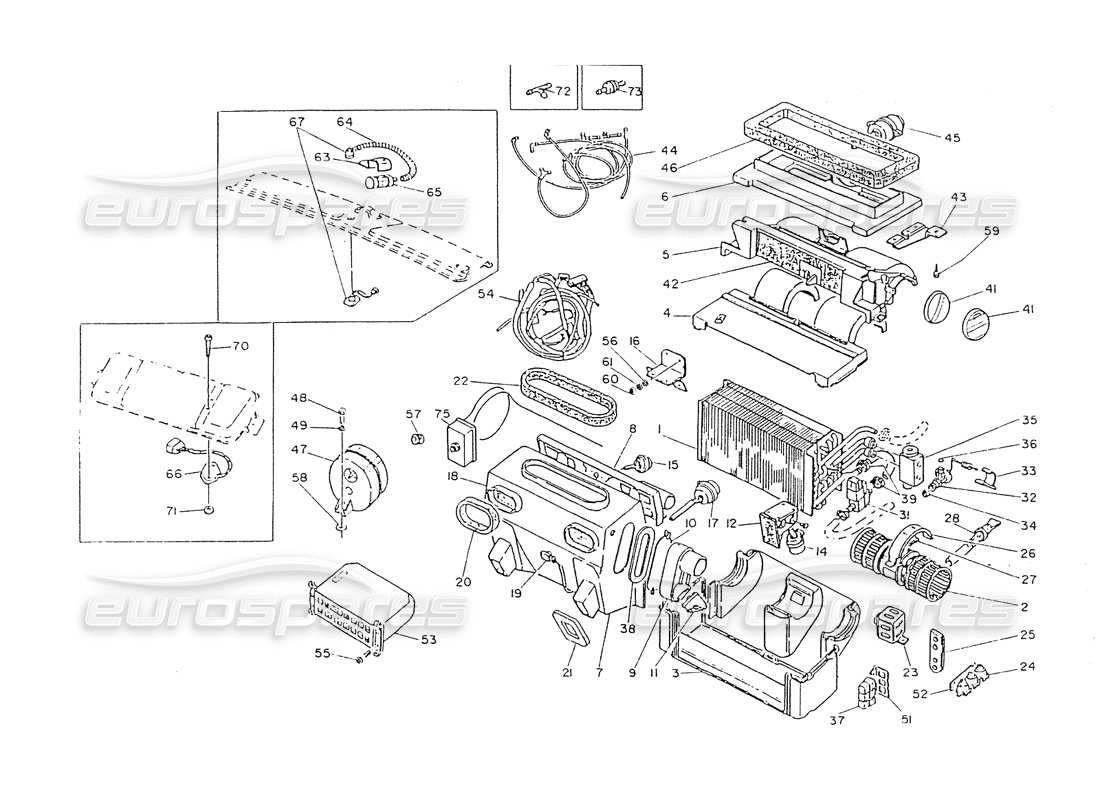

Maserati 418 / 4.24v / 430 Air Conditioner Assy Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315551165
COOLER AND HEATER
VALID FOR 51 / 53 / 58 / 59 / 62
from £49.03
from £49.03
# 001
MPN: 315570165
COOLER AND HEATER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £174.58
from £174.58
# 002
MPN: 315520167
ELECTRIC FAN
VALID FOR 51 / 53 / 58 / 59 / 62
from £219.24
from £219.24
# 003
MPN: 315551380
LOWER BOX
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £17.08
from £17.08
# 003
MPN: 315567380
LOWER BOX
# 004
MPN: 315520381
INTERMEDIATE BOX
from £12.62
from £12.62
# 005
MPN: 315551382
UPPER BOX
from £19.31
from £19.31
# 006
MPN: 315520470
DUCT
from £41.95
from £41.95
# 007
MPN: 315520471
Front Body
from £10.92
from £10.92
This part replaces part number 315520384
# 008
MPN: 315520472
UPPER COVER
# 009
MPN: 315520473
LH AIR NOZZLE
from £8.52
from £8.52
# 009
MPN: 315520474
RH AIR NOZZLE
from £8.52
from £8.52
# 010
MPN: 315520163
FLAP FOR LH AIR NOZZLE
from £3.19
from £3.19
This part replaces part number 315520129
# 010
MPN: 315520164
FLAP FOR RH AIR NOZZLE
from £4.11
from £4.11
This part replaces part number 315520130
# 011
MPN: 315520387
AIR DELIVERY DUCT, ASSY
from £18.72
from £18.72
# 012
MPN: 315520018
FLAP. ASSY
from £10.33
from £10.33
# 014
MPN: 315520158
REAR DOOR AIR CONTROL ACTUATOR
from £9.15
from £9.15
# 015
MPN: 315520162
TWO-POSITION ACTUATOR
from £4.54
from £4.54
# 016
MPN: 315520138
AIR CONDITIONER SUPPORT BRACKET
from £3.23
from £3.23
# 017
MPN: 315520159
FLOOR AIR CONTROL ACTUATOR
from £12.76
from £12.76
# 018
MPN: 315520134
AIR DELIVERY FLAP
# 019
MPN: 315520206
MIXED AIR TEMPERATURE SENSOR
from £18.75
from £18.75
# 020
MPN: 315520369
NOZZLE GASKET
# 021
MPN: 315520397
NOZZLE GASKET
from £3.47
from £3.47
# 022
MPN: 315520394
NOZZLE GASKET
# 023
MPN: 315520143
RESISTANCE
from £17.12
from £17.12
# 024
MPN: 315520207
PNEUMATIC SYSTEM SOLENOID VALVE
from £41.09
from £41.09
# 025
MPN: 315520475
GASKET
# 026
MPN: 315520402
BRACKET
# 027
MPN: 315520403
DAMPER
# 028
MPN: 315520017
CONDENSATE DRAINAGE TUBE
from £1.76
from £1.76
# 031
MPN: 315522144
COCK. ASSY
from £395.15
from £395.15
# 032
MPN: 315520166
EXPANSION VALVE
from £76.67
from £76.67
# 033
MPN: 315520408
TUBE FIXING CLIP
from £1.93
from £1.93
# 034
MPN: 315520445
GASKET
from £0.68
from £0.68
# 035
MPN: 315553166
EXPANSION VALVE
from £66.17
from £66.17
# 036
MPN: 315520443
GASKET
from £1.02
from £1.02
# 037
MPN: 30331137
RELAY
Supersession
Supersession
# 038
MPN: 315520483
GASKET
from £3.81
from £3.81
# 039
MPN: 315520415
CLAMP
# 041
MPN: 315550416
THROTTLE FLAP (AIR CONDITIONER FAN VALVE)
from £18.01
from £18.01
# 041
MPN: 315551416
THROTTLE FLAP (AIR CONDITIONER BLOCK VALVE)
from £4.62
from £4.62
# 042
MPN: 315520136
AIR FLAP
# 043
MPN: 315520419
LH BRACKET FOR AIR CONDITIONER
# 043
MPN: 315520420
RH BRACKET FOR AIR CONDITIONER
# 044
MPN: 315520208
PNEUMATIC SYSTEM
from £10.16
from £10.16
# 045
MPN: 315520160
AIR FLAP ACTUATOR
from £3.82
from £3.82
# 046
MPN: 315520422
GASKET
from £2.90
from £2.90
# 047
MPN: 30551155
VACUUM CYLINDER
# 049
MPN: 169020005
WASHER
from £1.07
from £1.07
# 051
MPN: 315520477
RELAY SUPPORTING BRACKET
from £18.01
from £18.01
# 052
MPN: 315520478
SOLENOID VALVE SUPPORTING BRACKET
# 053
MPN: 365500201
CLIMATE CONTROL UNIT
Supersession
Supersession
This part replaces part number 315550204
# 053
MPN: 365504201
CLIMATE CONTROL UNIT
from £1,264.85
from £1,264.85
This part replaces part number 365500201
# 054
MPN: 315551211
WIRING
from £111.65
from £111.65
# 055
MPN: 119529130
SCREW
from £1.07
from £1.07
# 056
MPN: 169020406
WASHER
from £0.76
from £0.76
# 057
MPN: 53211308
FAIRLEAD
from £0.56
from £0.56
# 058
MPN: 312520511
GASKET
from £1.70
from £1.70
# 059
MPN: 314320345
SCREW
from £41.46
from £41.46
# 061
MPN: 135600060
SPRING WASHER
from £0.76
from £0.76
# 063
MPN: 315520465
CLAMP
from £3.23
from £3.23
# 064
MPN: 315520467
PIPE
from £0.70
from £0.70
# 065
MPN: 315520200
FAN
from £59.63
from £59.63
# 066
MPN: 315520196
EXTERNAL AIR TEMPERATURE PROBE
from £13.65
from £13.65
# 067
MPN: 315520199
ROOM TEMPERATURE PROBE
from £27.96
from £27.96
# 070
MPN: 112804016
SCREW
# 071
MPN: 122600040
NUT
from £0.47
from £0.47
# 072
MPN: 315520424
T-UNION
from £0.49
from £0.49
# 073
MPN: 315520153
CHECK VALVE WITH BREATHER
from £8.77
from £8.77
# 075
MPN: 313350205
DEFROSTING THERMOSTAT
from £3.75
from £3.75
