maserati 418 / 4.24v / 430 passenger compartment insulation parts diagram

053 - PASSENGER COMPARTMENT INSULATION

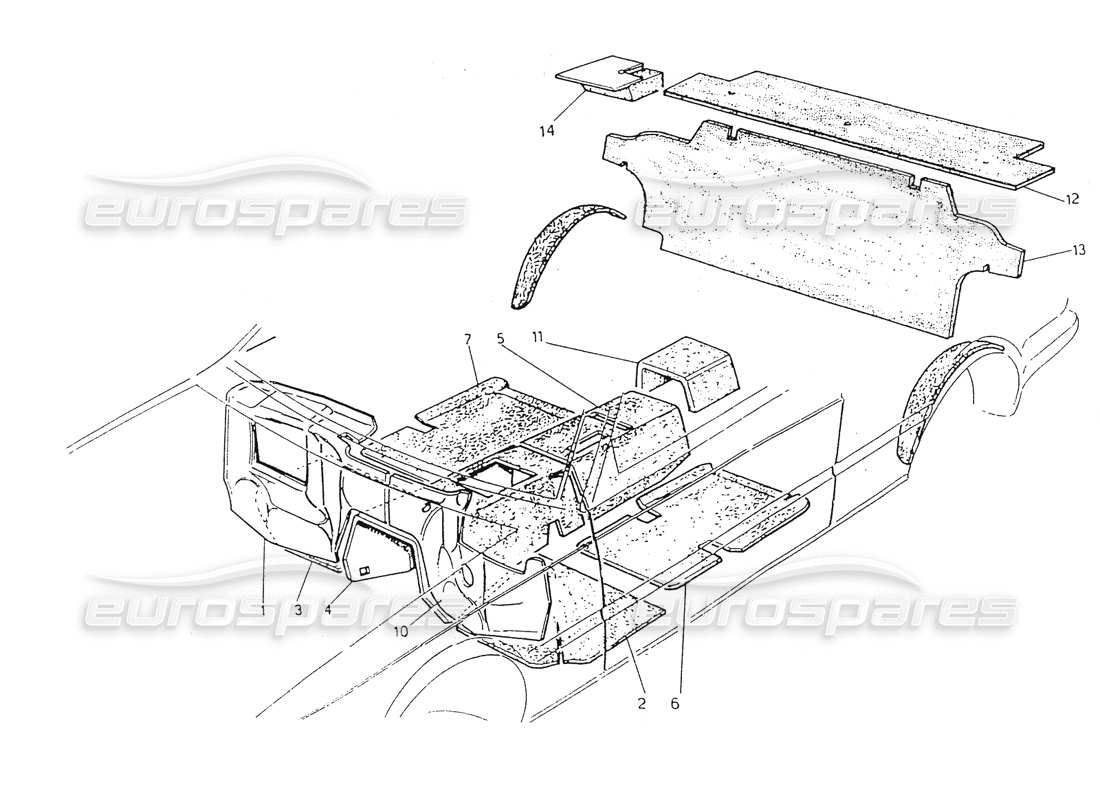

Maserati 418 / 4.24v / 430 Passenger Compartment Insulation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 311553424
                COPERTURA FONOISOLANTE DX
                VALID FOR 51 / 53 / 58 / 59 / 62
                from £64.13
                from £64.13
                # 001
                MPN: 321570424
                COPERTURA FONOISOLANTE DX
                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                from £70.27
                from £70.27
                # 002
                MPN: 311553405
                COPERTURA FONOISOLANTE SX
                from £48.17
                from £48.17
                # 002
                MPN: 311553407
                COPERTURA FONOISOLANTE SX
                from £50.45
                from £50.45
                # 003
                MPN: 311553406
                COPERTUFTA FONOISOLANTE DX
                from £26.52
                from £26.52
                # 003
                MPN: 311553408
                COPERTURA FONOISOLANTE DX
                from £43.08
                from £43.08
                # 004
                MPN: 311553413
                COPERTURA FONOISOLANTE
                VALID FOR 51 / 53 / 58 / 59 / 62
                from £40.88
                from £40.88
                # 004
                MPN: 321570413
                COPERTURA FONOISOLANTE
                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                # 005
                MPN: 321553414
                COPERTURA FONOISOLANTE
                # 006
                MPN: 321553409
                COPERTURA FONOISOLANTE SV
                VALID FOR 51 / 53 / 58 / 59 / 62
                # 006
                MPN: 321553411
                COPERTURA FONOISOLANTE SX
                VALID FOR 51 / 53 / 58 / 59 / 62
                from £28.41
                from £28.41
                # 006
                MPN: 321570409
                COPERTURA FONOISOLANTE SX
                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                # 006
                MPN: 321570411
                COPERTURA FONOISOLANTE SX
                VALID FOR 51 / 53 / 58 / 59 / 62
                # 007
                MPN: 321553410
                COPERTURA FONOISOLANTE DX
                # 007
                MPN: 321553412
                COPERTURA FONOISOLANTE DX
                from £28.41
                from £28.41
                # 010
                MPN: 311553423
                COPERTURA FONOISOLANTE SX
                VALID FOR 51 / 53 / 58 / 59 / 62
                from £73.77
                from £73.77
                # 010
                MPN: 321570423
                COPERTURA FONOISOLANTE SX
                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                from £70.27
                from £70.27
                # 011
                MPN: 321556425
                COPERTURA FONOISOLANTE PER TUNNEL
                # 012
                MPN: 321553418
                COPERTURA FONOISOLANTE SOTTOLUNOTTO
                # 013
                MPN: 311553419
                COPERTURA FONOISOLANTE RETROSCH1ENALE
                from £83.94
                from £83.94
                # 014
                MPN: 311553137
                TASSELLO SX
                # 014
                MPN: 311553138
                TASSELLO DX
                # 014
                MPN: 328150010
                SEAT BELTS KIT
                VALID FOR 77 / 78 AUSTARLIA EXCEPTED
                from £230.63
                from £230.63
