045.1 - Instrument Board, Borletti

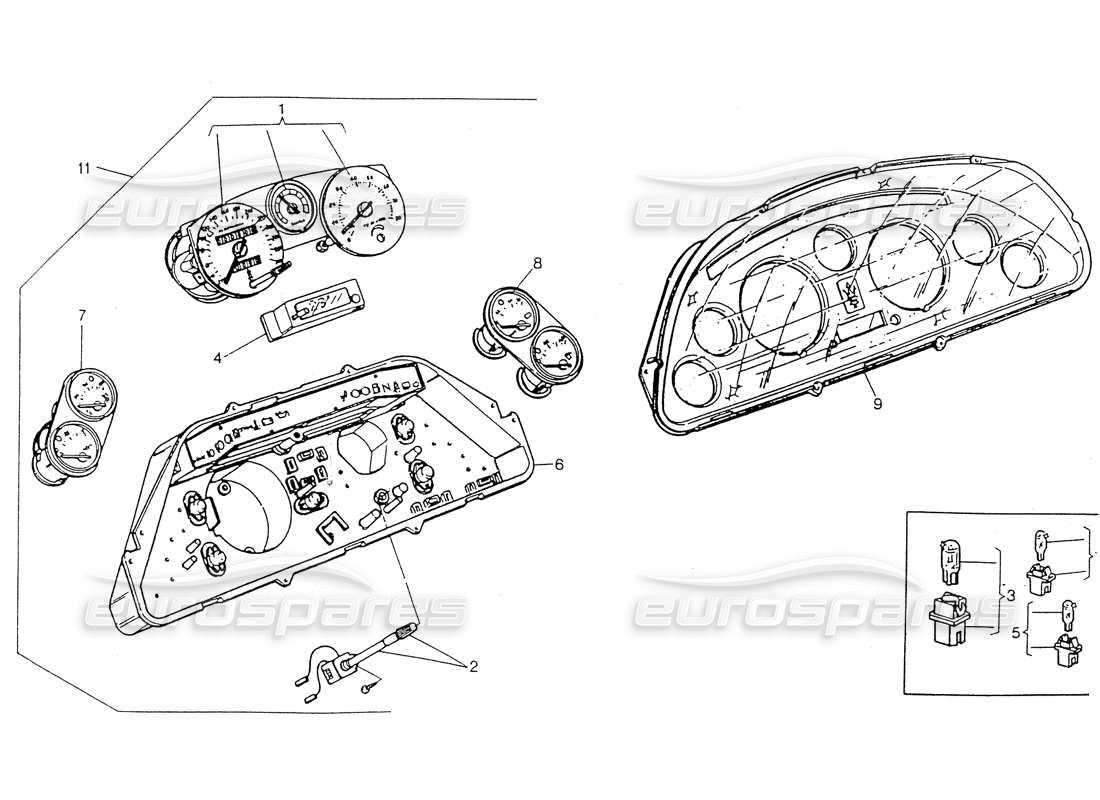

Maserati 418 / 4.24v / 430 Instrument Board, Borletti Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 313662201
    COMBINET INSTRUMENT
    Valid for 62
    from £62.52
    from £62.52
    # 002
    MPN: 393650210
    RHEOSTAT AND PUSH-BUTTON
    Valid for 62
    from £90.19
    from £90.19
    # 003
    MPN: 393650216
    RED LAMP HOLDER, 2W
    from £11.87
    from £11.87
    # 004
    MPN: 393650207
    EXTERNAL TEMPERATURE INDICATOR
    VALID FOR 62 / 69 / 79
    from £147.41
    from £147.41
    # 005
    MPN: 393650215
    BLACK BULB HOLDER 1.2W
    VALID FOR 62 / 69 / 79
    from £2.01
    from £2.01
    This part replaces part number 393650217
    # 006
    MPN: 393650202
    MOUNTING BOX
    VALID FOR 62 / 69 / 79
    from £27.54
    from £27.54
    # 007
    MPN: 393650203
    WATER TEMPERATURE AND OIL PRESSURE INDICATOR
    VALID FOR 62 / 69 / 79
    from £45.29
    from £45.29
    # 008
    MPN: 393650206
    FUEL LEVEL GAUGE AND VOLTMETER
    VALID FOR 62 / 69 / 79
    from £41.62
    from £41.62
    # 009
    MPN: 393650208
    bezel
    VALID FOR 62 / 69 / 79
    from £39.57
    from £39.57
    # 010
    MPN: 393650217
    LIGHT BLUE LAMP HOLDER 3W
    VALID FOR 62 / 69 / 79
    Supersession
    Supersession
    # 011
    MPN: 313656101

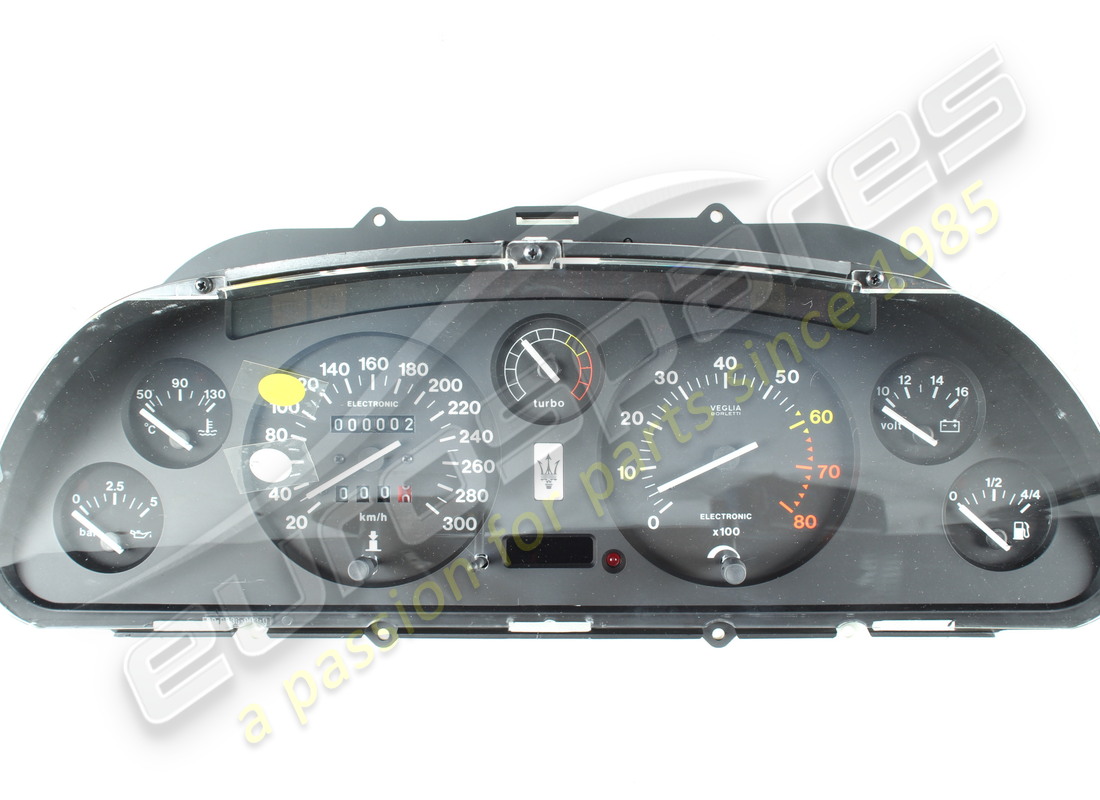

    INSTRUMENTATION ASSY
    Valid for 69 / 79
    from £965.10
    from £965.10
    # 011
    MPN: 313656101
    INSTRUMENTATION ASSY
    VALID FOR 69 GREAT BRITAIN EXCEPTED
    from £965.10
    from £965.10
