maserati 418 / 4.24v / 430 passenger comp. electr. system,lh steer. parts diagram

044.1 - Passenger Comp. Electr. System,LH Steer.

Maserati 418 / 4.24v / 430 Passenger Comp. Electr. System,LH Steer. Parts Diagram

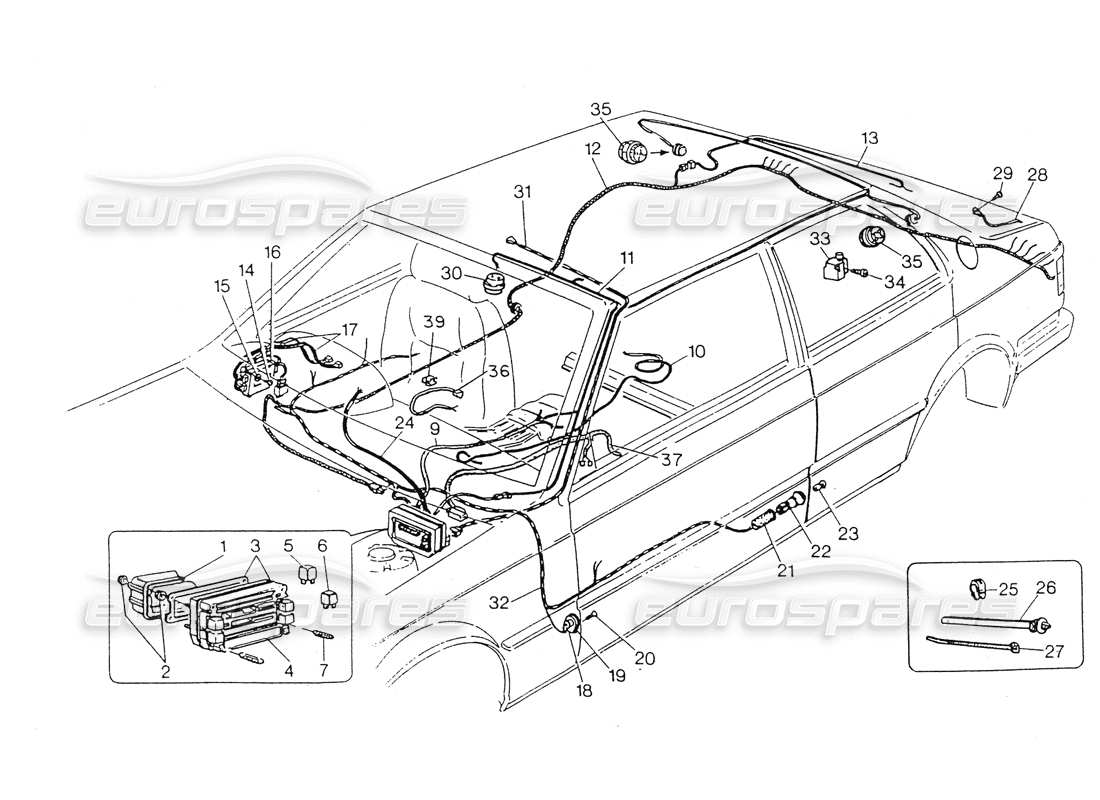

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313052336
CONTROL UNIT GUARD
Valid for 69 / 79
from £0.70
from £0.70
# 001
MPN: 313070335
CONTROL UNIT GUARD
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
# 002
MPN: 122600060
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 003
MPN: 313020104
CONTROL UNIT ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £253.17
from £253.17
# 004
MPN: 313020339
FUSE BOX COVER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.68
from £0.68
# 005
MPN: 313351139
RELAY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £2.00
from £2.00
This part replaces part number 30331137
# 006
MPN: 313320136
DIODE BRIDGE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 NOT SUPPLIED
from £6.44
from £6.44
# 007
MPN: 87200005
5A FUSE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 NOT SUPPLIED
# 007
MPN: 87200008
8A FUSE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 NOT SUPPLIED
# 007
MPN: 87200016
16A FUSE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 009
MPN: 323062109
CONSOLE AND POWER SEAT ADVANCE UNIT CABLE ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £16.99
from £16.99
# 010
MPN: 313030118
LOUDSPEAKER CABLE ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £23.73
from £23.73
# 011
MPN: 313020112
CEILING LAMP CABLE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £28.97
from £28.97
# 012
MPN: 313069108
REAR WIRING HARNESS
Valid for 69 / 79
# 012
MPN: 323070108
REAR WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £113.85
from £113.85
# 013
MPN: 323056111
TRUNK WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £9.77
from £9.77
# 014
MPN: 119142380
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 015
MPN: 135300043
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 016
MPN: 313620107
CHECK CONTROL
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £161.25
from £161.25
# 017
MPN: 313027113
CHECK/ INSTRUMENT WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £21.04
from £21.04
# 017
MPN: 393070113
MAIN CABLE WIRING HARNESS
Valid for 69 / 79
from £475.48
from £475.48
# 018
MPN: 34331114
DOOR SWITCH
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 019
MPN: 53211305
GASKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.70
from £0.70
# 020
MPN: 119535130
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 021
MPN: 53311300
CUP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.70
from £0.70
# 022
MPN: 30311113
DOOR LIGHT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £4.13
from £4.13
# 023
MPN: 87720004
12V 4W BULB
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
# 024
MPN: 313027107
INSTRUMENT PANEL WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £159.32
from £159.32
# 025
MPN: 53471340
CABLE CLAMP, HOLE D1A=6,5
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.13
from £1.13
# 026
MPN: 313020307
STRAP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 027
MPN: 313020308
STRAP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.70
from £0.70
# 028
MPN: 53301127
REAR WINDOW GROUND CABLE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.89
from £0.89
# 029
MPN: 119142130
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 030
MPN: 313153117
CEILING LAMP WITH SPOT LIGHT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £10.04
from £10.04
# 031
MPN: 323020141
AUTOMATIC AIR CONDITIONER CABLE ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £12.11
from £12.11
# 032
MPN: 323070119
WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £177.90
from £177.90
# 032
MPN: 393070113
MAIN CABLE WIRING HARNESS
Valid for 69 / 79
from £475.48
from £475.48
# 033
MPN: 313330135
INERTIA SWITCH
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £15.21
from £15.21
# 034
MPN: 119129095
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 035
MPN: 313153118
CEILING LAMP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £10.04
from £10.04
# 036
MPN: 313020121
PULSE GENERATOR CABLE AND REVERSE GENERATOR CAB
VALID FOR 65 3V / 65 4V / 67 / 77
from £9.63
from £9.63
# 036
MPN: 313055121
PULSE GENERATOR CABLE
VALID FOR 66 / 68 / 78
from £4.06
from £4.06
# 036
MPN: 313055122
STARTING AND REVERSE GEAR CONTROL CABLE
VALID FOR 66 / 68 / 78
# 036
MPN: 323053121
REVERSE GEAR CABLE
Valid for 69 / 79
from £1.65
from £1.65
# 037
MPN: 323050110
CONSOLE CABLE ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 6877 / 78
from £46.77
from £46.77
# 037
MPN: 323062109
CONSOLE AND POWER SEAT ADVANCE UNIT CABLE ASSY
Valid for 69 / 79
from £16.99
from £16.99
# 039
MPN: 313320333
CABLE CLIP
from £0.70
from £0.70
