maserati 418 / 4.24v / 430 windshield wiper, lh steering parts diagram

040 - Windshield Wiper, LH Steering

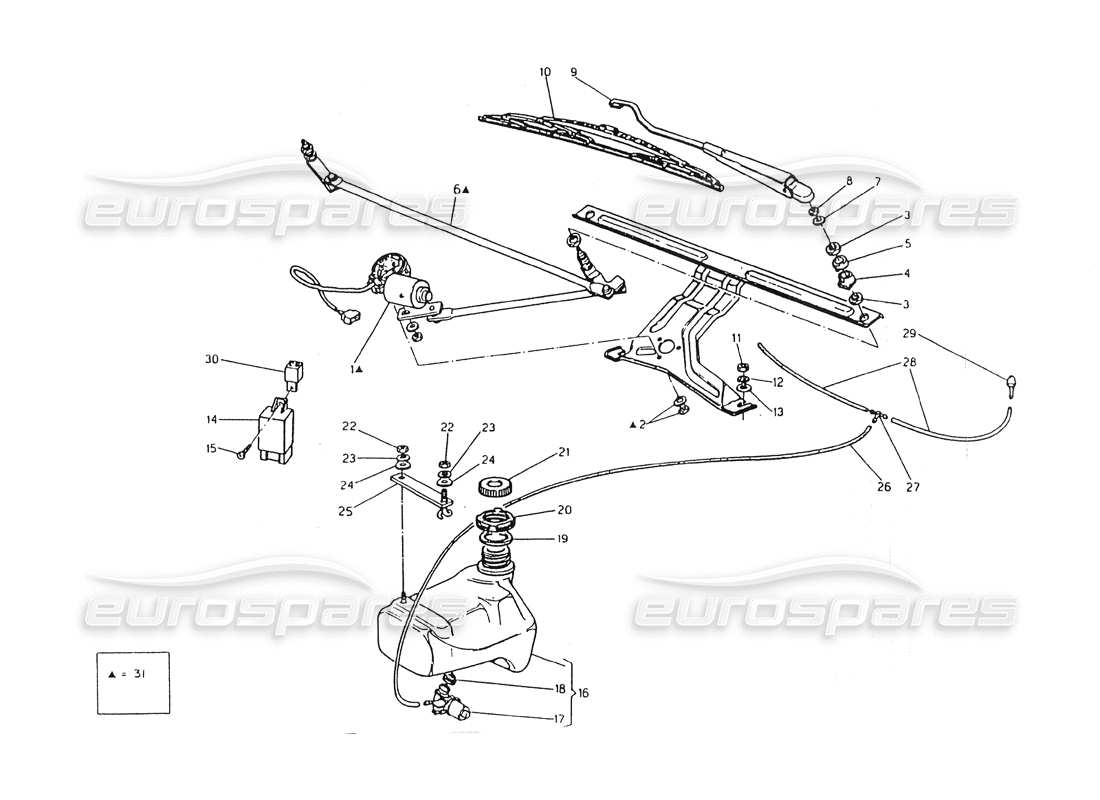

Maserati 418 / 4.24v / 430 Windshield Wiper, LH Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 313320101
    GEARMOTOR
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    # 002
    MPN: 313320401
    SCREW AND WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 003
    MPN: 313320402
    NUT
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.62
    from £1.62
    # 004
    MPN: 393350328
    EXTERNAL SPACER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £2.23
    from £2.23
    # 005
    MPN: 393350329
    EXTERNAL SPACER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.62
    from £1.62
    # 006
    MPN: 313320202
    LEVERAGE
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    # 007
    MPN: 138410080
    SPRING WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 008
    MPN: 125300080
    NUT
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 009
    MPN: 393350117
    ARM
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £77.49
    from £77.49
    # 010
    MPN: 313352158
    BLADE WITH SPOILER
    from £53.84
    from £53.84
    This part replaces part number 323356128 - and 2 more. Click to view details
    # 011
    MPN: 125100080
    NUT
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.86
    from £0.86
    # 012
    MPN: 135300084
    SPRING WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 013
    MPN: 169020508
    WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 014
    MPN: 313320116
    TGE TIMER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £25.92
    from £25.92
    # 015
    MPN: 119148130
    SCREW
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.84
    from £0.84
    # 016
    MPN: 318151025
    RESERVOIR
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    This part replaces part number 318120024
    # 017
    MPN: 373300183
    WINDSHIELD WASHER PUMP
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £15.01
    from £15.01
    This part replaces part number 330907620
    # 018
    MPN: 30331302
    GASKET
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.68
    from £0.68
    # 019
    MPN: 318120328
    SEAL
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £2.80
    from £2.80
    # 020
    MPN: 318120329
    GROOVED NUT
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.02
    from £1.02
    # 021
    MPN: 30811327
    CAP
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 022
    MPN: 125100060
    NUT
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 023
    MPN: 135900064
    FLAT WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.47
    from £0.47
    # 024
    MPN: 163020100
    FLAT WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.07
    from £1.07
    # 025
    MPN: 318120130
    BRACKET
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.54
    from £1.54
    # 026
    MPN: 398150313
    PIPING
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    # 027
    MPN: 30811310
    T-UNION
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.78
    from £0.78
    # 028
    MPN: 398150312
    PIPING
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    # 029
    MPN: 53811109
    NOZZLE
    VALID FOR 51 / 53 / 58 / 59 / 62
    # 030
    MPN: 313320115
    INTERMITTENCE
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    # 031
    MPN: 393350100
    WINDSHIELD WIPER ASSY
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
