maserati 418 / 4.24v / 430 spare wheel housing parts diagram

039.1 - SPARE WHEEL HOUSING

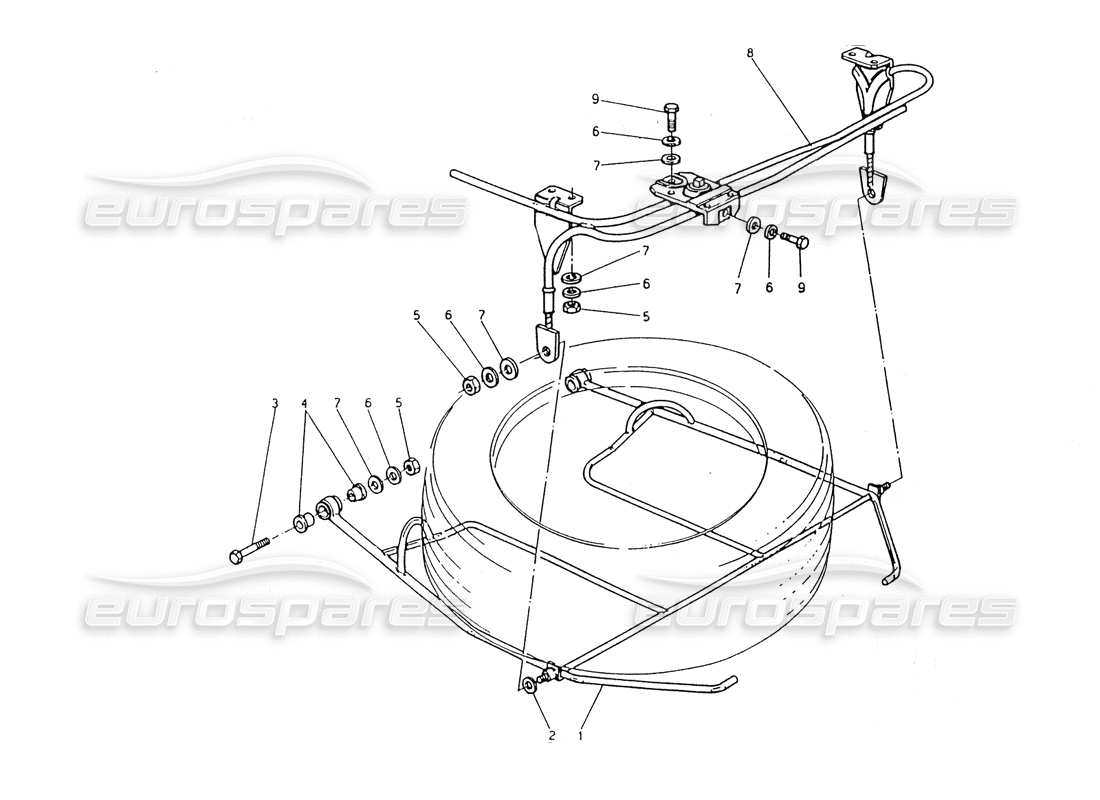

Maserati 418 / 4.24v / 430 Spare Wheel Housing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 328153183
SPARE WHEEL HOUSING
Valid for 51 / 53
from £10.97
from £10.97
This part replaces part number 328120182
# 002
MPN: 138420100
WASHER
Valid for 51 / 53
# 003
MPN: 318120420
PIN
Valid for 51 / 53
from £3.86
from £3.86
# 004
MPN: 318120421
BUSH
Valid for 51 / 53
from £0.70
from £0.70
# 005
MPN: 125100060
NUT
Valid for 51 / 53
# 006
MPN: 135300064
SPRING WASHER
Valid for 51 / 53
# 007
MPN: 169020406
WASHER
Valid for 51 / 53
from £0.78
from £0.78
# 008
MPN: 318120177
LIFTING DEVICE
Valid for 51 / 53
from £11.43
from £11.43
# 009
MPN: 101206012
SCREW
Valid for 51 / 53
