032.1 - Rear Doors

Maserati 418 / 4.24v / 430 Rear Doors Parts Diagram

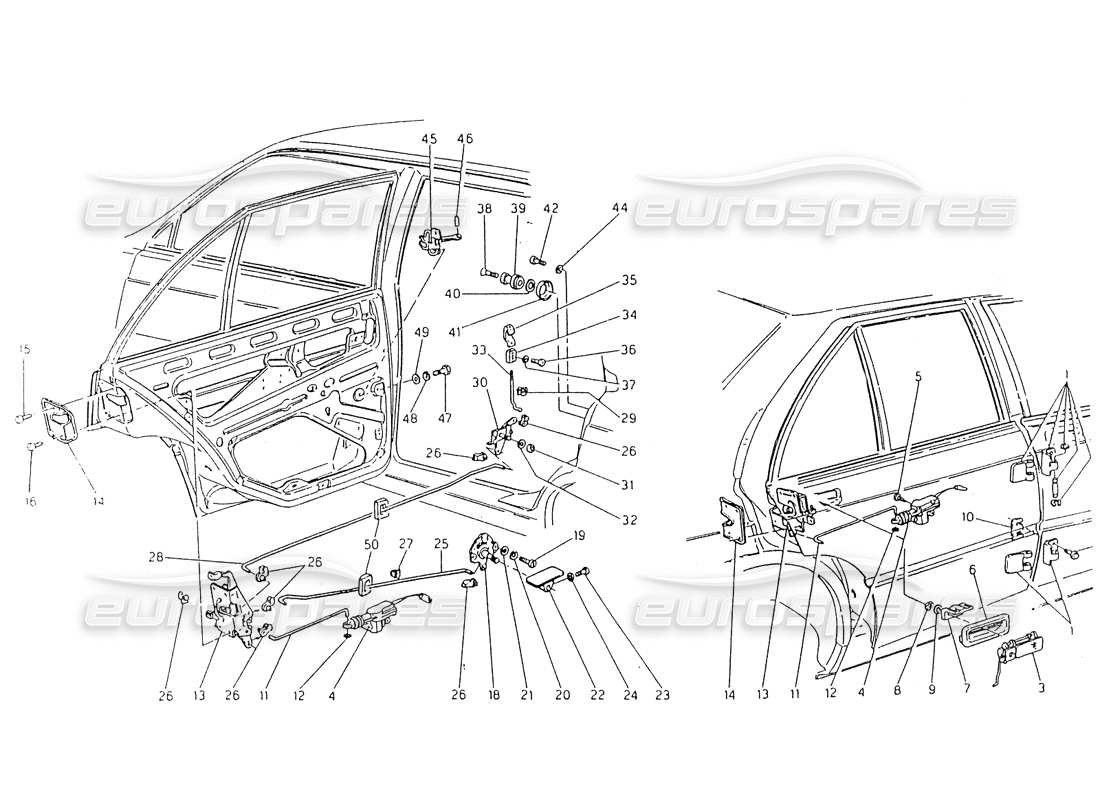

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 324520213
                                                                                              LOWER DOOR HINGE
                                                                                              from £10.97
                                                                                              from £10.97
                                                                                              # 001
                                                                                              MPN: 324520214
                                                                                              UPPER DOOR HINGE
                                                                                              from £10.97
                                                                                              from £10.97
                                                                                              # 002
                                                                                              MPN: 314320325
                                                                                              SCREW
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 003
                                                                                              MPN: 324550071
                                                                                              LH EXTERIOR HANDLE (CHROME PLATED)
                                                                                              VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                                                                              from £19.16
                                                                                              from £19.16
                                                                                              # 003
                                                                                              MPN: 324550072
                                                                                              RH EXTERIOR HANDLE (CHROME PLATED)
                                                                                              VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                                                                              from £21.30
                                                                                              from £21.30
                                                                                              # 003
                                                                                              MPN: 324553073
                                                                                              RH EXTERIOR HANDLE (BLACK)
                                                                                              VALID FOR 51 / 53 / 62 / 69 / 79
                                                                                              from £34.72
                                                                                              from £34.72
                                                                                              # 003
                                                                                              MPN: 324553074
                                                                                              RH EXTERIOR HANDLE (BLACK)
                                                                                              VALID FOR 51 / 53 / 62 / 69 / 79
                                                                                              from £34.72
                                                                                              from £34.72
                                                                                              # 004
                                                                                              MPN: 323320195
                                                                                              MOTOR ACTUATOR
                                                                                              from £27.59
                                                                                              from £27.59
                                                                                              This part replaces part number 313320195
                                                                                              # 006
                                                                                              MPN: 324520364
                                                                                              OUTER DOOR HANDLE PLATE
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 007
                                                                                              MPN: 324520381
                                                                                              HANDLE CRAMP
                                                                                              from £2.31
                                                                                              from £2.31
                                                                                              # 009
                                                                                              MPN: 135600060
                                                                                              SPRING WASHER
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 010
                                                                                              MPN: 324520702
                                                                                              SPACERS, REAR DOOR HINGES
                                                                                              # 010
                                                                                              MPN: 324520703
                                                                                              SPACERS, REAR DOOR HINGES
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              # 011
                                                                                              MPN: 324520711
                                                                                              LH COVER PLATE
                                                                                              from £4.05
                                                                                              from £4.05
                                                                                              # 011
                                                                                              MPN: 324520722
                                                                                              TIE ROD FOR RH ACTUATOR CONTROL
                                                                                              from £0.64
                                                                                              from £0.64
                                                                                              # 011
                                                                                              MPN: 324520723
                                                                                              TIE ROD FOR LH ACTUATOR CONTROL
                                                                                              from £0.64
                                                                                              from £0.64
                                                                                              # 012
                                                                                              MPN: 53451389
                                                                                              SPRING CLIP
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              # 013
                                                                                              MPN: 324520245
                                                                                              LH DOOR LOCK
                                                                                              from £16.30
                                                                                              from £16.30
                                                                                              # 013
                                                                                              MPN: 324520246
                                                                                              RH DOOR LOCK
                                                                                              from £16.77
                                                                                              from £16.77
                                                                                              # 014
                                                                                              MPN: 324520712
                                                                                              RH COVER PLATE
                                                                                              from £4.05
                                                                                              from £4.05
                                                                                              # 016
                                                                                              MPN: 112806030
                                                                                              SCREW
                                                                                              from £0.48
                                                                                              from £0.48
                                                                                              # 018
                                                                                              MPN: 314520183
                                                                                              LH DOOR INTERNAL OPENING DEVICE
                                                                                              from £5.10
                                                                                              from £5.10
                                                                                              # 018
                                                                                              MPN: 314520184
                                                                                              RH DOOR INTERNAL OPENING DEVICE
                                                                                              from £4.64
                                                                                              from £4.64
                                                                                              # 020
                                                                                              MPN: 135600050
                                                                                              SPRING WASHER
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 021
                                                                                              MPN: 135900064
                                                                                              FLAT WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 022
                                                                                              MPN: 324520726
                                                                                              CONTROL LEVER
                                                                                              from £1.93
                                                                                              from £1.93
                                                                                              # 025
                                                                                              MPN: 324520718
                                                                                              TIE ROD TO CONTROL DEVICE
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 026
                                                                                              MPN: 53451371
                                                                                              SPRING CLIP
                                                                                              from £0.74
                                                                                              from £0.74
                                                                                              This part replaces part number 14578080
                                                                                              # 027
                                                                                              MPN: 314520419
                                                                                              SPRING CLIP
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              # 028
                                                                                              MPN: 324520716
                                                                                              TIE ROD TO CONTROL SAFETY
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 029
                                                                                              MPN: 314520420
                                                                                              SPRING CLIP
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              # 030
                                                                                              MPN: 314520153
                                                                                              LH SAFETY CONTROL
                                                                                              from £2.31
                                                                                              from £2.31
                                                                                              # 030
                                                                                              MPN: 314520154
                                                                                              RH SAFETY CONTROL
                                                                                              from £2.31
                                                                                              from £2.31
                                                                                              # 032
                                                                                              MPN: 135600060
                                                                                              SPRING WASHER
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 033
                                                                                              MPN: 324520721
                                                                                              TIE ROD TO CONTROL SAFETY
                                                                                              # 034
                                                                                              MPN: 314520428
                                                                                              LINK ROD
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              # 035
                                                                                              MPN: 314553427
                                                                                              KNOB
                                                                                              from £9.22
                                                                                              from £9.22
                                                                                              This part replaces part number 314520427
                                                                                              # 036
                                                                                              MPN: 167590414
                                                                                              SELF TAPPING SCREW
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 037
                                                                                              MPN: 135900043
                                                                                              FLAT WASHER
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              This part replaces part number 14496207
                                                                                              # 038
                                                                                              MPN: 314551415
                                                                                              SCREW
                                                                                              from £6.65
                                                                                              from £6.65
                                                                                              # 039
                                                                                              MPN: 314520151
                                                                                              PIN
                                                                                              from £14.14
                                                                                              from £14.14
                                                                                              # 040
                                                                                              MPN: 314520406
                                                                                              2MM SHIM
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              # 040
                                                                                              MPN: 314520407
                                                                                              1MM SHIM
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              # 041
                                                                                              MPN: 314520413
                                                                                              COVER PLATE
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 045
                                                                                              MPN: 324520242
                                                                                              WASHER
                                                                                              from £3.66
                                                                                              from £3.66
                                                                                              # 046
                                                                                              MPN: 314520408
                                                                                              PIN
                                                                                              from £1.49
                                                                                              from £1.49
                                                                                              # 048
                                                                                              MPN: 135600050
                                                                                              SPRING WASHER
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 049
                                                                                              MPN: 136110055
                                                                                              FLAT WASHER
                                                                                              from £0.78
                                                                                              from £0.78
