032 - Front Doors

Maserati 418 / 4.24v / 430 Front Doors Parts Diagram

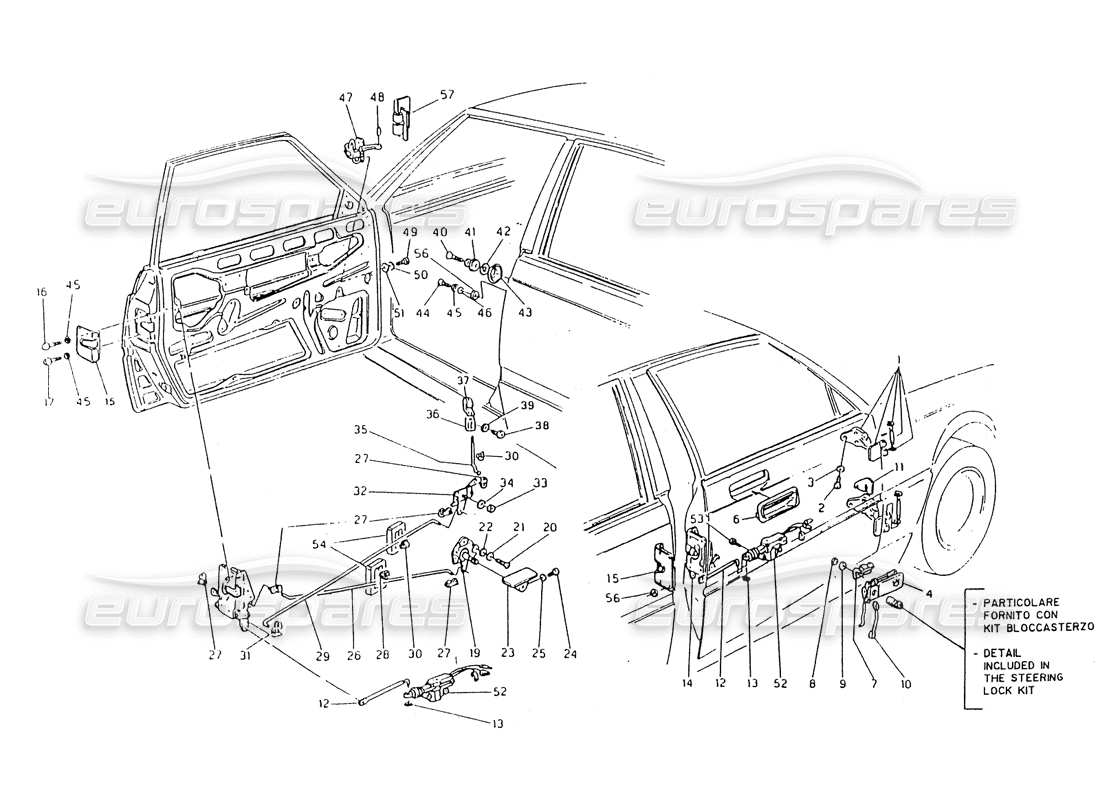

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 314520113
                                                                                                            DOOR HINGE
                                                                                                            from £31.64
                                                                                                            from £31.64
                                                                                                            # 002
                                                                                                            MPN: 167570825
                                                                                                            SCREW
                                                                                                            from £1.26
                                                                                                            from £1.26
                                                                                                            # 004
                                                                                                            MPN: 324550021
                                                                                                            LH EXTERIOR HANDLE SET
                                                                                                            VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                                                                                            from £9.72
                                                                                                            from £9.72
                                                                                                            # 004
                                                                                                            MPN: 324550022
                                                                                                            RH EXTERIOR HANDLE SET
                                                                                                            VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                                                                                            from £8.17
                                                                                                            from £8.17
                                                                                                            # 004
                                                                                                            MPN: 324550022
                                                                                                            RH EXTERIOR HANDLE SET
                                                                                                            VALID FOR 51 / 53 / 62 / 69 / 79
                                                                                                            from £8.17
                                                                                                            from £8.17
                                                                                                            # 004
                                                                                                            MPN: 324553023
                                                                                                            LH EXTERIOR HANDLE SET
                                                                                                            VALID FOR 51 / 53 / 62 / 69 / 79
                                                                                                            # 006
                                                                                                            MPN: 324520364
                                                                                                            OUTER DOOR HANDLE PLATE
                                                                                                            from £1.55
                                                                                                            from £1.55
                                                                                                            # 007
                                                                                                            MPN: 324520381
                                                                                                            HANDLE CRAMP
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            # 009
                                                                                                            MPN: 314520417
                                                                                                            SPRING WASHER
                                                                                                            from £1.63
                                                                                                            from £1.63
                                                                                                            This part replaces part number 314520415
                                                                                                            # 010
                                                                                                            MPN: 324520020
                                                                                                            TIE ROD TO CONTROL HANDLE
                                                                                                            from £0.84
                                                                                                            from £0.84
                                                                                                            # 011
                                                                                                            MPN: 314520403
                                                                                                            PLATE
                                                                                                            from £7.73
                                                                                                            from £7.73
                                                                                                            # 012
                                                                                                            MPN: 324520422
                                                                                                            ACTUATOR TIE ROD
                                                                                                            from £0.98
                                                                                                            from £0.98
                                                                                                            # 013
                                                                                                            MPN: 53451389
                                                                                                            SPRING CLIP
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 014
                                                                                                            MPN: 324520145
                                                                                                            LH DOOR LOCK
                                                                                                            from £15.46
                                                                                                            from £15.46
                                                                                                            # 014
                                                                                                            MPN: 324520146
                                                                                                            RH DOOR LOCK
                                                                                                            from £15.46
                                                                                                            from £15.46
                                                                                                            # 015
                                                                                                            MPN: 314520411
                                                                                                            LH LOCK COVER PLATE
                                                                                                            from £440.42
                                                                                                            from £440.42
                                                                                                            # 015
                                                                                                            MPN: 314520412
                                                                                                            RH LOCK COVER PLATE
                                                                                                            from £5.21
                                                                                                            from £5.21
                                                                                                            # 017
                                                                                                            MPN: 112806030
                                                                                                            SCREW
                                                                                                            from £0.48
                                                                                                            from £0.48
                                                                                                            # 019
                                                                                                            MPN: 314520183
                                                                                                            LH DOOR INTERNAL OPENING DEVICE
                                                                                                            from £5.10
                                                                                                            from £5.10
                                                                                                            # 019
                                                                                                            MPN: 314520184
                                                                                                            RH DOOR INTERNAL OPENING DEVICE
                                                                                                            from £4.64
                                                                                                            from £4.64
                                                                                                            # 021
                                                                                                            MPN: 135600050
                                                                                                            SPRING WASHER
                                                                                                            from £0.78
                                                                                                            from £0.78
                                                                                                            # 022
                                                                                                            MPN: 135900064
                                                                                                            FLAT WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 023
                                                                                                            MPN: 314553426
                                                                                                            DOOR INTERNAL OPENING LEVER (ANTRACITE COLOR)
                                                                                                            from £95.00
                                                                                                            from £95.00
                                                                                                            This part replaces part number 314520426
                                                                                                            # 023
                                                                                                            MPN: 314553426
                                                                                                            DOOR INTERNAL OPENING LEVER (ANTRACITE COLOR)
                                                                                                            from £95.00
                                                                                                            from £95.00
                                                                                                            This part replaces part number 314520426
                                                                                                            # 026
                                                                                                            MPN: 324520418
                                                                                                            ROD
                                                                                                            from £0.84
                                                                                                            from £0.84
                                                                                                            # 027
                                                                                                            MPN: 53451371
                                                                                                            SPRING CLIP
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            This part replaces part number 14578080
                                                                                                            # 028
                                                                                                            MPN: 314520419
                                                                                                            SPRING CLIP
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 029
                                                                                                            MPN: 324520416
                                                                                                            TIE ROD, DOOR SAFETY
                                                                                                            from £2.04
                                                                                                            from £2.04
                                                                                                            # 030
                                                                                                            MPN: 314520420
                                                                                                            SPRING CLIP
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 032
                                                                                                            MPN: 314520153
                                                                                                            LH SAFETY CONTROL
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            # 032
                                                                                                            MPN: 314520154
                                                                                                            RH SAFETY CONTROL
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            # 034
                                                                                                            MPN: 314520417
                                                                                                            SPRING WASHER
                                                                                                            from £1.63
                                                                                                            from £1.63
                                                                                                            This part replaces part number 314520415
                                                                                                            # 035
                                                                                                            MPN: 324520435
                                                                                                            TIE ROD FOR LH FRONT DOOR SAFETY
                                                                                                            from £0.64
                                                                                                            from £0.64
                                                                                                            # 035
                                                                                                            MPN: 324520436
                                                                                                            TIE ROD FOR RH FRONT DOOR SAFETY
                                                                                                            from £0.64
                                                                                                            from £0.64
                                                                                                            # 036
                                                                                                            MPN: 314520428
                                                                                                            LINK ROD
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 037
                                                                                                            MPN: 314553427
                                                                                                            KNOB
                                                                                                            from £9.22
                                                                                                            from £9.22
                                                                                                            This part replaces part number 314520427
                                                                                                            # 038
                                                                                                            MPN: 167590414
                                                                                                            SELF TAPPING SCREW
                                                                                                            from £1.55
                                                                                                            from £1.55
                                                                                                            # 039
                                                                                                            MPN: 135900043
                                                                                                            FLAT WASHER
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            This part replaces part number 14496207
                                                                                                            # 040
                                                                                                            MPN: 314551415
                                                                                                            SCREW
                                                                                                            AFTER CHANGE
                                                                                                            from £6.65
                                                                                                            from £6.65
                                                                                                            # 041
                                                                                                            MPN: 314520151
                                                                                                            PIN
                                                                                                            from £14.14
                                                                                                            from £14.14
                                                                                                            # 042
                                                                                                            MPN: 314520406
                                                                                                            2MM SHIM
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 042
                                                                                                            MPN: 314520407
                                                                                                            1MM SHIM
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 043
                                                                                                            MPN: 314520413
                                                                                                            COVER PLATE
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 045
                                                                                                            MPN: 314520417
                                                                                                            SPRING WASHER
                                                                                                            from £1.63
                                                                                                            from £1.63
                                                                                                            This part replaces part number 314520415
                                                                                                            # 047
                                                                                                            MPN: 314520142
                                                                                                            DOOR LOCK TIE ROD
                                                                                                            from £56.22
                                                                                                            from £56.22
                                                                                                            # 048
                                                                                                            MPN: 314520408
                                                                                                            PIN
                                                                                                            from £1.49
                                                                                                            from £1.49
                                                                                                            # 050
                                                                                                            MPN: 135600050
                                                                                                            SPRING WASHER
                                                                                                            from £0.78
                                                                                                            from £0.78
                                                                                                            # 051
                                                                                                            MPN: 136110055
                                                                                                            FLAT WASHER
                                                                                                            from £0.78
                                                                                                            from £0.78
                                                                                                            # 052
                                                                                                            MPN: 323320194
                                                                                                            MOTOR ACTUATOR
                                                                                                            from £71.32
                                                                                                            from £71.32
                                                                                                            # 054
                                                                                                            MPN: 314520429
                                                                                                            REAR TIE ROD VIBRATION DAMPER
                                                                                                            from £1.55
                                                                                                            from £1.55
                                                                                                            # 055
                                                                                                            MPN: 313451104
                                                                                                            Key
                                                                                                            from £31.45
                                                                                                            from £31.45
                                                                                                            This part replaces part number 313420102
                                                                                                            # 056
                                                                                                            MPN: 314520414
                                                                                                            WASHER
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 057
                                                                                                            MPN: 312520322
                                                                                                            DOOR LIMIT STOP ACTUATOR
                                                                                                            from £29.70
                                                                                                            from £29.70
