031 - Trunk Lid, Hinges and Opening Controls

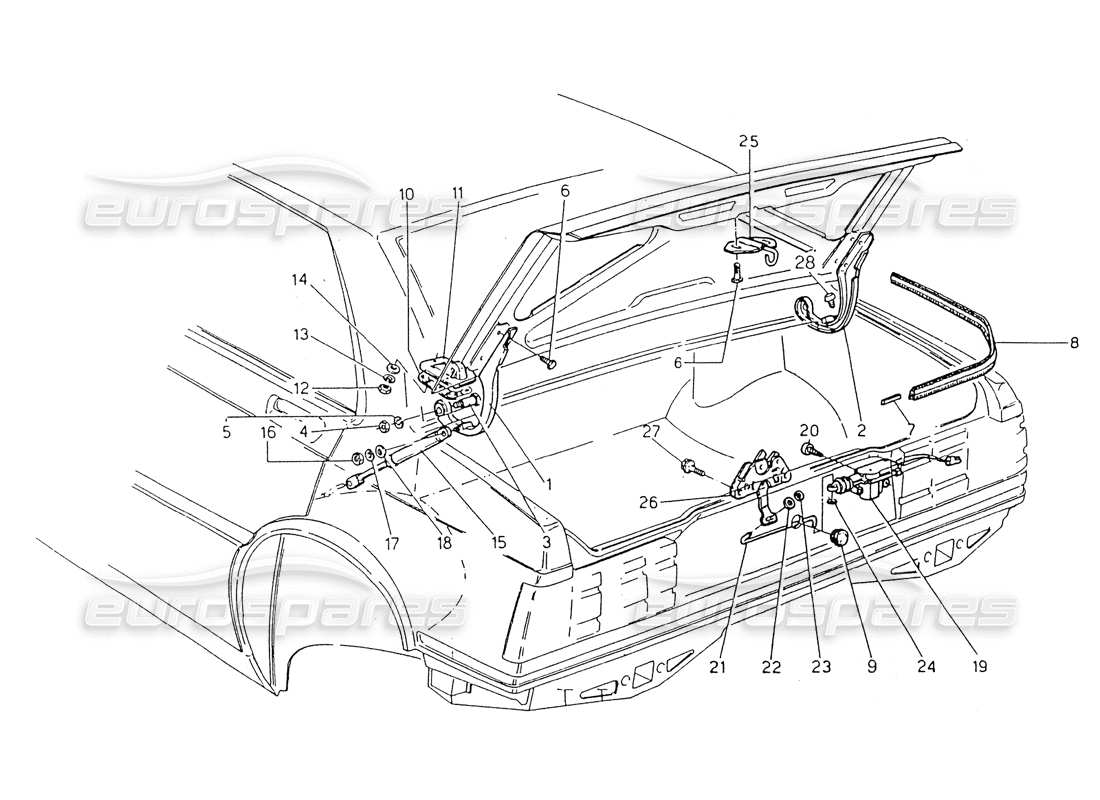

Maserati 418 / 4.24v / 430 Trunk Lid, Hinges and Opening Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 314720113
LH HINGE
from £2.93
from £2.93
This part replaces part number 314722113
# 002
MPN: 314720114
RH HINGE
from £5.71
from £5.71
This part replaces part number 314722114
# 003
MPN: 314720328
PIN FOR JOINT PIN
from £3.97
from £3.97
# 004
MPN: 125100060
NUT
# 005
MPN: 135300064
SPRING WASHER
# 006
MPN: 314320345
SCREW
from £42.73
from £42.73
# 007
MPN: 314520445
INSERT
from £0.47
from £0.47
# 008
MPN: 324720350
GASKET
Supersession
Supersession
# 009
MPN: 165000160
GROMMET
# 010
MPN: 314720327
HINGE GASKET
from £0.71
from £0.71
# 011
MPN: 314720325
LH HINGE SUPPORT
from £2.24
from £2.24
# 011
MPN: 314720326
RH HINGE SUPPORT
from £2.24
from £2.24
# 012
MPN: 125100060
NUT
# 013
MPN: 135300064
SPRING WASHER
# 014
MPN: 136200064
FLAT WASHER
# 015
MPN: 324720118
TRUNK GAS HOIST
from £59.28
from £59.28
# 016
MPN: 125100060
NUT
# 017
MPN: 135300064
SPRING WASHER
# 018
MPN: 135900064
FLAT WASHER
from £0.47
from £0.47
# 019
MPN: 323320195
MOTOR ACTUATOR
from £28.31
from £28.31
This part replaces part number 313320195
# 020
MPN: 119148160
SCREW
# 021
MPN: 324720337
LOCK CONTROL TIE ROD
from £0.51
from £0.51
# 022
MPN: 30471338
WASHER
from £1.11
from £1.11
# 023
MPN: 30451423
SPRING CLIP
# 024
MPN: 53451389
SPRING CLIP
from £1.11
from £1.11
# 025
MPN: 34720110
TRUNK LID STRIKER
# 026
MPN: 30471104
TRUNK LID KEY LOCK
from £15.38
from £15.38
# 027
MPN: 314320325
SCREW
Supersession
Supersession
# 028
MPN: 14720331
BUMPER
