030 - Engine Hood, Hinges and Opening Controls

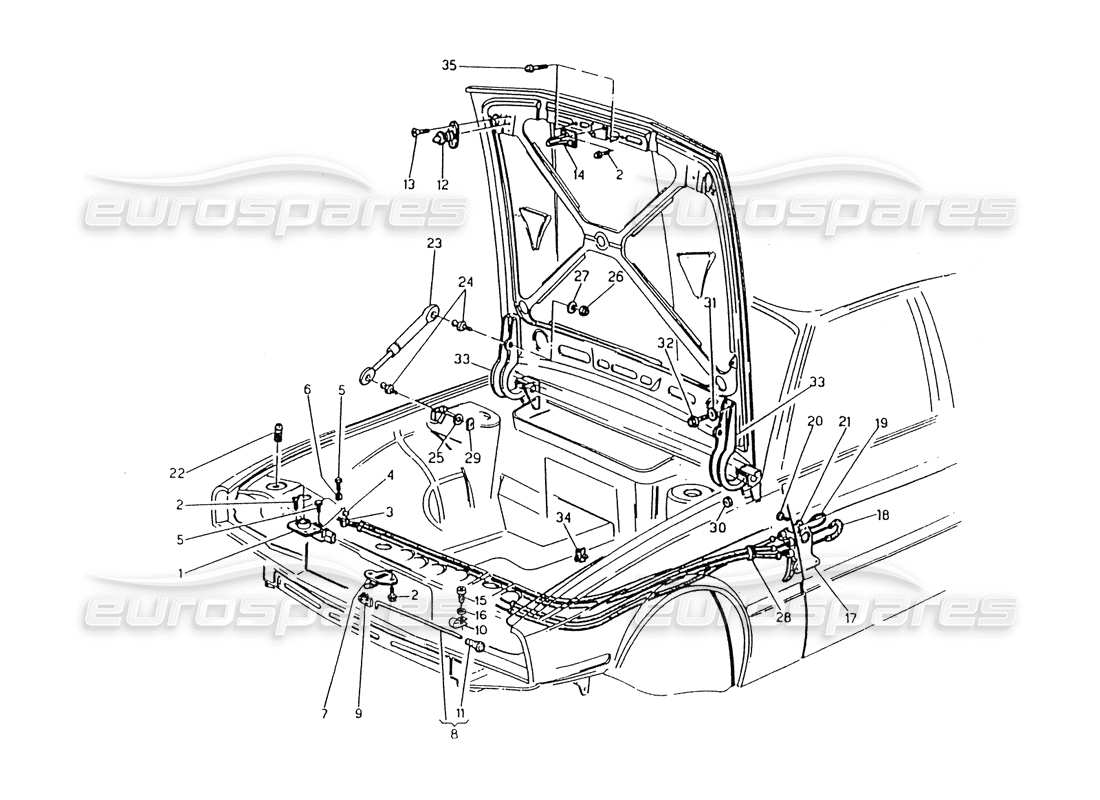

Maserati 418 / 4.24v / 430 Engine Hood, Hinges and Opening Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 314320005
HOOD LOCK
from £88.83
from £88.83
# 002
MPN: 314320345
SCREW
from £42.73
from £42.73
# 003
MPN: 314320379
CLAMP
from £1.98
from £1.98
# 004
MPN: 30431380
PAD FOR CLAMP
from £0.71
from £0.71
# 005
MPN: 101205008
SCREW
# 006
MPN: 53431306
CLAMP
from £2.62
from £2.62
# 007
MPN: 314320131
SAFETY LOCK
from £222.55
from £222.55
# 008
MPN: 394350105
ROD
from £76.71
from £76.71
# 009
MPN: 314320351
SPRING CLIP
from £1.11
from £1.11
# 010
MPN: 394350352
SPRING CLIP
from £0.71
from £0.71
# 011
MPN: 364302331
KNOB
from £6.11
from £6.11
# 012
MPN: 314320008
PIN
from £28.63
from £28.63
# 013
MPN: 113106014
SCREW
# 014
MPN: 314320130
SAFETY LOCK STRIKER
from £36.29
from £36.29
# 015
MPN: 167590414
SELF TAPPING SCREW
from £1.59
from £1.59
# 016
MPN: 135900043
FLAT WASHER
from £1.11
from £1.11
This part replaces part number 14496207
# 017
MPN: 314320107
HOOD RELEASE HANDLE
from £4.32
from £4.32
# 018
MPN: 314320010
CONTROL CABLE
from £8.31
from £8.31
# 019
MPN: 314320009
CONTROL CABLE
from £10.97
from £10.97
# 020
MPN: 119148190
SCREW
# 021
MPN: 135900053
FLAT WASHER
# 022
MPN: 374330426
PAD
from £1.11
from £1.11
This part replaces part number 53431319
# 023
MPN: 314320122
ENGINE COVER STRUT
from £26.20
from £26.20
# 024
MPN: 30471311
GAS SPRING PIN
from £3.97
from £3.97
# 025
MPN: 135600060
SPRING WASHER
from £0.79
from £0.79
# 026
MPN: 128350060
SELF LOCKING NUT
# 027
MPN: 136110066
FLAT WASHER
# 028
MPN: 314320355
FAIRLEAD
from £0.72
from £0.72
# 029
MPN: 314320330
PLATE
from £1.59
from £1.59
# 030
MPN: 314320326
NUT
from £1.11
from £1.11
# 031
MPN: 136110090
WASHER
from £1.11
from £1.11
# 032
MPN: 314320325
SCREW
Supersession
Supersession
# 033
MPN: 314320003
RH AND LH HINGE FOR ENGINE HOOD
from £119.10
from £119.10
This part replaces part number 314320004
# 034
MPN: 314520419
SPRING CLIP
from £0.71
from £0.71
# 035
MPN: 314320124
PAD
from £1.57
from £1.57
