maserati 418 / 4.24v / 430 bodywork-front side,roof p.,doors,hoods parts diagram

029 - Bodywork-Front Side,Roof P.,Doors,Hoods

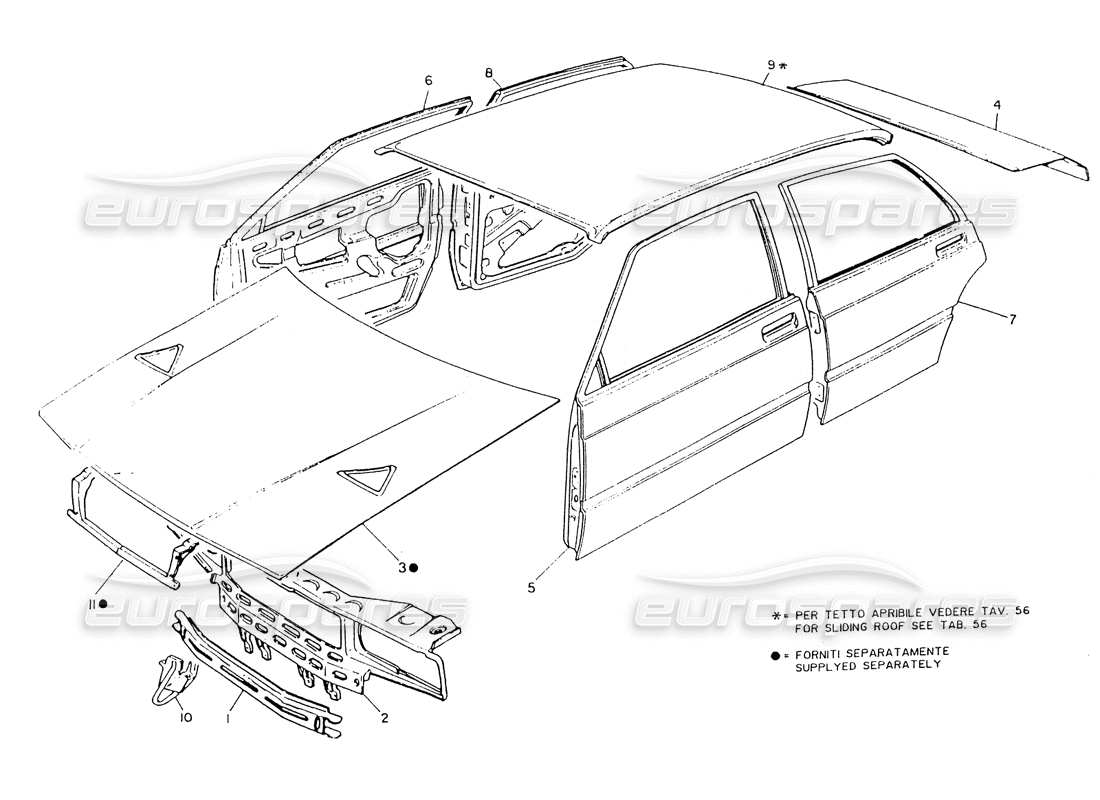

Maserati 418 / 4.24v / 430 Bodywork-Front Side,Roof P.,Doors,Hoods Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 311320300
              FRONT LOWER CROSS MEMBER
              from £62.40
              from £62.40
              # 002
              MPN: 311362103
              HEAD LAMP PANEL ASSY
              from £69.45
              from £69.45
              This part replaces part number 311352103
              # 003
              MPN: 314350100
              ENGINE HOOD ASSY
              VALID FOR 51 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
              from £367.50
              from £367.50
              # 003
              MPN: 314353100
              ENGINE HOOD ASSY (WITH AIR INTAKE)
              VALID FOR 53 / 62 / 69 / 79
              from £1,472.88
              from £1,472.88

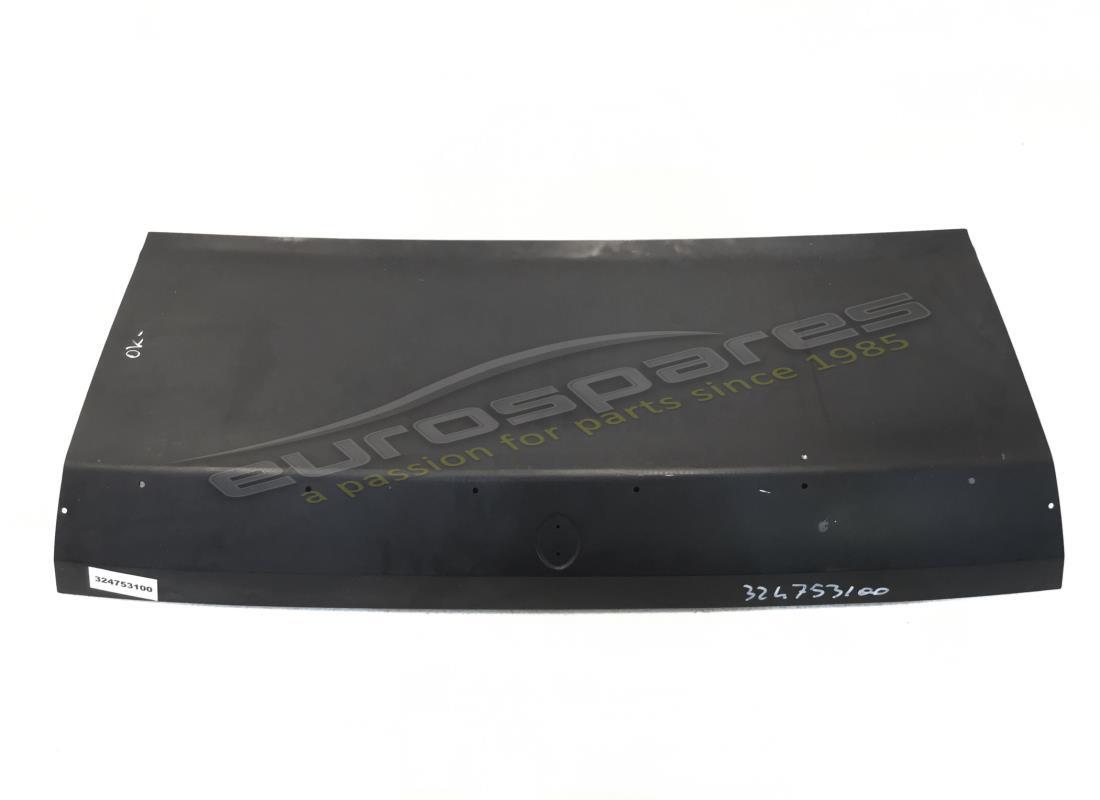

              # 004
              MPN: 324753100
              TRUNK LID ASSY
              from £393.75
              from £393.75
              # 005
              MPN: 324520103
              LH SIDE DOOR ASSY
              VALID FOR 51 / 53 / 58 / 59 / 62
              from £285.86
              from £285.86
              This part replaces part number 324530101
              # 005
              MPN: 324530101
              LH SIDE DOOR ASSY
              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
              Supersession
              Supersession
              # 006
              MPN: 324520104
              RH SIDE DOOR ASSY
              VALID FOR 51 / 53 / 58 / 59 / 62
              from £279.11
              from £279.11
              This part replaces part number 324530102
              # 006
              MPN: 324530102
              RH SIDE DOOR ASSY
              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
              Supersession
              Supersession
              # 007
              MPN: 324520203
              LH REAR DOOR ASSY
              VALID FOR 51 / 53 / 58 / 59 / 62
              from £288.85
              from £288.85
              This part replaces part number 324530201
              # 007
              MPN: 324530201
              LH REAR DOOR ASSY
              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
              Supersession
              Supersession
              # 008
              MPN: 324520204
              RH REAR DOOR ASSY
              VALID FOR 51 / 53 / 58 / 59 / 62
              from £288.85
              from £288.85
              This part replaces part number 324530202
              # 008
              MPN: 324530202
              RH REAR DOOR ASSY
              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
              Supersession
              Supersession
              # 009
              MPN: 322520465
              OUTSIDE BODY PANEL FOR ROOF
              from £438.03
              from £438.03
              # 010
              MPN: 311353127
              FRONT TOW HOOK
              from £7.15
              from £7.15
              # 011
              MPN: 314352140
              RADIATOR LOUVER SUPPORT
              from £15.29
              from £15.29
