025 - Power Brake Piping

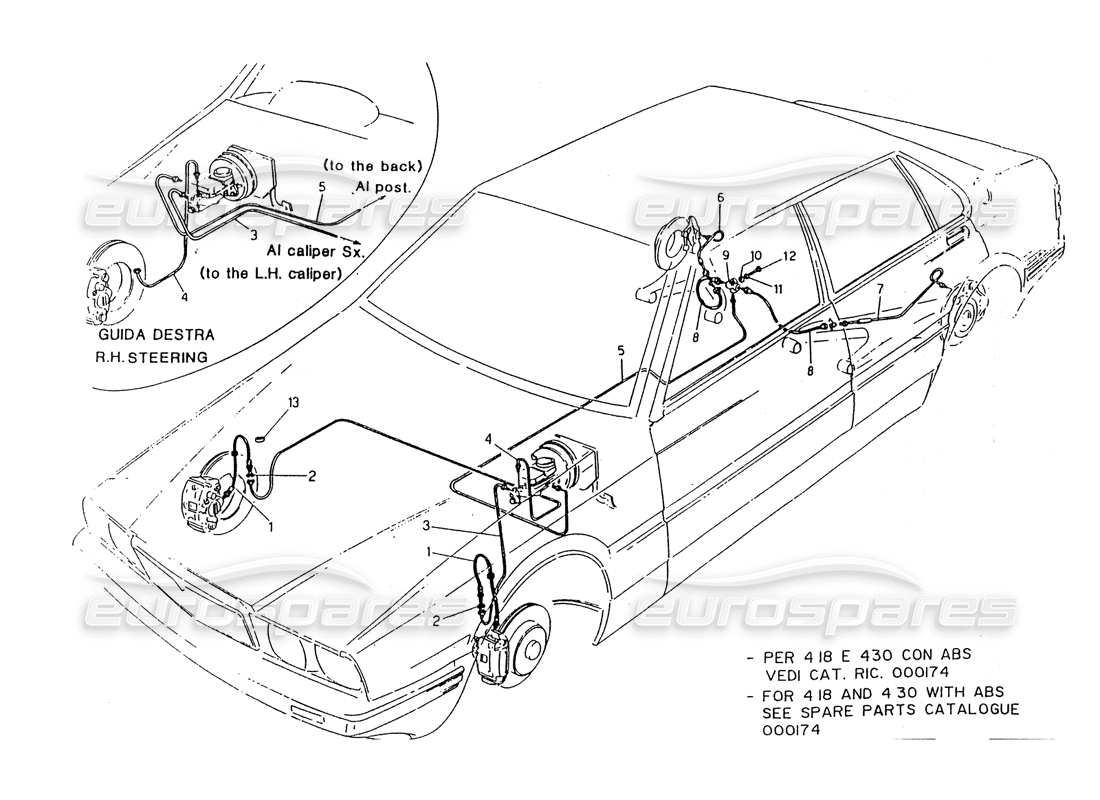

Maserati 418 / 4.24v / 430 Power Brake Piping Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 327456129

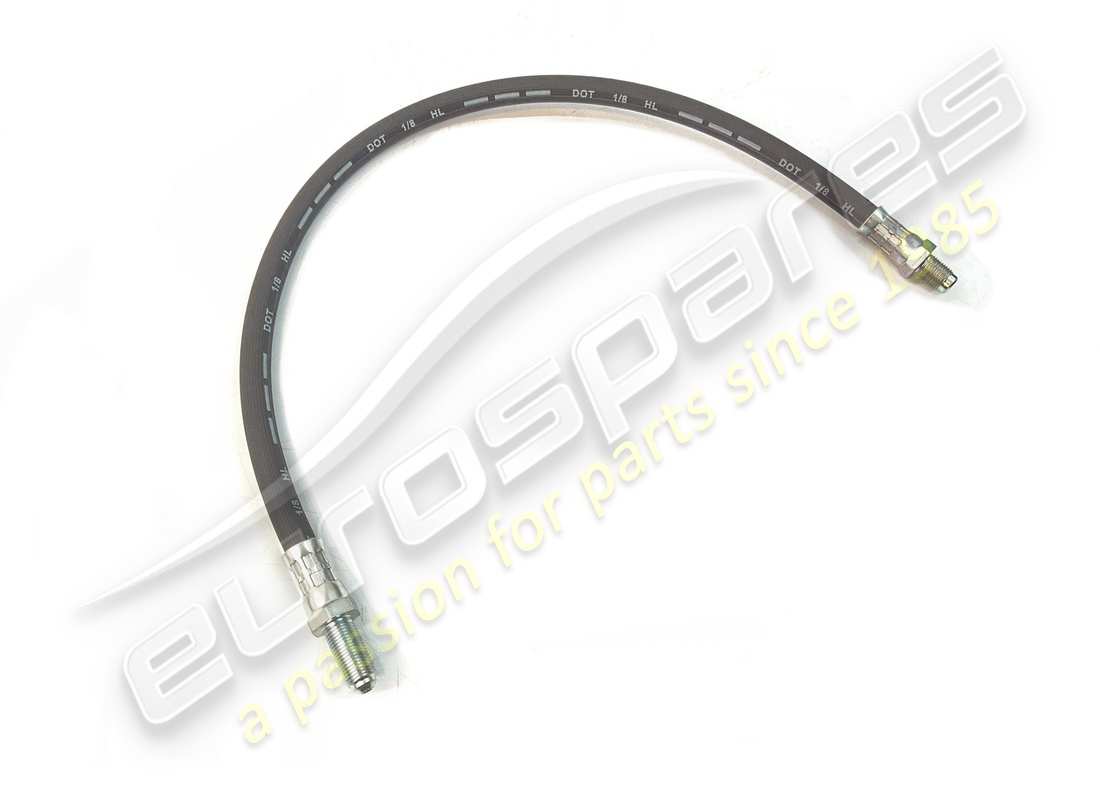

BRAKE HOSE
from £77.12
from £77.12
# 002
MPN: 135600100
SPRING WASHER
from £1.08
from £1.08
# 003
MPN: 327456117
brake line
Valid for 53 / 62
from £3.24
from £3.24
# 003
MPN: 397470120
brake line
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 004
MPN: 327456118
brake line
Valid for 53 / 62
from £0.71
from £0.71
# 004
MPN: 327470119
brake line
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 005
MPN: 327456131
brake line
Valid for 53 / 62
from £2.05
from £2.05
# 005
MPN: 327470132
brake line
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £5.91
from £5.91
# 006
MPN: 317420134
brake line
VALID FOR 53 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
# 007
MPN: 317420133
brake line
VALID FOR 53 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £8.36
from £8.36
# 008
MPN: 317420129

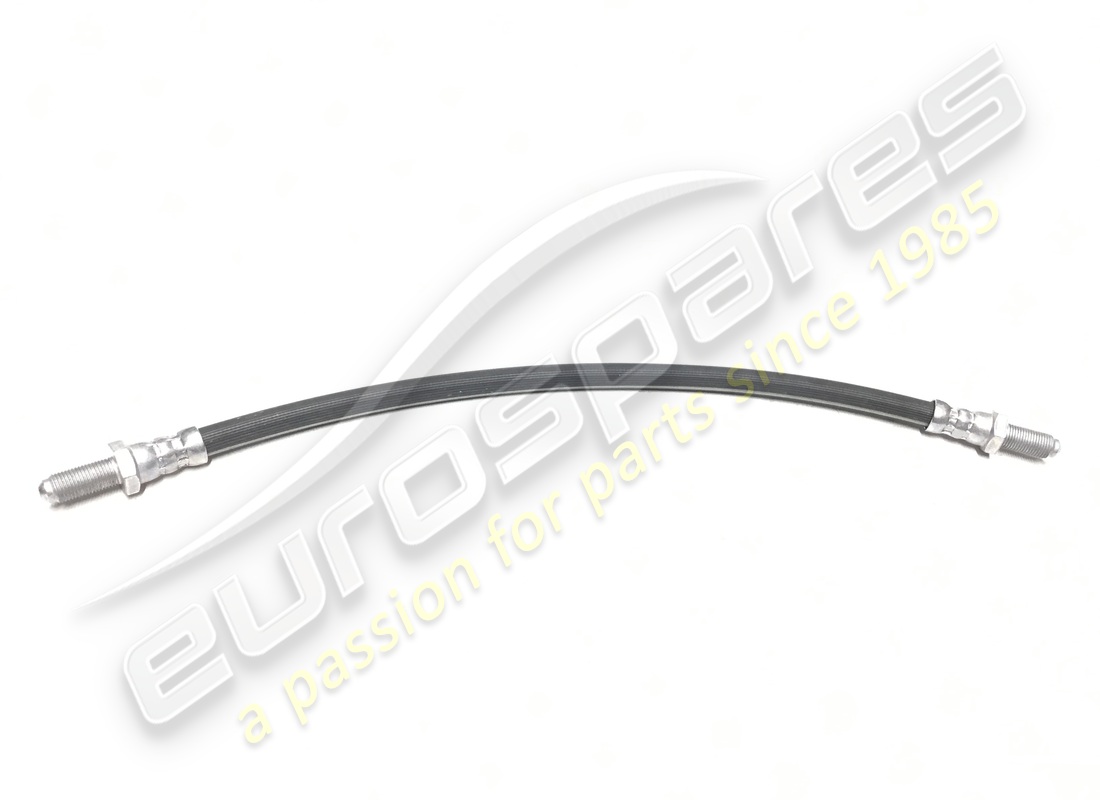

BRAKE HOSE
from £29.99
from £29.99
# 009
MPN: 557401307
IT-UNION
from £2.25
from £2.25
# 010
MPN: 135900064
FLAT WASHER
from £0.47
from £0.47
# 011
MPN: 135600060
SPRING WASHER
from £0.77
from £0.77
# 012
MPN: 100706030
SCREW
# 013
MPN: 319220361
GROMMET
from £2.32
from £2.32
