maserati 418 / 4.24v / 430 pedal board and power brake. lh steering parts diagram

024 - Pedal Board and Power Brake. LH Steering

Maserati 418 / 4.24v / 430 Pedal Board and Power Brake. LH Steering Parts Diagram

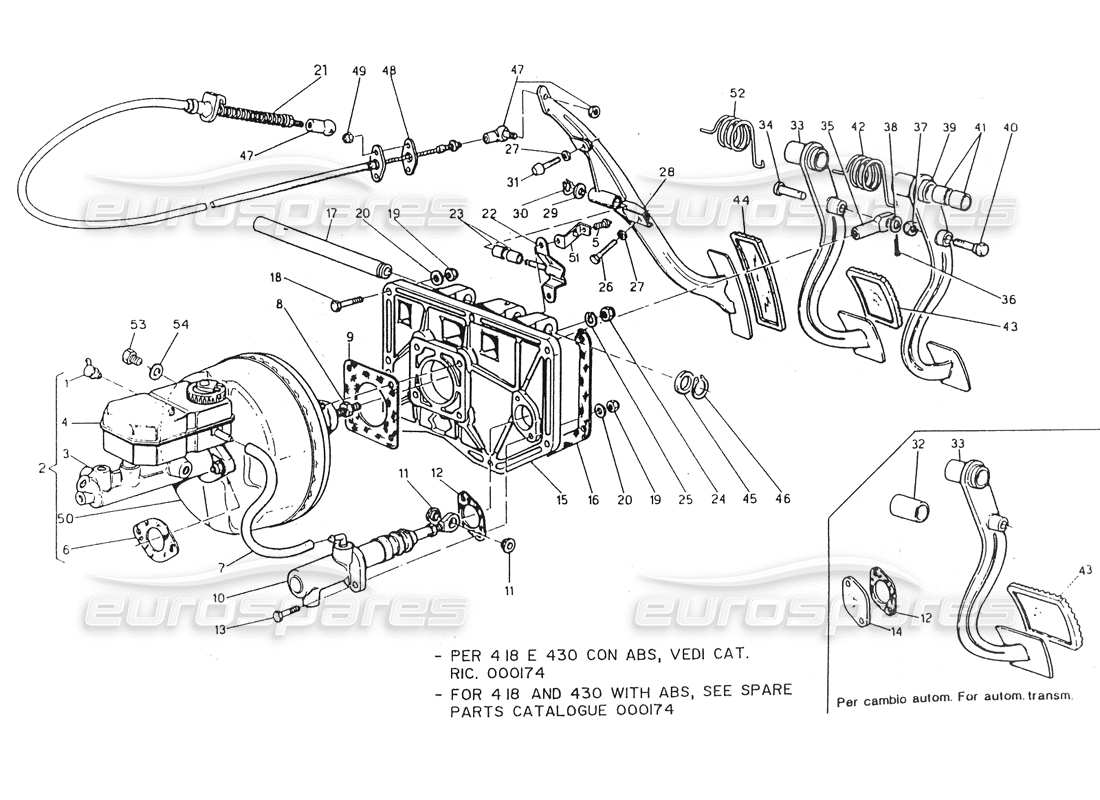

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 317420108
      CHEK VALVE
      Valid for 53 / 59
      from £16.35
      from £16.35
      # 002
      MPN: 317420112
      BRAKE BOOSTER WITH PUMP ASSY
      from £615.88
      from £615.88
      This part replaces part number 317420103

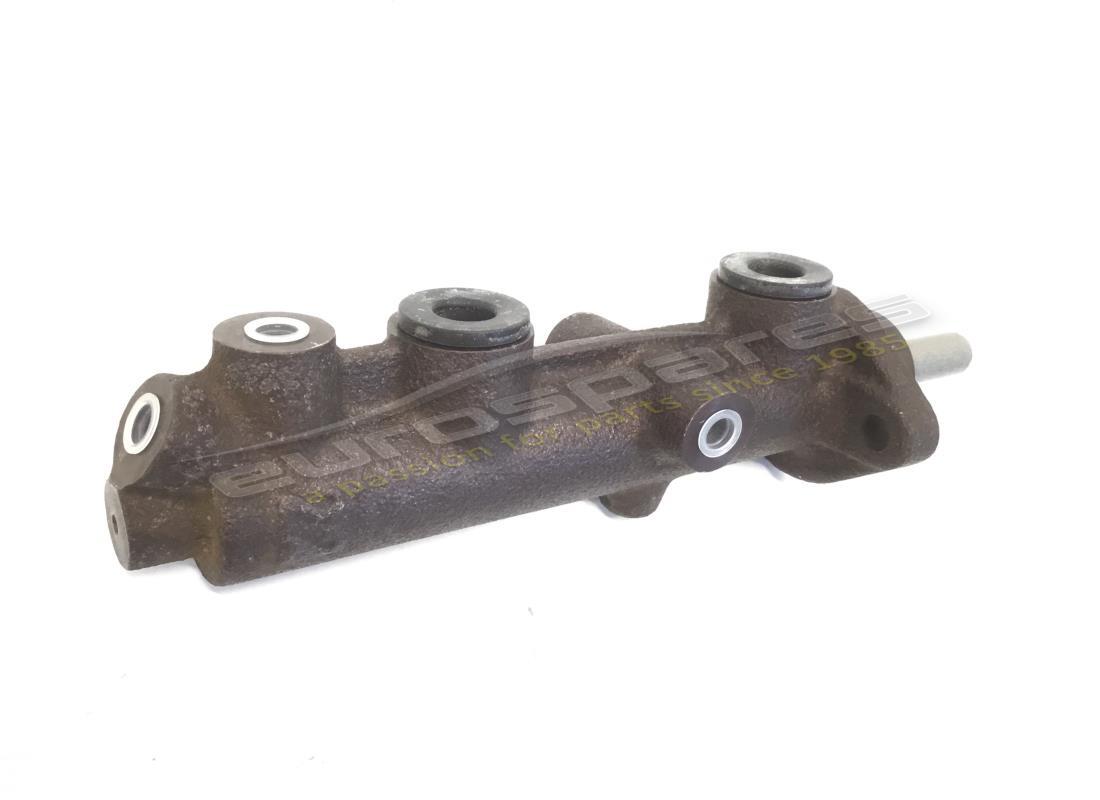

      # 003
      MPN: 317420101
      BRAKE PUMP
      from £367.66
      from £367.66
      # 004
      MPN: 317420104
      BRAKE PUMP TANK
      Valid for 53 / 59
      from £18.46
      from £18.46
      # 005
      MPN: 323850107
      STOP SWITCH
      Valid for 53 / 59
      Supersession
      Supersession
      # 006
      MPN: 317420304
      GASKET
      Valid for 53 / 59
      from £1.54
      from £1.54
      # 007
      MPN: 318220329
      PIPING
      Valid for 53 / 59
      from £1.05
      from £1.05
      # 008
      MPN: 125300100
      CHECK NUT
      Valid for 53 / 59
      # 009
      MPN: 317420303
      GASKET
      Valid for 53 / 59
      from £1.54
      from £1.54
      # 010
      MPN: 318220101
      CLUTCH PRIMARY PUMP
      Valid for 53 / 59
      from £225.00
      from £225.00
      # 011
      MPN: 318420325
      BUSHING
      Valid for 53 / 59
      from £1.07
      from £1.07
      # 012
      MPN: 318220307
      GASKET
      Valid for 53 / 59
      from £1.61
      from £1.61
      # 013
      MPN: 100708040
      SCREW
      Valid for 53 / 59
      # 014
      MPN: 318432322
      COVER
      Valid for 59
      # 015
      MPN: 398450304
      PEDAL BOARD SUPPORT
      Valid for 53 / 62
      from £38.60
      from £38.60
      # 016
      MPN: 318420348
      GASKET
      Valid for 53 / 59
      from £0.68
      from £0.68
      # 017
      MPN: 318420328
      PEDAL BOARD PIN
      Valid for 53 / 59
      from £8.24
      from £8.24
      # 018
      MPN: 100708030
      SCREW
      Valid for 53 / 59
      # 019
      MPN: 128350080
      SELF LOCKING NUT
      Valid for 53 / 59
      Supersession
      Supersession
      # 020
      MPN: 135900084
      WASHER
      Valid for 53 / 59
      # 021
      MPN: 318220010
      ACCELERATOR CONTROL CABLE
      Valid for 51 / 58
      # 021
      MPN: 318253010
      ACCELERATOR CONTROL CABLE
      Valid for 53 / 59
      Supersession
      Supersession
      # 021
      MPN: 318255010
      ACCELERATOR CONTROL CABLE
      Valid for 59
      from £3.14
      from £3.14
      # 022
      MPN: 318420110
      ACCELERATOR PEDAL SUPPORT
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £2.95
      from £2.95
      # 023
      MPN: 318420334
      BUSHING
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £1.54
      from £1.54
      # 024
      MPN: 125100080
      NUT
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £0.86
      from £0.86
      # 025
      MPN: 138410080
      SPRING WASHER
      VALID FOR 51 / 53 / 58 / 59 / 62
      # 026
      MPN: 101206040
      SCREW
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £0.47
      from £0.47
      # 027
      MPN: 125100060
      NUT
      VALID FOR 51 / 53 / 58 / 59 / 62
      # 028
      MPN: 318420113
      Accelerator Pedal
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £30.00
      from £30.00
      # 029
      MPN: 318420346
      WASHER
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £1.07
      from £1.07
      # 030
      MPN: 150800090
      SNAP RING
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £0.47
      from £0.47
      # 031
      MPN: 318420114
      PAD
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £1.90
      from £1.90
      # 032
      MPN: 518432318
      SPACER
      Valid for 59
      # 033
      MPN: 328453104
      BRAKE PEDAL
      Valid for 53 / 62
      This part replaces part number 318420104
      # 034
      MPN: 318420312
      PIN
      VALID FOR 51 / 53 / 58 / 59 / 62
      # 035
      MPN: 317420300
      THRUST PAD
      VALID FOR 53 / 58 / 59 / 62
      from £0.68
      from £0.68
      # 036
      MPN: 146503220
      COTTER PIN
      VALID FOR 53 / 58 / 59 / 62
      # 037
      MPN: 128300100
      NUT
      VALID FOR 53 / 58 / 59 / 62
      # 038
      MPN: 135910105
      FLAT WASHER
      VALID FOR 53 / 58 / 59 / 62
      # 039
      MPN: 398450121
      CLUTCH PEDAL
      VALID FOR 53 / 58 / 62
      # 040
      MPN: 318420326
      PIN
      VALID FOR 53 / 58 / 59 / 62
      from £8.24
      from £8.24
      # 041
      MPN: 318420320
      BUSHING
      VALID FOR 53 / 58 / 59 / 62
      from £9.61
      from £9.61
      # 042
      MPN: 398450308
      SPRING
      VALID FOR 53 / 58 / 62
      from £0.95
      from £0.95
      # 043
      MPN: 318420300
      BRAKE AND CLUTCH PEDAL COVER
      VALID FOR 53 / 58 / 62
      from £3.23
      from £3.23
      # 043
      MPN: 318432300
      BRAKE PEDAL COVER
      Valid for 59
      from £2.39
      from £2.39
      # 044
      MPN: 318420301
      ACCELERATOR PEDAL COVER
      VALID FOR 53 / 58 / 59 / 62
      from £1.50
      from £1.50
      # 045
      MPN: 318420321
      SHIM WASHER
      VALID FOR 53 / 58 / 59 / 62
      # 046
      MPN: 151100180
      SNAP RING
      VALID FOR 53 / 58 / 59 / 62
      from £0.68
      from £0.68
      # 047
      MPN: 318420116
      BALL END PIN
      VALID FOR 53 / 58 / 59 / 62
      from £3.61
      from £3.61
      # 048
      MPN: 318220300
      GASKET
      VALID FOR 53 / 58 / 59 / 62
      from £0.68
      from £0.68
      # 049
      MPN: 128350060
      SELF LOCKING NUT
      VALID FOR 53 / 58 / 59 / 62
      # 050
      MPN: 317420113
      Power Brake
      Valid for 53 / 62
      from £95.68
      from £95.68
      # 051
      MPN: 328453120
      HYDROSTOP SUPPORT
      VALID FOR 53 / 58 / 62
      from £25.11
      from £25.11
      # 052
      MPN: 318420308
      SPRING
      Valid for 53 / 62
      from £2.10
      from £2.10
      # 053
      MPN: 397450503
      PLUG
      Valid for 53 / 62
      from £11.39
      from £11.39
      # 054
      MPN: 397450505
      GASKET
      Valid for 53 / 62
