020 - REAR SHOCK ABSORBER

Maserati 418 / 4.24v / 430 Rear Shock Absorber Parts Diagram

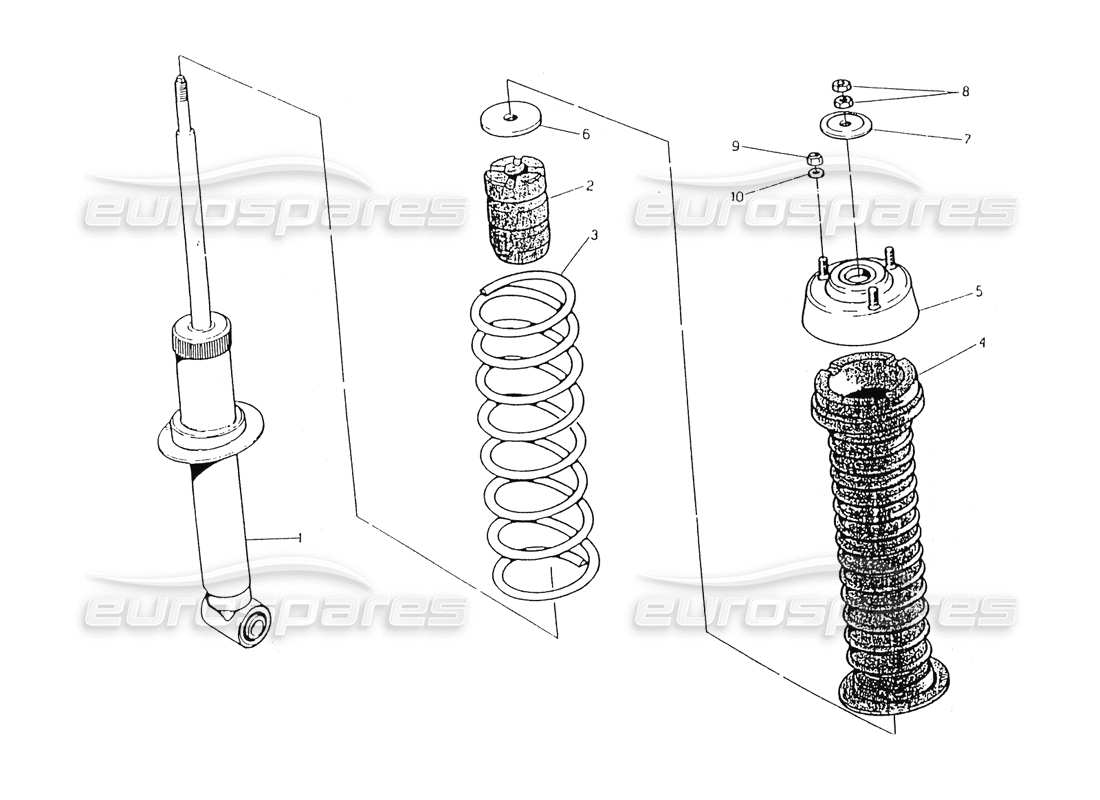

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 347001104
SHOCK ABSORBER
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £153.66
from £153.66
This part replaces part number 327056105
# 002
MPN: 327020332
BUFFER
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
This part replaces part number 317020332
# 003
MPN: 327056334
SPRING
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £28.68
from £28.68
This part replaces part number 347001333
# 004
MPN: 317020331
BELLOWS
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £6.26
from £6.26
# 005
MPN: 317020117
SUPPORT
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £23.79
from £23.79
# 006
MPN: 327012340
WASHER
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £14.76
from £14.76
This part replaces part number 317020340
# 007
MPN: 317020349
UPPER CAP
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £0.70
from £0.70
# 008
MPN: 317020344
NUT
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £1.08
from £1.08
# 009
MPN: 128300080
SELF LOCKING NUT
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
# 010
MPN: 135900084
WASHER
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
