015 - Front Chassis

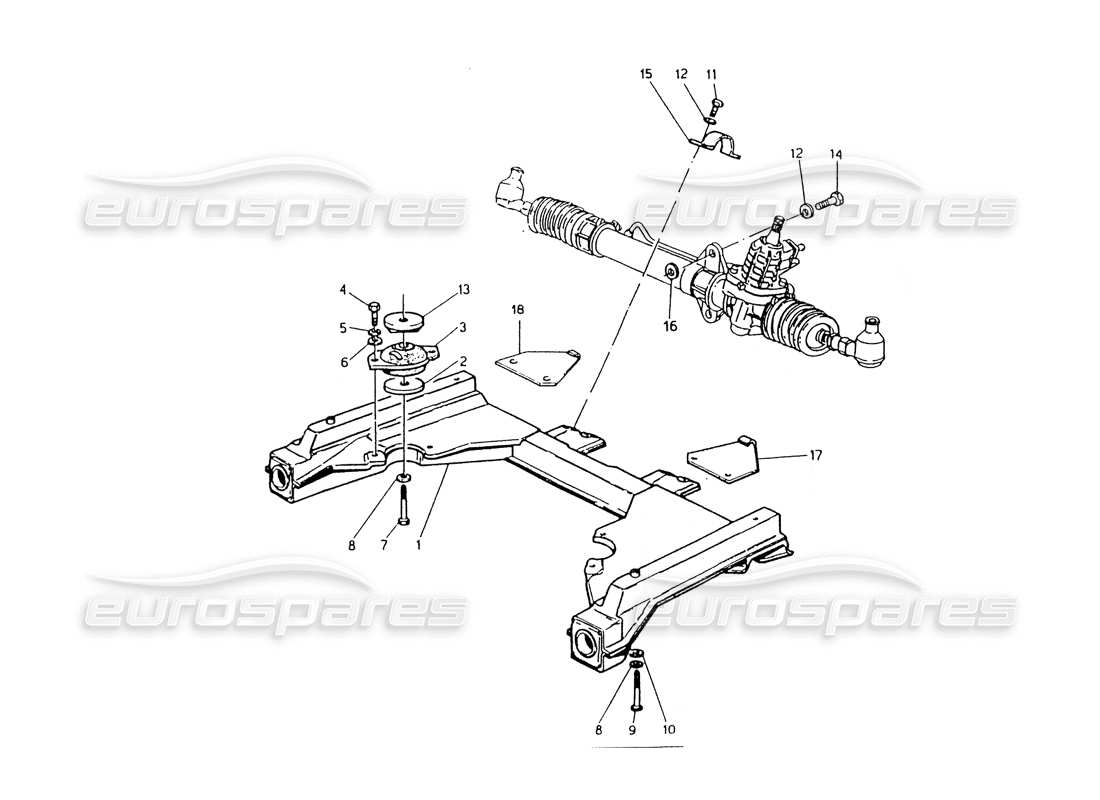

Maserati 418 / 4.24v / 430 Front Chassis Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 362704102
                                  Front Chassis
                                  from £6,354.60
                                  from £6,354.60
                                  This part replaces part number 312753102
                                  # 002
                                  MPN: 314220312
                                  WASHER
                                  from £2.17
                                  from £2.17
                                  # 003
                                  MPN: 314220100
                                  ENGINE SILENTBLOCK
                                  from £48.93
                                  from £48.93
                                  # 006
                                  MPN: 314220314
                                  WASHER
                                  from £1.08
                                  from £1.08
                                  # 008
                                  MPN: 138200120
                                  SPRING WASHER
                                  from £0.78
                                  from £0.78
                                  # 013
                                  MPN: 316220312
                                  WASHER
                                  from £1.08
                                  from £1.08
                                  # 014
                                  MPN: 100710035
                                  SCREW
                                  # 015
                                  MPN: 327856344
                                  BRACKET
                                  from £1.93
                                  from £1.93
                                  # 016
                                  MPN: 163020100
                                  FLAT WASHER
                                  from £1.08
                                  from £1.08
                                  # 017
                                  MPN: 322753601
                                  STEERING BOX STEEL SHEET GUARD
                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                  from £5.56
                                  from £5.56
                                  # 018
                                  MPN: 392770601
                                  RH POWER STEERING UNIT STEEL SHEET GUARD
                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
