maserati 418 / 4.24v / 430 propeller shaft, getrag parts diagram

012 - Propeller Shaft, Getrag

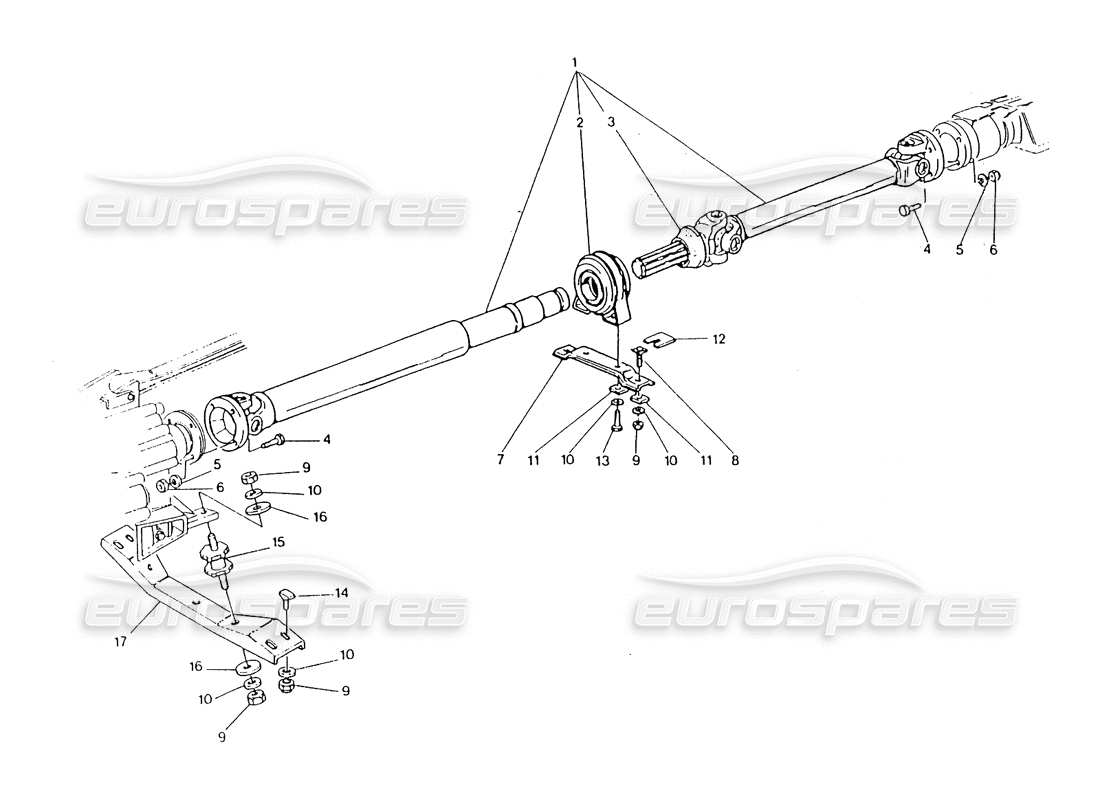

Maserati 418 / 4.24v / 430 Propeller Shaft, Getrag Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 326053102
PROPELLER SHAFT ASSEMBLY
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £471.64
from £471.64
# 002
MPN: 316020103
CENTRAL SUPPORT
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £684.52
from £684.52
# 003
MPN: 316020306
Dust bellows
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £4.64
from £4.64
# 004
MPN: 316020300
SCREW
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £13.83
from £13.83
# 005
MPN: 138410100
WASHER
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
# 006
MPN: 128360100
SELF LOCKING NUT
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
# 007
MPN: 316020330
CROSS MEMBER
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £4.64
from £4.64
# 008
MPN: 316020110
SCREW
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £1.16
from £1.16
# 009
MPN: 128350080
SELFLOCKING NUT
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
Supersession
Supersession
# 010
MPN: 163020080
WASHER
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £1.08
from £1.08
# 011
MPN: 316020334
PLATE
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £1.31
from £1.31
# 012
MPN: 316020336
PLATE
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £0.70
from £0.70
# 013
MPN: 101208020
SCREW
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
# 014
MPN: 314820303
SCREW
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £12.44
from £12.44
# 015
MPN: 324853120
SPRING MOUNT
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £16.91
from £16.91
This part replaces part number 314855119 - and 1 more. Click to view details
# 016
MPN: 314855306
WASHER
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £2.17
from £2.17
# 017
MPN: 324853305
SUPPORT BRACKET
VALID FOR 53 / 58 / 62 / 65 3V / 654V / 67 / 69 / 77 / 79
from £15.36
from £15.36
