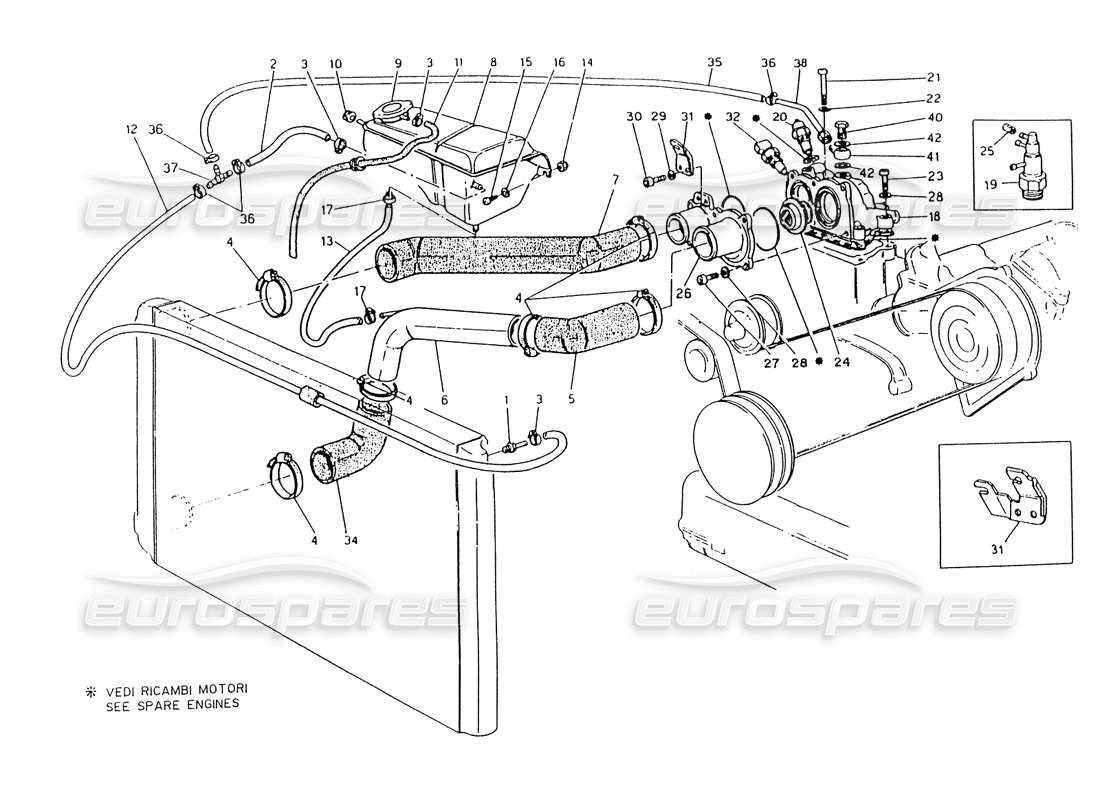

Maserati 418 / 4.24v / 430 Engine Cooling, 3V Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 314020328
        MANIFOLD FOR EXPANSION TANK
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £1.84
        from £1.84
        # 002
        MPN: 394050319
        SLEEVE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £4.16
        from £4.16
        # 003
        MPN: 186402016
        CLAMP
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 004
        MPN: 312020136
        CLAMP
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        Supersession
        Supersession
        # 005
        MPN: 324032320
        UPPER SLEEVE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £62.22
        from £62.22
        This part replaces part number 314053332
        # 006
        MPN: 314020107
        PIPE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £78.48
        from £78.48
        # 007
        MPN: 324032325
        SLEEVE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £7.89
        from £7.89
        # 008
        MPN: 554021102
        EXPANSION TANK
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £42.00
        from £42.00
        This part replaces part number 314020102
        # 009
        MPN: 554021103
        CAP
        from £5.46
        from £5.46
        # 010
        MPN: 53401311
        RING
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £0.70
        from £0.70
        # 011
        MPN: 314020316
        BREATHER PIPE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £1.80
        from £1.80
        This part replaces part number 313320325
        # 012
        MPN: 314020317
        PIPING
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £2.18
        from £2.18
        This part replaces part number 374000317
        # 013
        MPN: 314020318
        PIPING
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £20.85
        from £20.85
        # 014
        MPN: 128300060
        NUT
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        Supersession
        Supersession
        # 015
        MPN: 101206020
        SCREW
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 016
        MPN: 163010060
        FLAT WASHER
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 017
        MPN: 186402024
        CLAMP
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        Supersession
        Supersession
        # 018
        MPN: 314022355
        THERMOSTAT HOUSING
        Valid for 51
        from £17.15
        from £17.15
        # 019
        MPN: 312030127
        VACUUM SWITCH
        VALID FOR 58 / 59 / 77 / 78
        from £30.38
        from £30.38
        # 020
        MPN: 470042800
        WATER TEMPERATURE FEELER
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £13.35
        from £13.35
        This part replaces part number 313630102
        # 022
        MPN: 310620364
        GASKET
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £5.60
        from £5.60
        # 023
        MPN: 108006025
        SCREW
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 024
        MPN: 470045601
        WATER THERMOSTAT, 73
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £72.65
        from £72.65
        This part replaces part number 314020123
        # 025
        MPN: 312030441
        FILTER
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 026
        MPN: 314053358
        THERMOSTAT COVER
        not as spare part - use part number: 470045502
        Supersession
        Supersession
        # 026
        MPN: 470045502
        THERMOSTAT COVER
        (replaces: 314053358)
        from £14.18
        from £14.18
        This part replaces part number 314053358
        # 027
        MPN: 108006018
        SCREW
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 028
        MPN: 138410060
        SPRING WASHER
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 029
        MPN: 138410060
        SPRING WASHER
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 030
        MPN: 108006012
        SCREW
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £0.54
        from £0.54
        # 031
        MPN: 314638310
        PLATE, ACCELERATOR AND KICK DOWN CONTROL
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 031
        MPN: 318220304
        PLATE, ACCELERATOR SHEATH
        VALID FOR 51 / 58 / 65 3V / 67 / 77
        # 032
        MPN: 470079800
        WATER TEMPERATURE SWITCH
        from £64.11
        from £64.11
        # 034
        MPN: 394050323
        LOWER SLEEVE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        Supersession
        Supersession
        # 035
        MPN: 312020511
        SLEEVE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        Supersession
        Supersession
        # 036
        MPN: 314022359
        CLAMP
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £0.70
        from £0.70
        # 037
        MPN: 314022364
        T CONNECTION
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        Supersession
        Supersession
        # 038
        MPN: 314022125
        HOSE
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £3.94
        from £3.94
        # 040
        MPN: 312020510
        SCREW
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        from £2.68
        from £2.68
        This part replaces part number 193520 - and 1 more. Click to view details
        # 041
        MPN: 312020509
        SCREW UNION
        VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
        # 042
        MPN: 14453381
        RUBBER
        from £0.64
        from £0.64
