001.2 - Catalyzed Exhaust System, 2800 3V

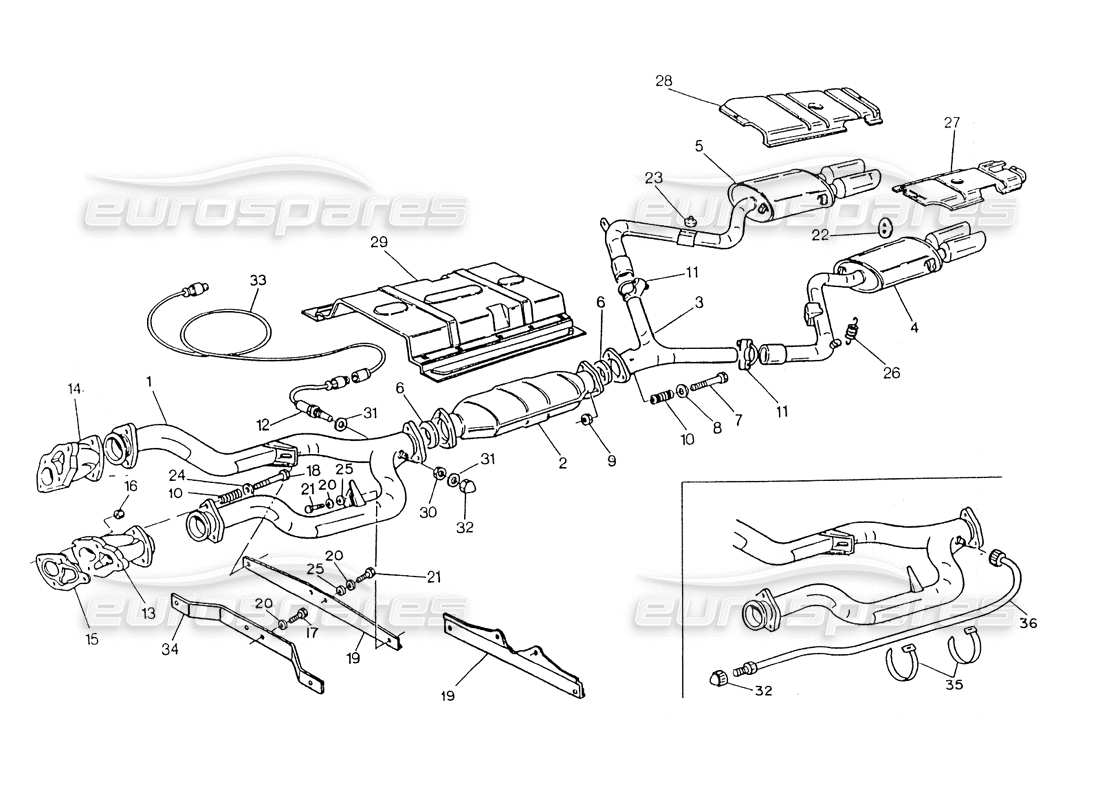

Maserati 418 / 4.24v / 430 Catalyzed Exhaust System, 2800 3V Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 329060104
FRONT EXHAUST PIPE
VALID FOR 58 / 59 / 77 / 78
from £690.71
from £690.71
# 002
MPN: 329060105
PAINT CATALYS
VALID FOR 58 / 59 / 77 / 79
from £264.11
from £264.11
# 003
MPN: 329060106
CENTRAL PIPE, ASSY
VALID FOR 58 / 59 / 77 / 80
from £17.84
from £17.84
# 004
MPN: 329053109
LH REAR SILENCER
VALID FOR 58 / 59 / 77 / 81
Supersession
Supersession

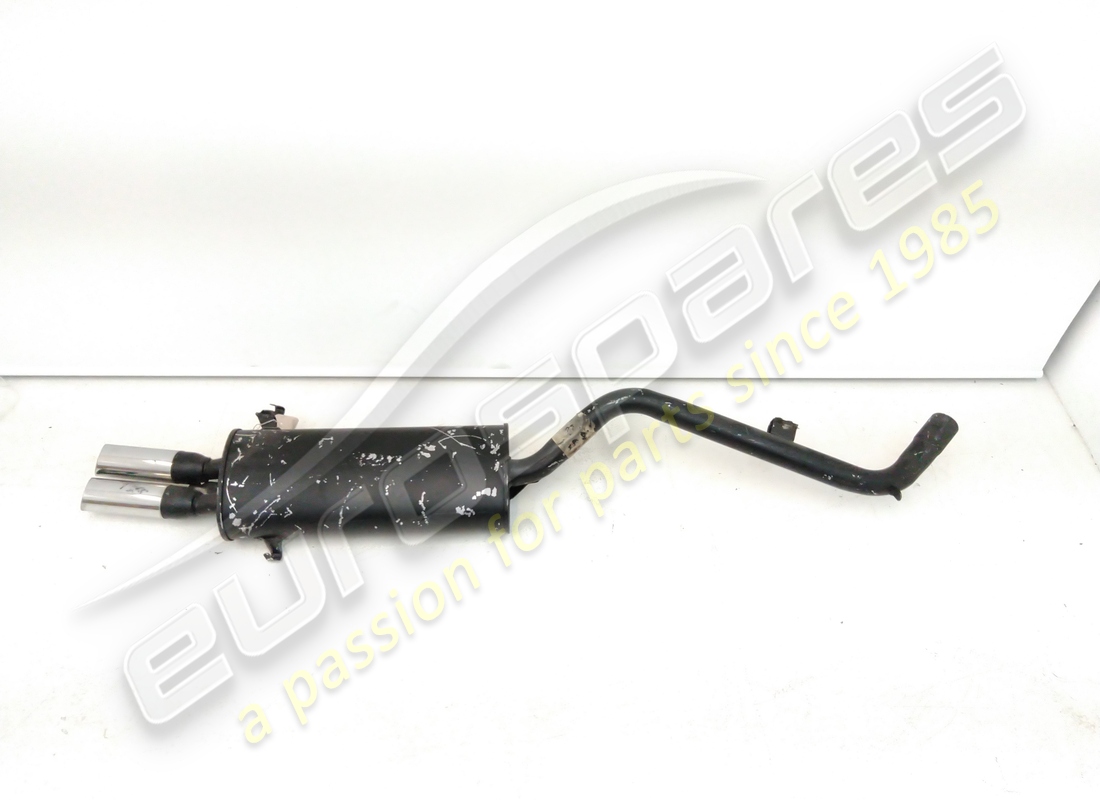

# 004
MPN: 329059109
LH REAR SILENCER
Valid for 59
from £192.19
from £192.19
This part replaces part number 329053109
# 005
MPN: 329053110
RH REAR SILENCER
VALID FOR 58 / 59 / 77 / 80
Supersession
Supersession
# 005
MPN: 329059110
RH REAR SILENCER
VALID FOR 59 ( AUTOMATIC TRANSMISSION ONLY SWITZERLAND
from £292.89
from £292.89
This part replaces part number 329053110
# 006
MPN: 339050305
SEALING RING
VALID FOR 58 / 59 / 77 / 80
from £10.29
from £10.29
# 007
MPN: 14421074
SCREW
VALID FOR 58 / 59 / 77 / 81
from £4.91
from £4.91
This part replaces part number 14421071
# 008
MPN: 14496601
FLAT WASHER
VALID FOR 58 / 59 / 77 / 82
Supersession
Supersession
# 009
MPN: 125100100
NUT
VALID FOR 58 / 59 / 77 / 83
# 010
MPN: 319030313
SPRING
VALID FOR 58 / 59 / 77 / 84
from £1.43
from £1.43
# 011
MPN: 329050008
CLAMP
VALID FOR 58 / 59 / 77 / 85
# 012
MPN: 473082340
LAMBDA PROBE
VALID FOR 58 / 59 / 77 / 86
from £493.64
from £493.64
# 013
MPN: 467361901
LH MANIFOLD
VALID FOR 58 / 59 / 77 / 87
from £99.83
from £99.83
# 014
MPN: 467361801
RH MANIFOLD
VALID FOR 58 / 59 / 77 / 88
from £99.83
from £99.83
# 015
MPN: 580362400
GASKET
VALID FOR 58 / 59 / 77 / 89
from £9.45
from £9.45
This part replaces part number 342000303
# 016
MPN: 14058519
COPPER PLATED NUT
VALID FOR 58 / 59 / 77 / 90
from £0.51
from £0.51
This part replaces part number 312051309 which we have in stock
# 017
MPN: 101200028
SCREW
Valid for 59 / 78
# 018
MPN: 349000301
SCREW
VALID FOR 58 / 59 / 77 / 90
from £3.19
from £3.19
# 019
MPN: 319020107
SUPPORT (ZF TRANSM.)
Valid for 58 / 77
from £1.43
from £1.43
# 019
MPN: 329053107
SUPPORT (GETRAG TRANSM.)
Valid for 58 / 78
from £4.75
from £4.75
# 020
MPN: 138200080
WASHER
VALID FOR 58 / 59 / 77 / 78
# 021
MPN: 101208016
SCREW
Valid for 58 / 77
# 021
MPN: 101208018
SCREW
Valid for 59 / 78
# 022
MPN: 319020300
RUBBER RING
VALID FOR 58 / 59 / 77 / 78
from £1.62
from £1.62
# 024
MPN: 14496601
FLAT WASHER
VALID FOR 58 / 59 / 77 / 79
Supersession
Supersession
# 025
MPN: 163020080
WASHER
Valid for 58 / 78
from £1.09
from £1.09
# 027
MPN: 329060119
LH SCREEN
VALID FOR 58 / 59 / 77 / 78
from £38.32
from £38.32
# 028
MPN: 329060120
RH SCREEN
VALID FOR 58 / 59 / 77 / 79
from £38.32
from £38.32
# 029
MPN: 329060118
CENTRAL SCREEN
VALID FOR 58 / 59 / 77 / 80
from £14.39
from £14.39
# 030
MPN: 319030329
NUT
VALID FOR 58 / 59 / 77 / 81 (NOT SUPPLIED)
from £0.78
from £0.78
# 031
MPN: 134700105
WASHER
VALID FOR 58 / 59 / 77 / 82
from £1.09
from £1.09
# 032
MPN: 319030328
CUP NUT
VALID FOR 58 / 59 / 77 / 83
from £1.64
from £1.64
# 033
MPN: 323760108
CABLE FOR LAMBDA FEELER
VALID FOR 58 / 59 / 77 / 84
from £9.05
from £9.05
# 034
MPN: 319055108
SUPPORT (GHP22 AUTOMATIC TRANSM.)
Valid for 59 / 78
from £4.59
from £4.59
# 035
MPN: 186500400
COPPER PLATED CLAMP
VALID FOR 58 / 59 ( ONLY SWITZERLAND )
# 036
MPN: 349004112
GAS ANALYSIS DRAWING PIPE
VALID FOR 58 / 59 ( ONLY SWITZERLAND )
