001.1 - Not Catalized Exhaust System, 3 & 4V

Maserati 418 / 4.24v / 430 Not Catalized Exhaust System, 3 & 4V Parts Diagram

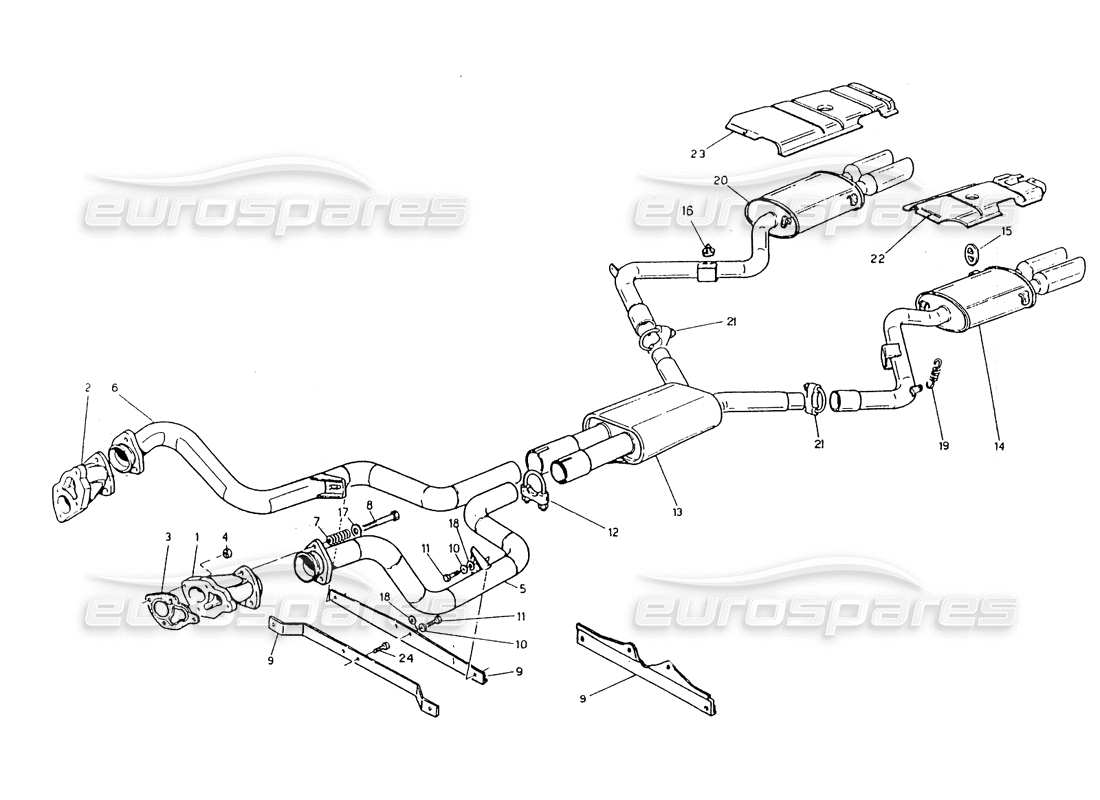

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 312020301
LH MANIFOLD
Valid for 65 4V
from £90.38
from £90.38
# 001
MPN: 467361901
LH MANIFOLD
VALID FOR 58 / 59 / 67 / 68
from £98.97
from £98.97
# 002
MPN: 312020302
RH HANIFOID
Valid for 65 4V
from £90.38
from £90.38
# 002
MPN: 467361801
RH MANIFOLD
VALID FOR 58 / 59 / 67 / 68
from £98.97
from £98.97
# 003
MPN: 312020303
GASKET
from £20.06
from £20.06
# 003
MPN: 580362400
GASKET
VALID FOR 58 / 59 / 67 / 68
from £9.45
from £9.45
This part replaces part number 342000303
# 004
MPN: 14058519
COPPER PLATED NUT
VALID FOR 58 / 59 / 65 4V / 67 / 68
from £0.51
from £0.51
This part replaces part number 312051309 which we have in stock
# 005
MPN: 319053101
LH FRONT TUBE
Valid for 65 4V
from £26.92
from £26.92
# 005
MPN: 329071101
LH FRONT TUBE
VALID FOR 58 / 59 / 67 / 68
from £21.91
from £21.91
# 006
MPN: 319053102
RH FRONT TUBE
Valid for 65 4V
from £29.23
from £29.23
# 006
MPN: 329071102
RH FRONT TUBE
VALID FOR 65 4V / 67 / 68
from £75.88
from £75.88
# 007
MPN: 319020303
SPRING
Valid for 58 / 59
from £2.96
from £2.96
# 007
MPN: 319030313
SPRING
VALID FOR 58 / 59 / 67 / 68
from £1.41
from £1.41
# 008
MPN: 14302231
SCREW
See also 319020301
from £0.84
from £0.84
This part replaces part number 319020301
# 008
MPN: 319020301
SCREW
Valid for 58 / 65 4V / 67
Supersession
Supersession
# 008
MPN: 349000301
SCREW
Valid for 65 4V
from £3.17
from £3.17
# 009
MPN: 319020107
SUPPORT (ZF TRANSM.)
Valid for 59 / 68
from £1.41
from £1.41
# 009
MPN: 319055108
SUPPORT (GHP22 AUTOMATIC TRANSM.)
VALID FOR 58 / 59 / 65 4V / 67 / 68
from £4.56
from £4.56
# 009
MPN: 329053107
SUPPORT (GETRAG TRANSM.)
from £4.72
from £4.72
# 010
MPN: 138200080
WASHER
Valid for 58 / 65 4V / 67
# 011
MPN: 101208016
SCREW
Valid for 59 / 68
# 011
MPN: 101208018
SCREW
VALID FOR 58 / 59 / 67 / 68
# 012
MPN: 329056007
CLIP
VALID FOR 58 / 59 / 67 / 69
from £1.16
from £1.16
# 013
MPN: 329053105
CENTRAL PIPE, ASSY
VALID FOR 58 / 59 / 65 4V / 67 / 68
from £220.28
from £220.28
# 013
MPN: 329056105
CENTRAL PIPE, ASSY
Valid for 65 4V
from £21.14
from £21.14
# 014
MPN: 329053109
LH REAR SILENCER
VALID FOR 58 / 59 / 65 4V / 67 / 69
Supersession
Supersession
# 015
MPN: 319020300
RUBBER RING
VALID FOR 58 / 59 / 65 4V / 67 / 70
from £1.61
from £1.61

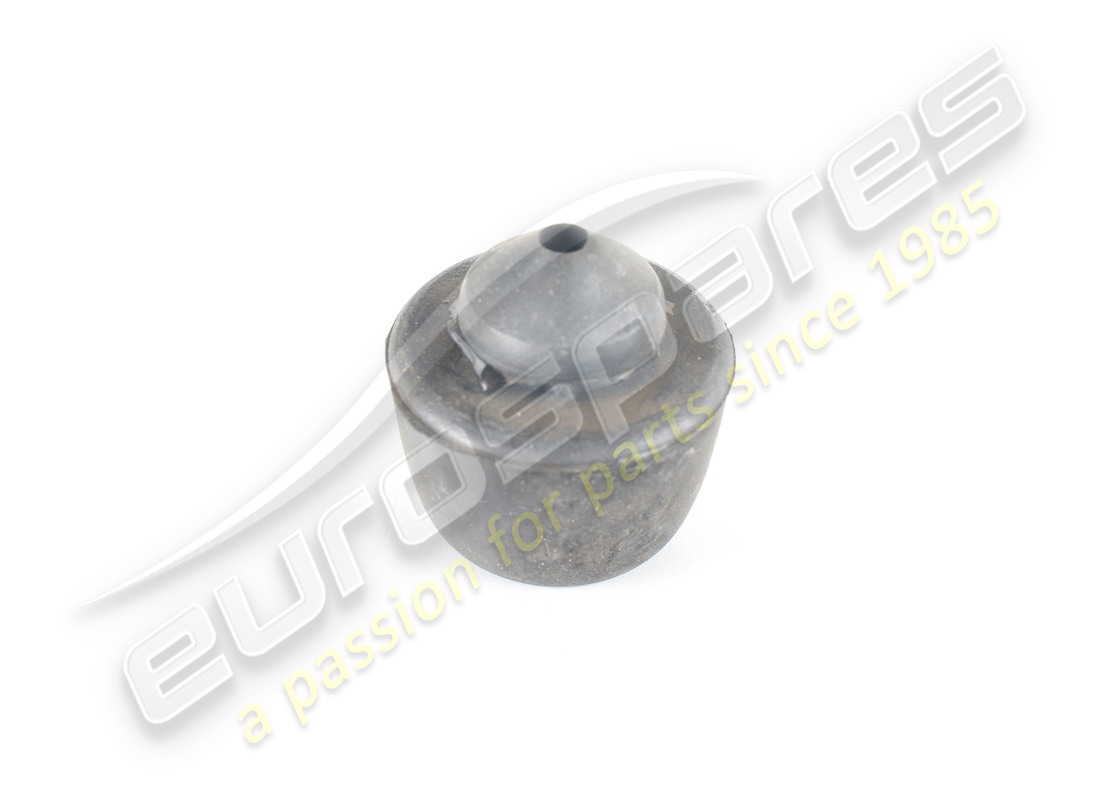

# 016
MPN: 312120300
BUFFER
VALID FOR 58 / 59 / 65 4V / 67 / 71
from £2.09
from £2.09
# 017
MPN: 135900084
WASHER
Valid for 58 / 65 4V / 67
# 018
MPN: 163020080
WASHER
VALID FOR 58 / 59 / 65 4V / 67 / 69
from £1.08
from £1.08
# 019
MPN: 319030312
SPRING
VALID FOR 58 / 59 / 65 4V / 67 / 70
from £1.41
from £1.41
# 020
MPN: 329053110
RH REAR SILENCER
VALID FOR 58 / 59 / 65 4V / 67 / 71
Supersession
Supersession
# 021
MPN: 329056008
CLAMP
Valid for 65 4V
from £2.31
from £2.31
# 021
MPN: 329056008
CLAMP
VALID FOR 58 / 59 / 65 4V / 67 / 71
from £2.31
from £2.31
# 022
MPN: 329060119
LH SCREEN
VALID FOR 58 / 59 / 65 4V / 67 / 72
from £37.98
from £37.98
# 023
MPN: 329060120
RH SCREEN
VALID FOR 58 / 59 / 65 4V / 67 / 68
from £37.98
from £37.98
# 024
MPN: 101208028
SCREW
Valid for 59 / 68
