maserati 228 switches and steering parts diagram

063 - Switches and Steering

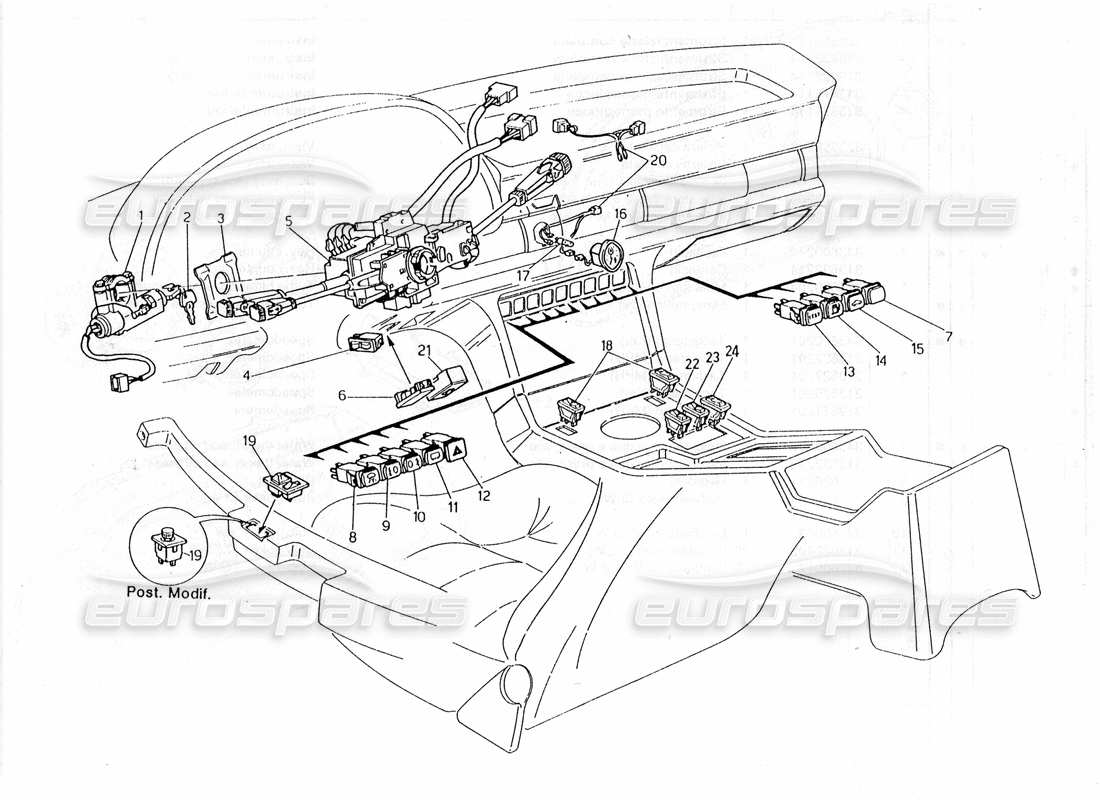

Maserati 228 Switches and Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 313420100
                                          Steering
                                          Supersession
                                          Supersession
                                          # 002
                                          MPN: 313420102
                                          Key
                                          Supersession
                                          Supersession
                                          # 003
                                          MPN: 313320303
                                          SWITCH PROTECTION
                                          from £1.93
                                          from £1.93
                                          # 004
                                          MPN: 313320112
                                          PARKING LIGHTS SWITCH
                                          from £8.16
                                          from £8.16

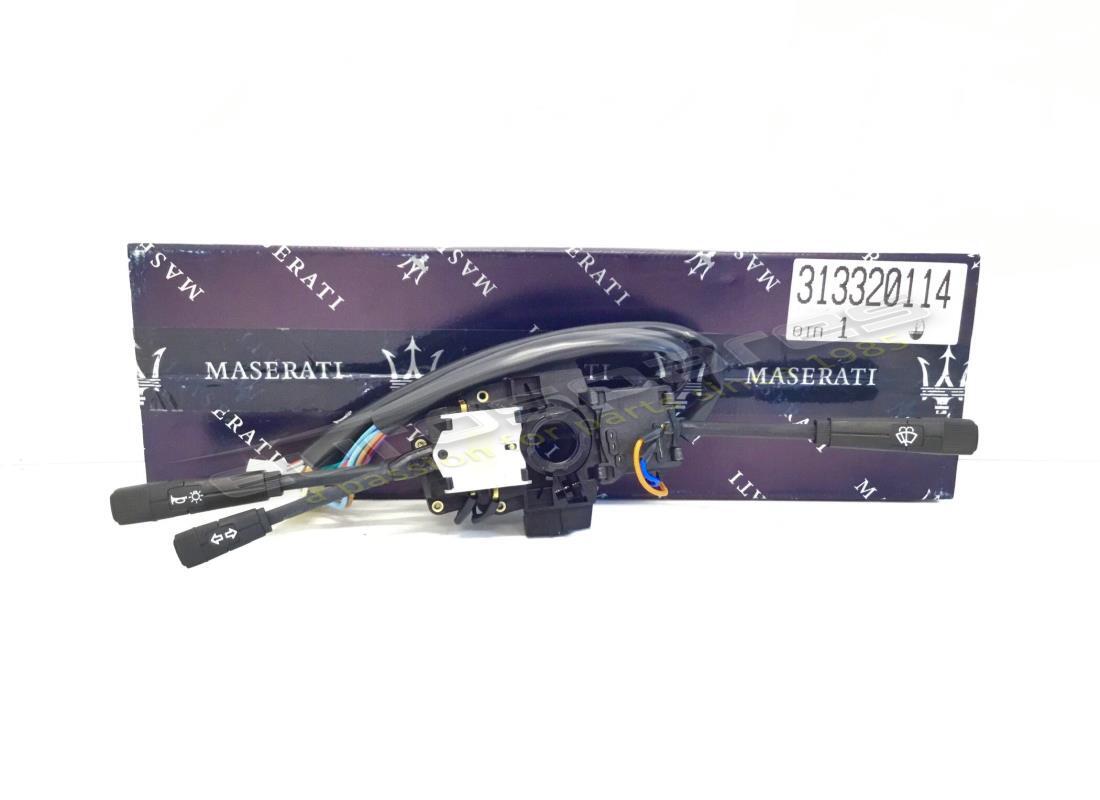

                                          # 005
                                          MPN: 313320114
                                          SWITCH
                                          from £225.75
                                          from £225.75
                                          # 006
                                          MPN: 323350308
                                          PLUG
                                          from £1.07
                                          from £1.07
                                          This part replaces part number 323320308
                                          # 007
                                          MPN: 323320301
                                          PLUG
                                          Supersession
                                          Supersession
                                          # 008
                                          MPN: 323320120
                                          WATCH LIGHTING SWITCH
                                          from £2.18
                                          from £2.18
                                          # 009
                                          MPN: 323320125
                                          FRONT FOG LIGHT SWITCH
                                          from £6.38
                                          from £6.38
                                          # 010
                                          MPN: 323320126
                                          REAR FOG LIGHT SWITCH
                                          from £0.81
                                          from £0.81
                                          # 011
                                          MPN: 323320127
                                          HEATED BACKLIGHT SWITCH
                                          from £0.81
                                          from £0.81
                                          # 012
                                          MPN: 323320123
                                          HAZARD WARNING SWITCH
                                          from £7.91
                                          from £7.91
                                          # 013
                                          MPN: 323320141
                                          TEST SWITCH
                                          from £2.12
                                          from £2.12
                                          # 014
                                          MPN: 323320122
                                          FILLER FLAP SWITCH
                                          from £21.40
                                          from £21.40
                                          # 015
                                          MPN: 323320124
                                          TRUNK OPENING SWITCH
                                          from £1.23
                                          from £1.23
                                          # 016
                                          MPN: 313620117
                                          WATCH 12V
                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
                                          from £453.06
                                          from £453.06
                                          This part replaces part number 313620109
                                          # 016
                                          MPN: 313627109
                                          WATCH
                                          Pre modif. - Valid for Gb (manual), GB (automatic), Australia (manual), Australia (automatic)
                                          Supersession
                                          Supersession
                                          # 016
                                          MPN: 313670119
                                          WATCH 12V.
                                          After modif. - Valid for Gb (manual), GB (automatic), Australia (manual), Australia (automatic)
                                          from £319.20
                                          from £319.20
                                          This part replaces part number 313627109
                                          # 017
                                          MPN: 313620110
                                          LIGHT AND BULB
                                          from £0.84
                                          from £0.84
                                          # 018
                                          MPN: 323350150
                                          ELECTRIC WINDOW LOCKING SWITCH
                                          from £6.65
                                          from £6.65
                                          This part replaces part number 323320150
                                          # 019
                                          MPN: 343300133
                                          RH AND LH MIRROR COMMUTATOR
                                          After modif.
                                          from £16.84
                                          from £16.84
                                          This part replaces part number 343300181
                                          # 019
                                          MPN: 343300181
                                          RH and LH control mirror switch
                                          pre modif.
                                          Supersession
                                          Supersession
                                          # 020
                                          MPN: 313620112
                                          Watch lighting wiring harness
                                          Pre modif. - Valid for Gb (manual), GB (automatic), Australia (manual), Australia (automatic)
                                          # 020
                                          MPN: 313620116
                                          Watch lighting wiring harness
                                          After modif.
                                          from £6.14
                                          from £6.14
                                          # 021
                                          MPN: 323120110
                                          HEADLAMP ADJUSTING CONTROL
                                          Valid for Italy *manual), Switzerland (manual), Switzerland (automatic), GB (manual), GB (automatic), Australia (manual), Australia (automatic)
                                          from £33.00
                                          from £33.00
                                          # 021
                                          MPN: 53236335
                                          PLUG
                                          Valid for Switzerland (automatic), USA (manual)
                                          from £0.47
                                          from £0.47
                                          # 022
                                          MPN: 323350153
                                          REAR SEAT SWITCH
                                          from £4.15
                                          from £4.15
                                          This part replaces part number 323320153
                                          # 023
                                          MPN: 323350151
                                          FRONT SEAT MOV. SWITCH
                                          from £3.93
                                          from £3.93
                                          This part replaces part number 323320151
                                          # 024
                                          MPN: 323350152
                                          Rear seat mov. switch
                                          from £1.93
                                          from £1.93
                                          This part replaces part number 323320152
