maserati 228 transmission - inside controls parts diagram

027 - Transmission - Inside Controls

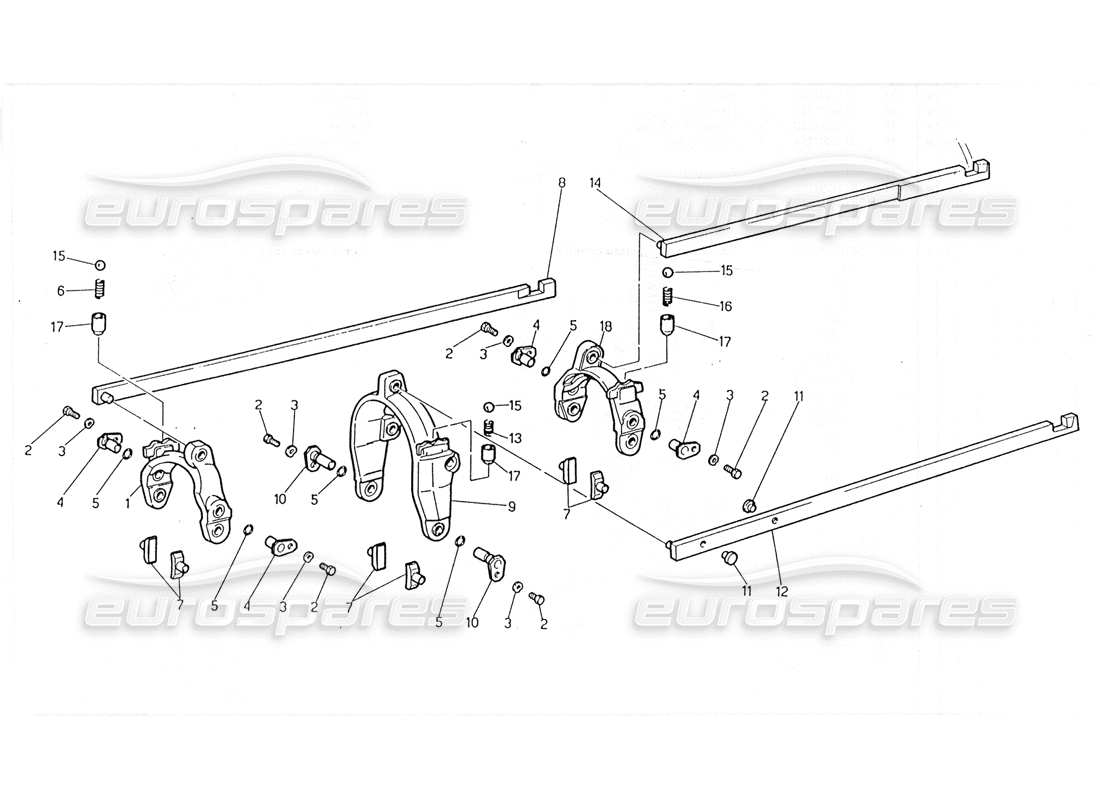

Maserati 228 Transmission - Inside Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315220358
FORK SPEED SELECTION 4TH AND 5TH GEAR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £39.35
from £39.35
# 002
MPN: 315220374
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £2.46
from £2.46
# 003
MPN: 315220330
SPRING WASHER
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.31
from £1.31
# 004
MPN: 315220357
GUIDE PIPE
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £15.47
from £15.47
# 005
MPN: 315220332
RING
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £0.68
from £0.68
# 006
MPN: 315220373
SPRING
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £0.98
from £0.98
# 007
MPN: 315220360
SLIDING BLOCKS
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £29.39
from £29.39
# 008
MPN: 315220361
GEARSHIFT 4TH AND 5TH GEAR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £21.85
from £21.85
# 009
MPN: 315220362
FORK SPEED SELECTION 2ND AND 3RD GEAR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £89.23
from £89.23
# 010
MPN: 315220368
GUIDE PIN
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 011
MPN: 315220364
PIN
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.85
from £1.85
# 012
MPN: 315220365
GEARSHIFT 2ND AND 3RD GEAR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £18.92
from £18.92
# 013
MPN: 315220372
SPRING
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.40
from £1.40
# 014
MPN: 315220366
GEARSHIFT 1ST AND REVERSE GEAR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £131.72
from £131.72
# 015
MPN: 315220367
BALL
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £0.68
from £0.68
# 016
MPN: 315220371
SPRING
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £0.98
from £0.98
# 017
MPN: 315220369
PIN
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £20.09
from £20.09
# 018
MPN: 315220370
FORK SPEED SELECTION 1ST AND REVERSE GEAR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £149.63
from £149.63
